CSR-20 & CSR-40, September 1999
Specifications Physical Specifications 1-9
Physical Specifications (Continued)

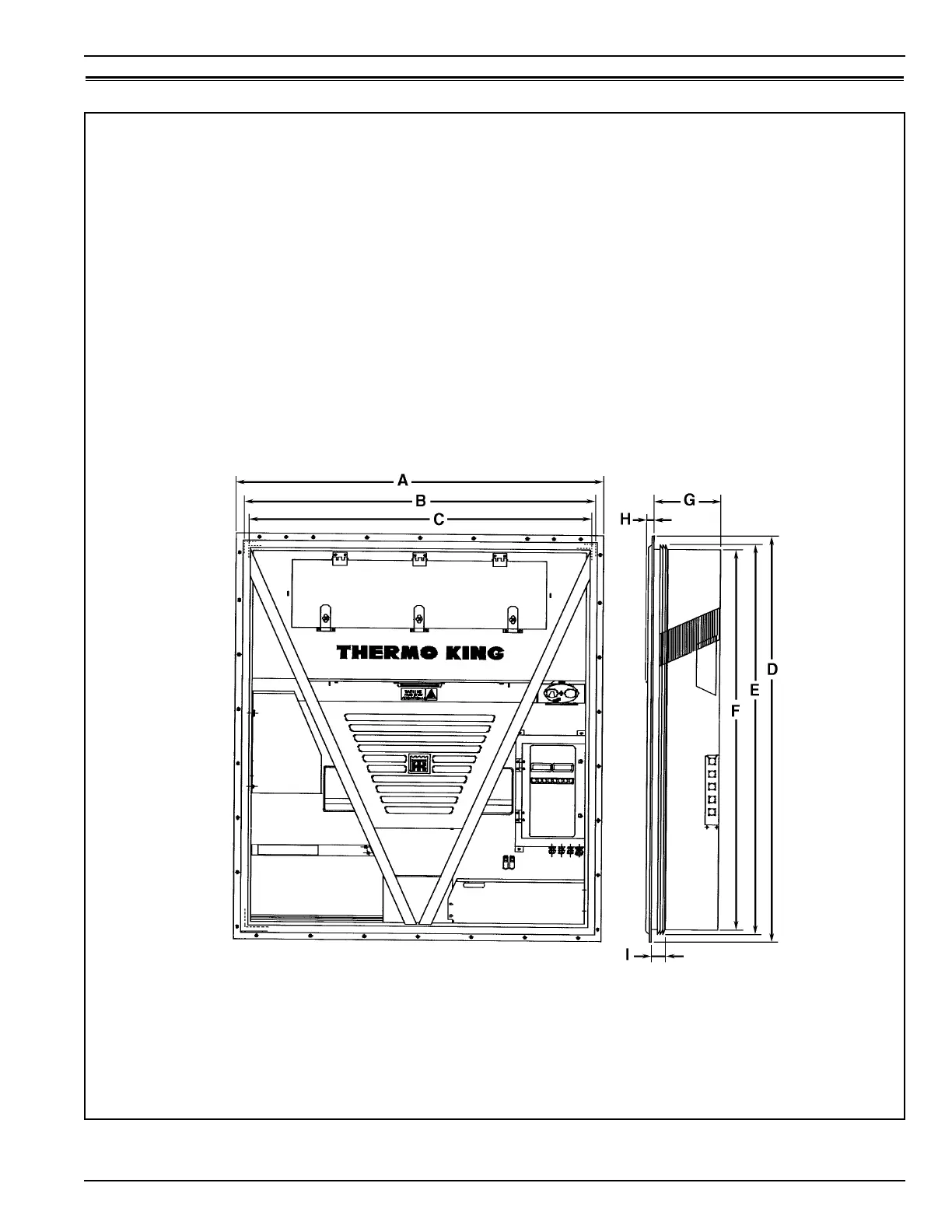

Unit Dimensions: A = Flange Width 2025.5 mm (79.74 in.)
B = Gasket Width 1935 mm (76.18 in.)
C = Unit Width 1894 mm (74.57 in.)
D = Flange Height 2235.2 mm (88.00 in.)
E = Gasket Height 2140 mm (84.25 in.)
F = Unit Height 2094 mm (82.44 in.)
G = Maximum Protrusion 37 mm (1.46 in.) from back of flange
H = Unit Depth CSR-20SL: 335.0 mm (13.18 in.) from back of flange
CSR-40SL: 378.0 mm (14.88 in.) from back of flange
CSR-40: 420.0 mm (16.54 in.) from back of flange
I = Gasket Depth 72 mm (2.83 in.) from back of flange
