Operating Instructions Premium HMI 6-3
CONTROLLER DESCRIPTION
The Premium Truck HMI (Human/Machine Interface) Control Panel is available as an option on TSR-2/3 Truck applications.
It is used to operate the unit, display unit information and access all TSR-2/3 Maintenance and Guarded Access Menus. The
Premium HMI Control Panel communicates with the base controller via the CAN (Controller Area Network) bus. It is connected
to the base controller via CAN Connector J14 on the interface board. The Premium HMI Control Panel is typically located in
the vehicle driver's compartment. It may be installed in the truck instrument panel using a DIN mounting ring or under the
instrument panel using an under dash mounting kit.
Premium HMI Control Panel Premium Display
ZIZI
SPECTRUM - Premium HMI Control Panel Display
The HMI control panel consists of a display and 8 touch-sensitive keys.
The display is capable of showing both text and graphics.
The keys on the left and right sides of the display are dedicated single function "hard" keys.
The four keys under the display are "soft" keys. The functions of these soft keys change depending on the operation being
performed. If a soft key is active the current key function is shown in the display directly above the key.

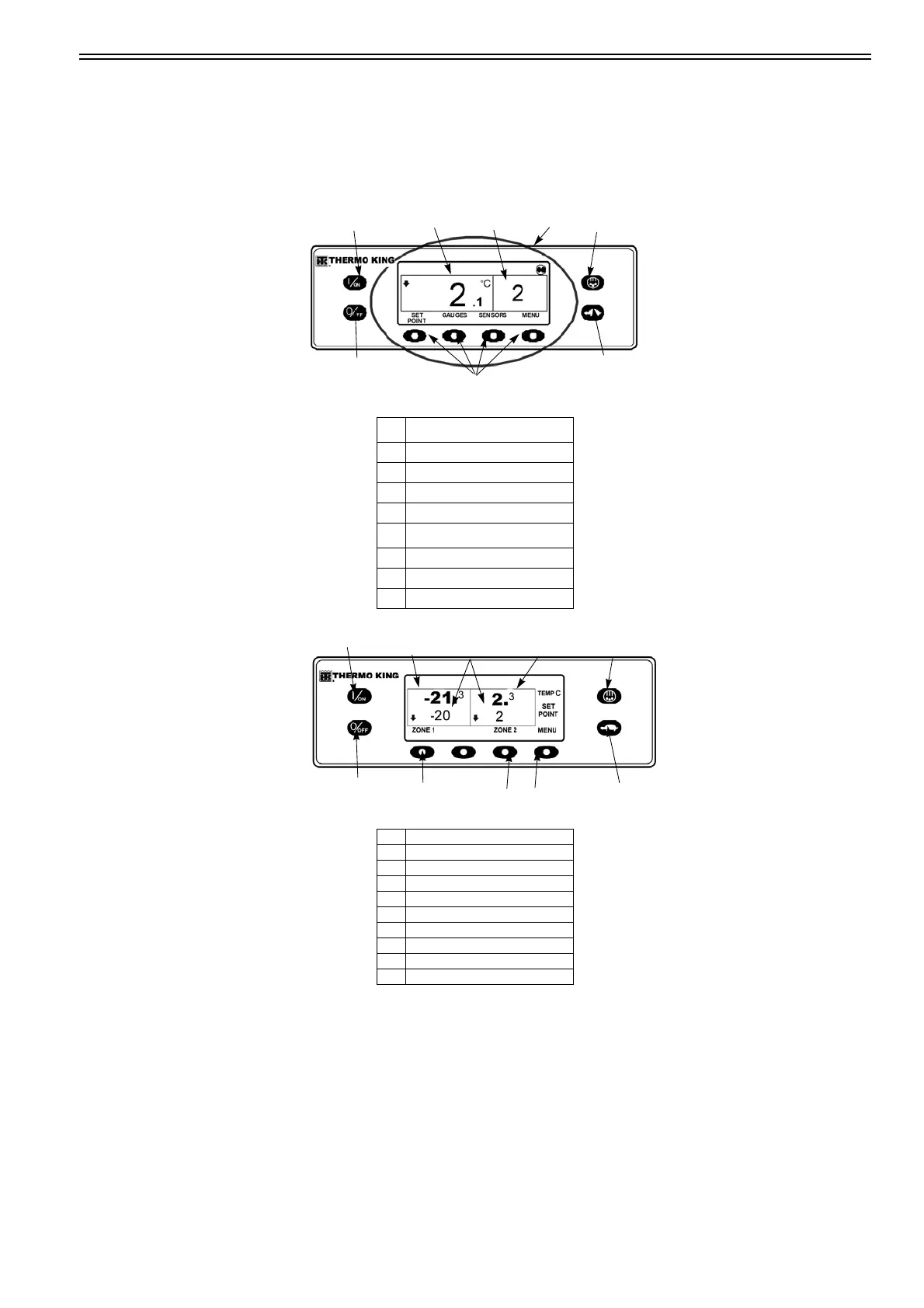

Hard Keys
1. On Key
2. Off Key
3. Defrost
4. High Speed Lockout
5. Soft Keys
6. Box Temperature
7. Setpoint
8. Display
1. On Key
2. Off Key
3. Defrost
4. High Speed Lockout
5. Zone 1 Soft Key
6. Box Temperature
7. Setpoints
8. Zone 2 Display
9. Zone 2 Soft Key
10. Menu Soft Key
To Next Page
