BTH ULTRA Electric Boilers Installation & Operation manual (Revision: May 2015)

Table 2 : Boiler connections and dimensions (12-24 KW)

Connections

Inlet (return) 1 “ NPT Fem

Outlet (supply) 1 “ NPT Fem

Safety valve 1“reduced to 3/4 “ NPT Fem

Draining valve 1“reduced to 3/4 “ NPT Fem

Shipping weight 63 lbs

Item

Dimension (inches)

A 21-1/2

B 9

C 11-3/4

D 3-5/8

E 2-3/8

F 14-3/4

G 5

H 9-3/4

I 20

J 1-1/2

Table 3 : Boiler connections and dimensions (27-36 KW)

Connections

Inlet (return) 1 ¼ “ NPT Fem

Outlet (supply) 1 ¼ “ NPT Fem

Pressure relief valve

1 ¼“reduced to 3/4 NPTFem

Drain valve 1 ¼“reduced to 3/4NPT Fem

Shipping weight 75 lbs

Item

Dimension (inches)

A 21-1/2

B 11

C 11-3/4

D 3-1/2

E 2-3/4

F 14-1/4

G 7

H 11-5/8

I 20

J 1-3/4

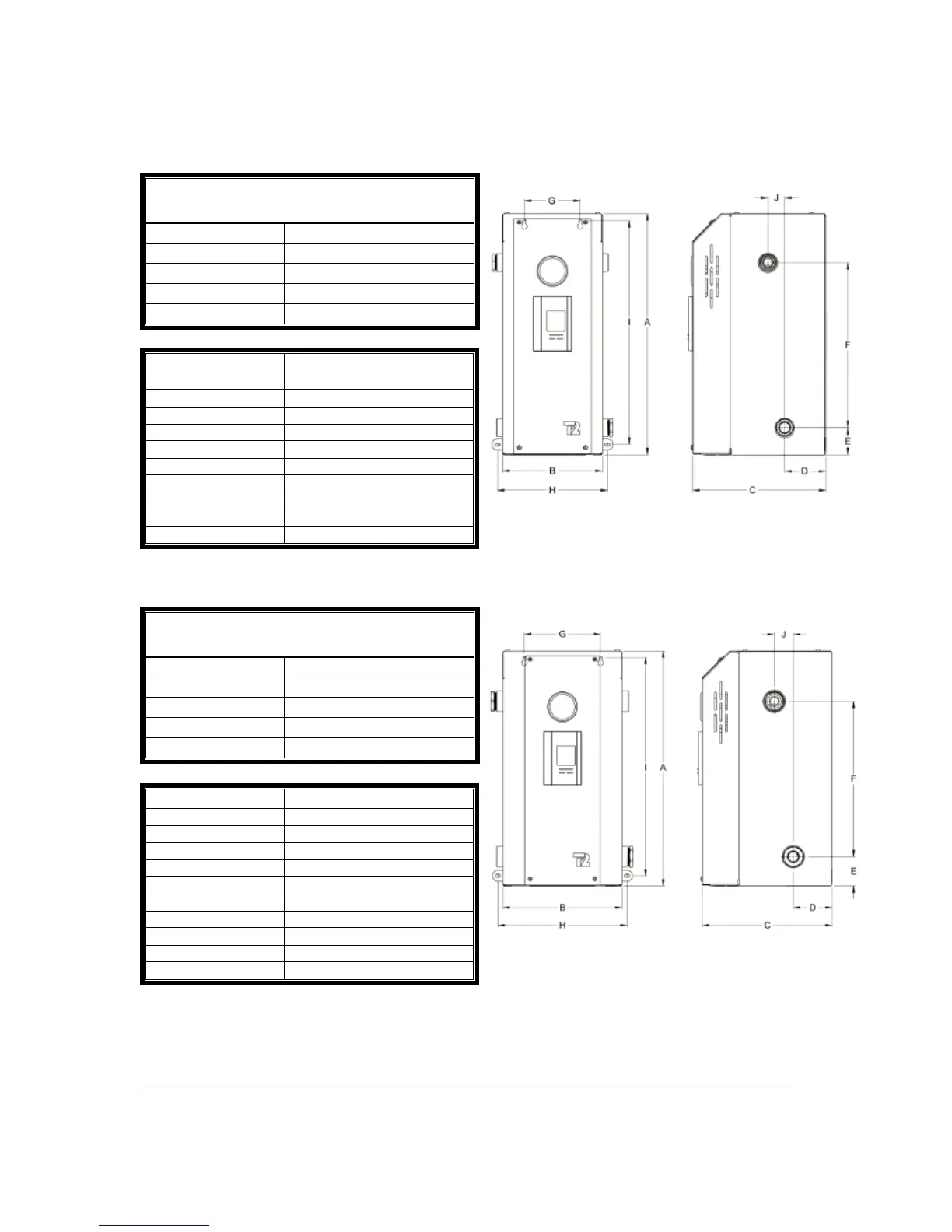

Figure 1 : Boiler dimensions (12-24 KW)

Figure 2 : Boiler dimensions (27-36 KW)
