THERMOLYNE F6010 - Page 8

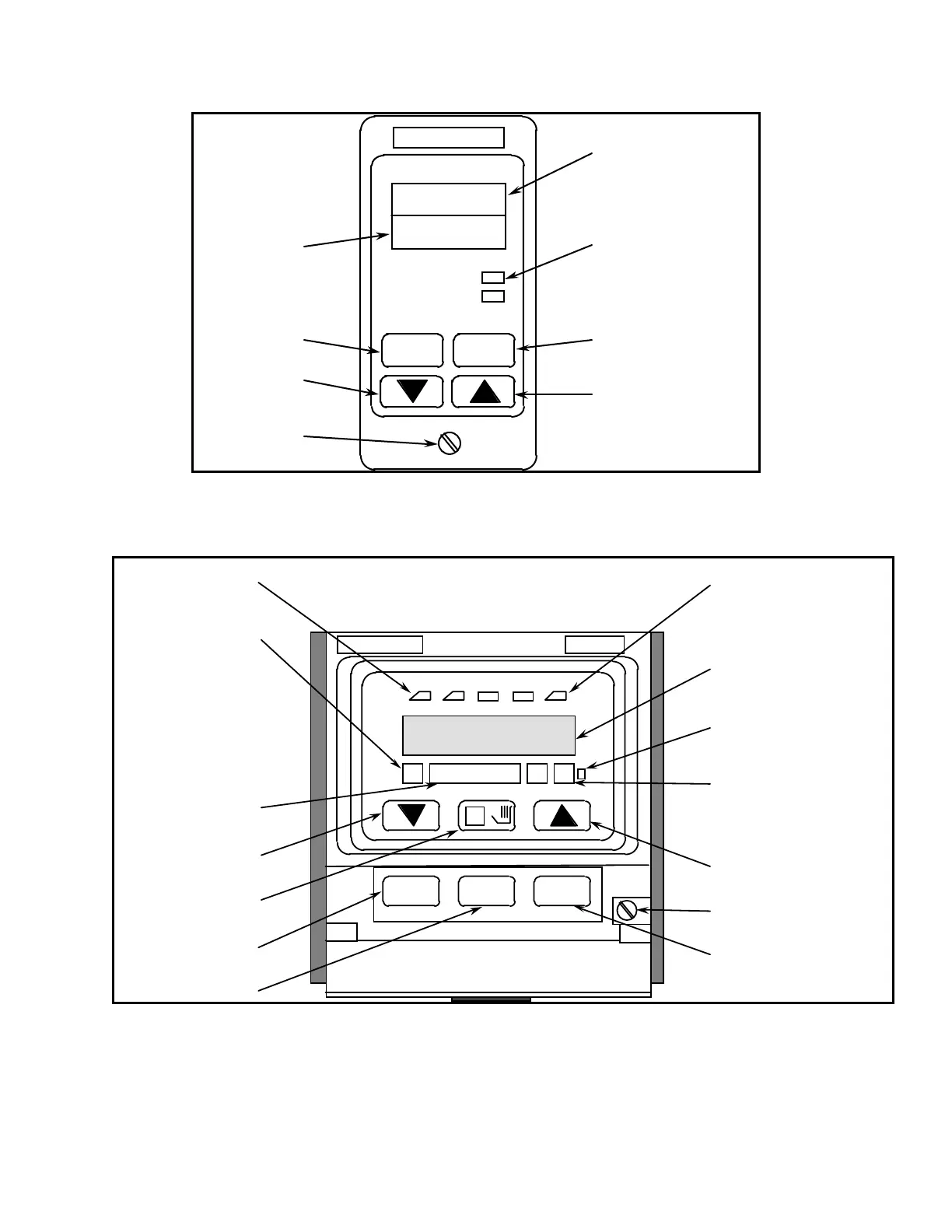

8
Thermolyne
PARA/M
OPI
OP2
PROCESS VARIABLE
(SOFTWARE VERSION
ON POWER UP)
OUTPUT POWER
INDICATOR
SCROLL BUTTON OF ADJUSTABLE
PARAMETERS
UP BUTTON
SECONDARY DISPLAY
NONFUNCTIONAL
DOWN BUTTON
SCREW RETAINING
INSTRUMENT IN
SLEEVE
Figure 3
Programmable (2 Ramp & 2 Dwell)
ºC
Thermolyne
RUN
HOLD
REM P
ADAPTIVE OR
SELF TUNE
SELECTED (A-T)
PROCESS VARIABLE
(SOFTWARE VERSION
ON POWER UP)
DIGITAL
COMMUNICATIONS
CONDITION OF PROGRAM,
RAMP OR DWELL AND IF
PROGRAM IS HELD, RAMP
DWELL SEGMENT CURRENTLY
RUNNING
UP BUTTON
SCREW RETAINING
INSTRUMENT IN
SLEEVE
SCROLL BUTTON
ALARM
ACTIVE
(ALI)
PARAMETER SELECTED
ON SECONDARY
DISPLAY:
SP = SETPOINT
OP = OUTPUT POWER
TIME = TIME
REMAINING
IN PROGRAM
SECONDARY DISPLAY
DOWN BUTTON
NONFUNCTIONAL
RUN/HOLD BUTTON
NONFUNCTIONAL
Figure 4
Multi-Programmable Control (8 Ramp & 8 Dwell)
