Thermopatch HS3E - Introduction; What Did You Receive?; Machine Specifications

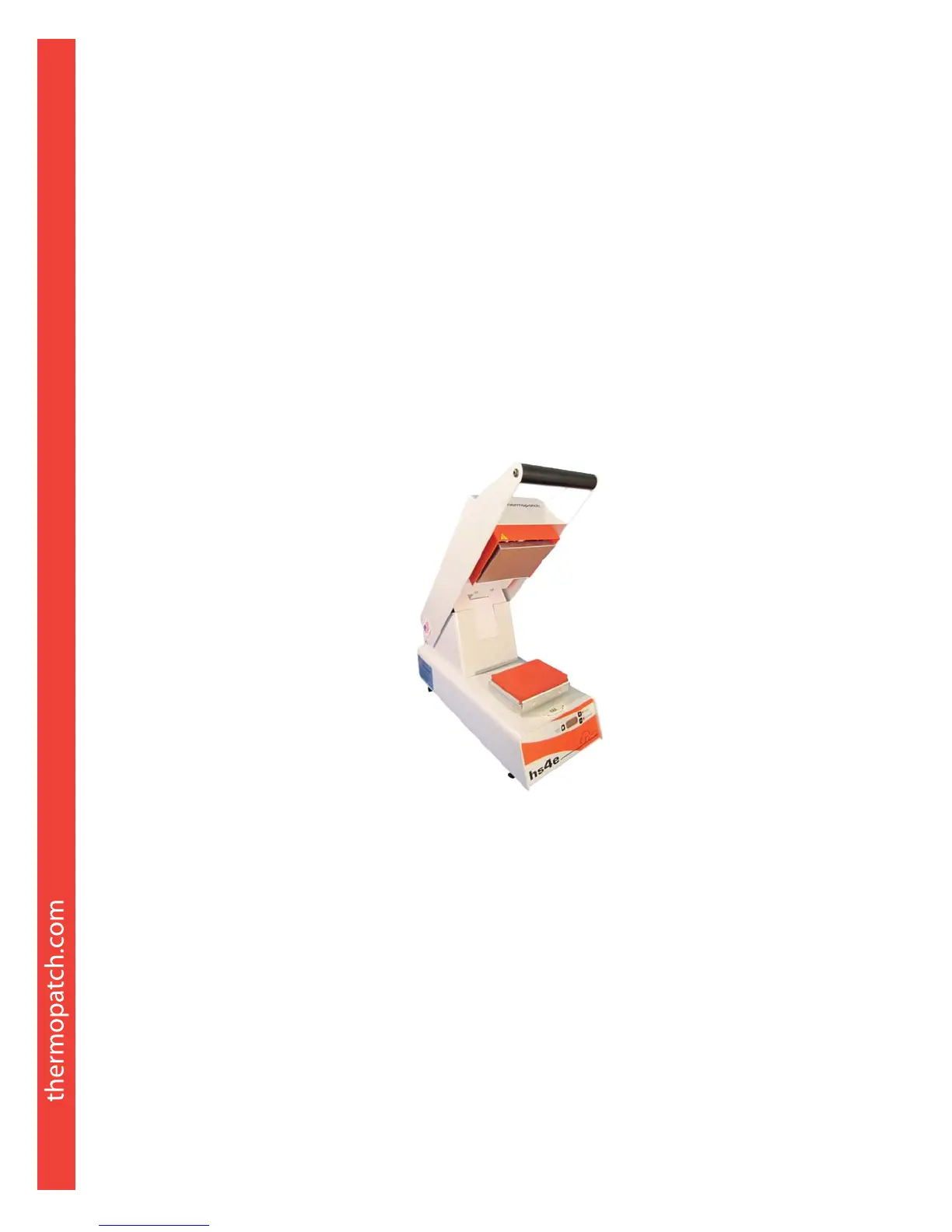

The HS3E and HS4E heat seal machines provide the heat, time and pressure
required for the application of a wide variety of Thermopatch products including
mending materials, emblems, label tapes and transfers.
1.1 What Did You Receive?
HS3E or HS4E Heat-Seal Machine Quick Start Guide
Line Power Cord
CD-ROM with Instruction Manual
1.2 Machine Specifications
Width: 7.5" (19 cm)
Length: 20.4" (52 cm)
Height: (Opened): 19.3" (49 cm)
(Closed): 9.3" (24 cm)
Sealing Platen: 3.75" x 4.75" (9.5 cm x 12 cm)
Time: 0 to 30 seconds
Heat Range: 69 to 446°F (20 to 230°C)
Electrical Requirements: 5.6 Amps @ 110 VAC, 50/60 HZ
2.8 Amps @ 220 VAC, 50/60 HZ
1. Introduction
