5

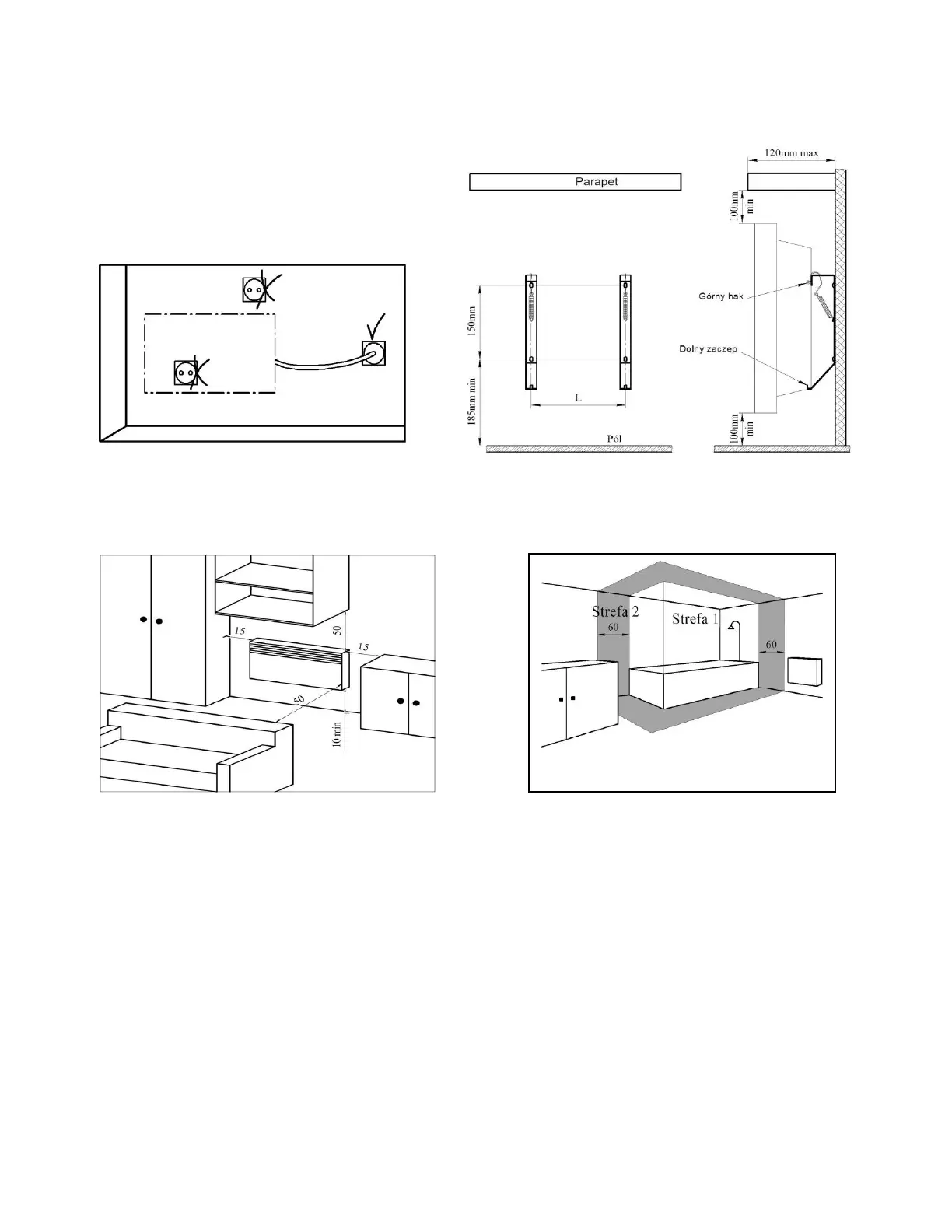

draught.1 draught.2
draught. 3 draught. 4
5.5 - Heating type IP24 can be installed in bathrooms, swimming pools (see Fig. 4).
In this case, the installation of the heater of this type is not allowed: a zone (1) bathrooms,
swimming pool, etc .; in the zone (2), where a person located in the bath, shower or swimming
pool can reach a heater or its cord.
Power outlets for heaters should be installed at least 25 cm above the floor and out of the zone
(2).
5.6 - Press the button on the position of incorporation, and then move the knob gradual power
control from the off position "0". The thermostat knob sets the position "" sign "» knob should
