4.7 Power supply
Power supplyPower supply
Power supply
Position
Operating voltage
10
–
15 V
(power supply must be able to deliver 3 ampere
s
at
rated voltage)
T
he voltage must be between
11
.
4
and
13
.
8
V to be able to
achieve full bowl coverage flush.

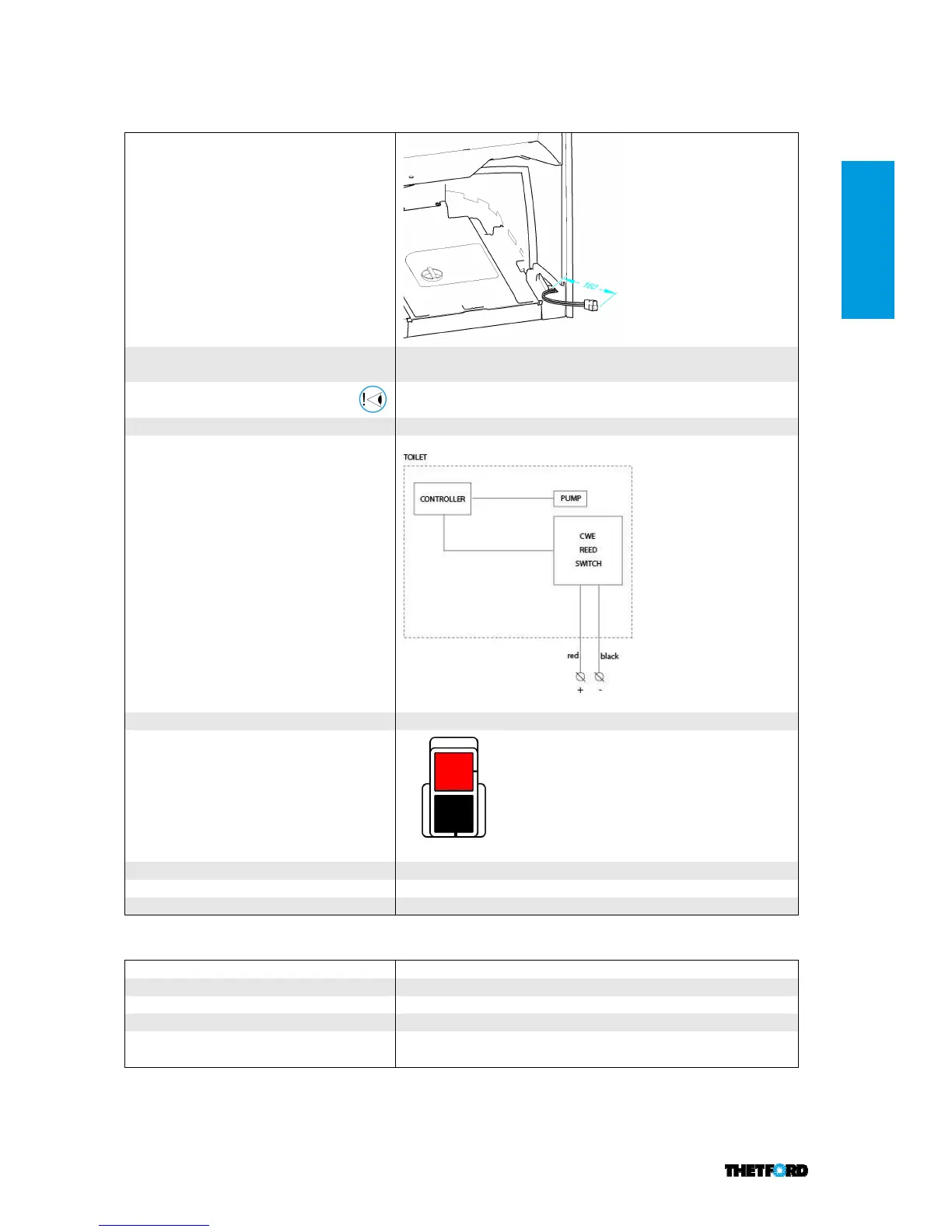

Wiring diagram
Connection
2 pole tab housing
Position wiring in tab housing
2 pole connector
on toilet
TYCO/AMP 180
908
2 pole
connector
OEM
TYCO/AMP 180907
Thickness
0
.
5 mm²
4.8
4.84.8
4.8 Packag
PackagPackag
Packaging
inging
ing
Type of packaging
Pallet packaging (see chapter 5 for unpacking)
Amount of toilets on a pallet
6 (2x3)
Maximum stack height
3 pallets high
Pallet size
1200 x 800 mm
Returnable packaging
The pallet must be returned to Thetford if a half truck load i
s
available.
red
black
