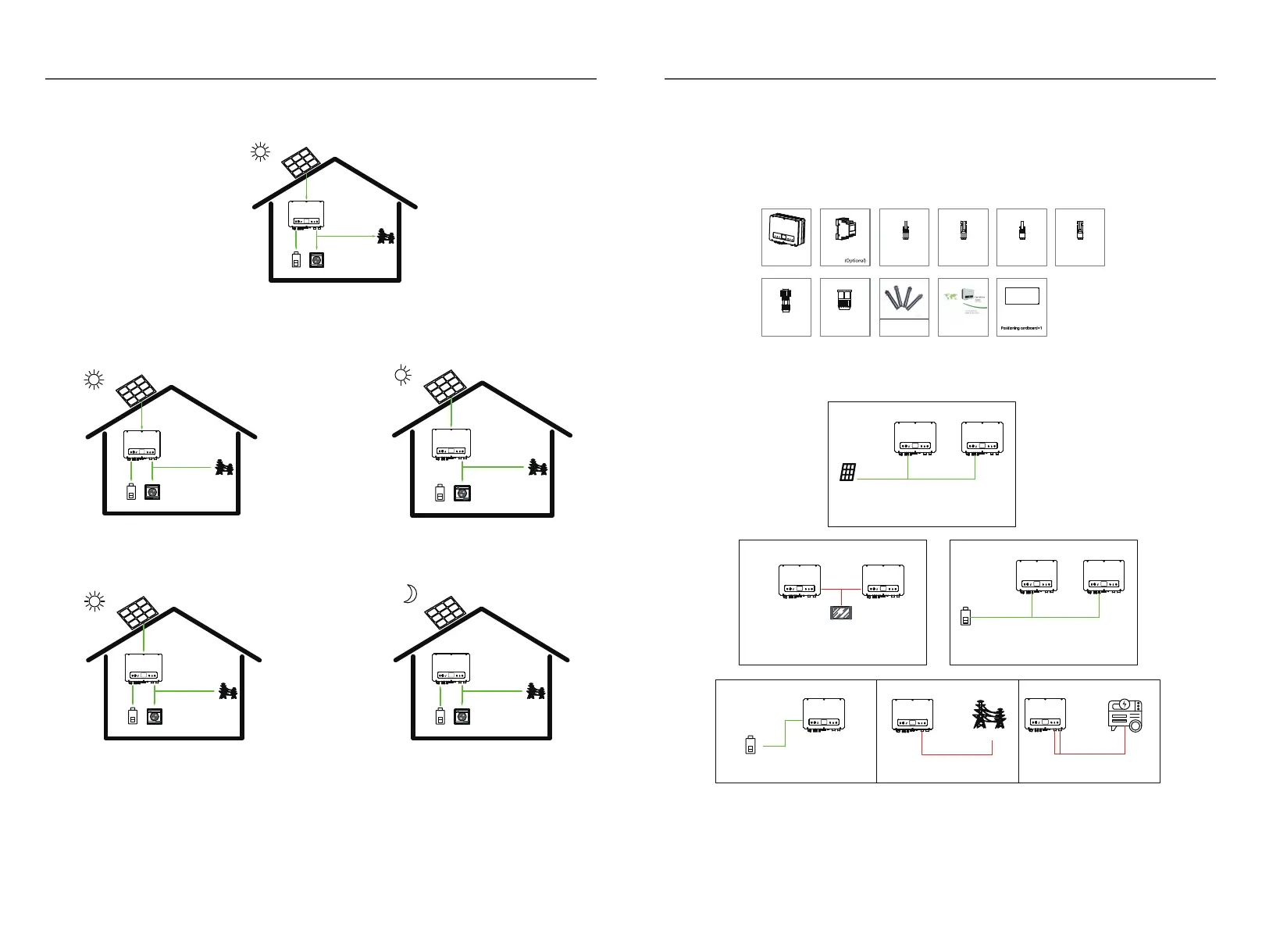

1.3.4.1) In the valley level, the grid and PV charge the batteries.(Fig:1.3.4.1)
Fig:1.3.4.1
1.3.4.2) In the flat stage,if the PV is sufficient,the battery can be charged(Fig:1.3.4.2A); if
the PV is insufficient, Priority is for loads(Fig:1.3.4.2B).
Fig:1.3.4.2A Fig:1.3.4.2B
1.3.4.3) In the peak level.
Fig:1.3.4.3(A)(PV is sufficient) Fig:1.3.4.3(B)(PV is insufficient)
SYSTEM
EPSGRID
FAULTCOM METER
SYSTEM
EPSGRID
FAULTCOM METER
SYSTEM
EPSGRID
FAULTCOM METER
SYSTEM
EPS
GRID
FAULT
COM METER
1
2
3
SYSTEM
EPSGRID
FAULTCOM METER
2 Installation
2.1 Unpacking and Checking
On receiving the inverter, please check before installation to make sure all the
components as below are not missing or damaged.
2.2 Unacceptable Installations
Please avoid the following installations, which will damage the system or the inverter.
SYSTEM
EPSGRID
FAULTCOM METER
Backup Loads
SYSTEM
EPSGRID
FAULTCOM METER
Battery
Hybrid Inverter(A)
SYSTEM
EPS
GRID
FAULTCOM METER
Battery
Hybrid Inverter
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(B)
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(B)
Incompatible battery
×
× ×
Hybrid Inverter(A)
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(A)
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(B)
×
Solar
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(A)
×
Back-up On-Grid
Generator
SYSTEM
EPSGRID
FAULTCOM METER
Hybrid Inverter(A)
×
Back-up
Grid
Single PV cannot connect to two inverters.
Back-Up cannot connect in parallel.
On-Grid or Back-Up side cannot connect to
any Generator.
Battery Input cannot connect to Incompatible battery.
Back-Up side cannot connect to Grid.
One Battery Bank cannot connect to multiple inverters.
Inverter×1
Smart Meter×1
with 3 CT
Positive PV
connector×2
AC Connector×2
Positive PV
connector×2
Positive Bat
connector×1
Positive Bat
connector×1
Installation Screw
packet
User manual×1
RJ45
Connector×2
