Thitronik WiPro III + safe.lock - Transmitter Mounting Variants

9

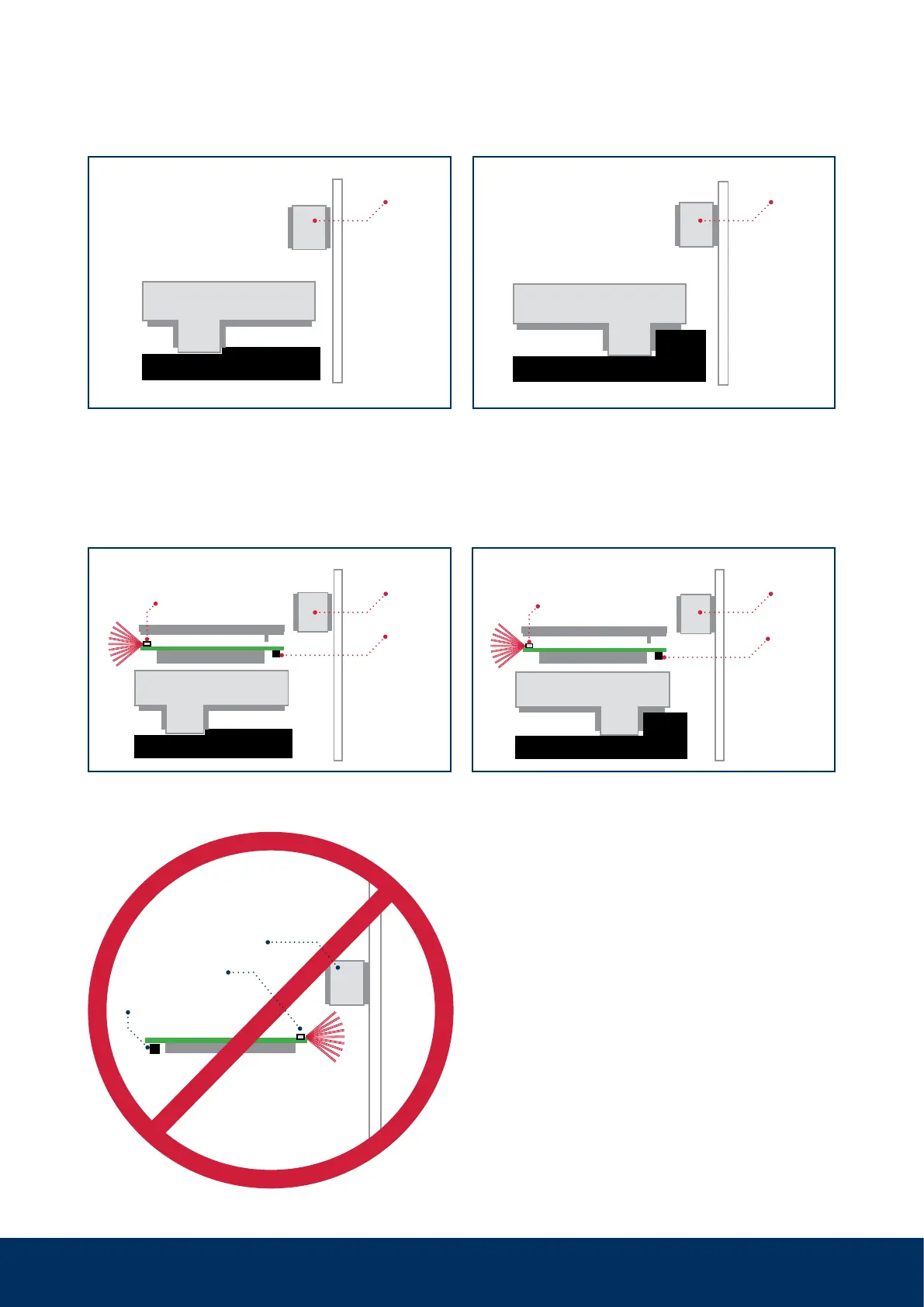

2. The circuit board is inserted into the transmitter housing (transmitter LED oriented upwards pointing away from
magnet) and the transmitter cover is snapped on.
The circuit board must not be
aligned with the transmitter LED
pointing towards the magnet!
If it is, then teach-in, but no alarm, will be possible.
Reed switch
Transmitter
LED
Magnet
1. The orientation of the transmitter housing on the window frame depends on the available space (frame profile,
distance to the roller blind or window).
Variant lying
left
Window frame
Windowpane
Transmitter housing
Magnet Magnet
Window frame
Windowpane
Transmitter housing
Variant lying
right
Magnet
Window frame
Transmitter LED
Windowpane
Transmitter housing
Reed
switch
Battery Battery
Variant lying left
Magnet
Window frame
Windowpane
Transmitter LED
Transmitter housing
Reed
switch
Variant lying right
Mounting of wireless magnetic contacts 868 to windows, doors, hatches etc.
