thomann EPS-100 Assembly Instructions

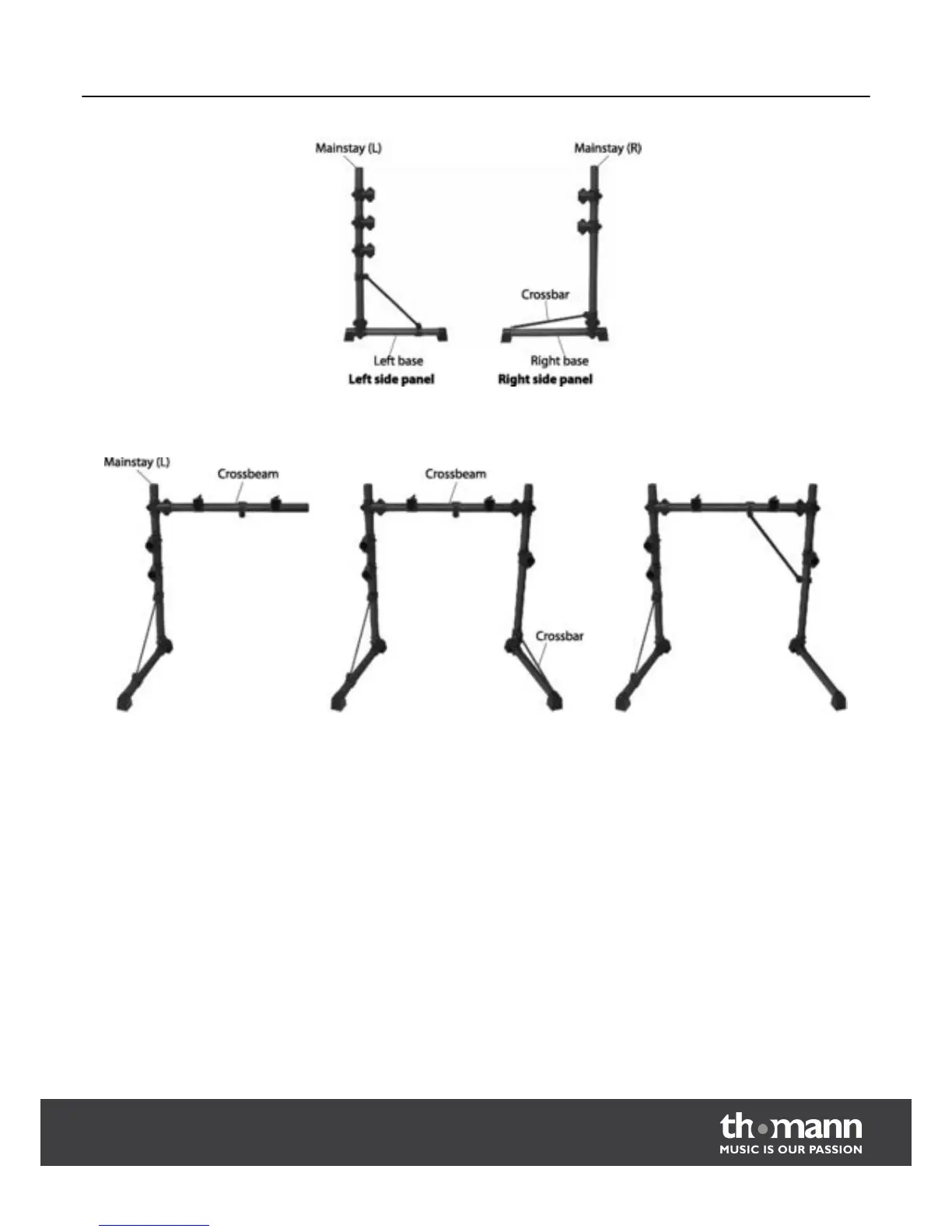

Connect the left side pipe (mainstay L) to the left base and tighten the allen screw of the terminal with the supplied drum key
firmly. Stabilise the unit with a crossbar (see figure). Then connect the right side pipe (mainstay R) to the right base and tighten
the allen screw of the terminal firmly with the supplied drum key. Stabilise the unit with a crossbar (see figure).
Connect the top terminals of the left and right mainstay using the crossbeam of the rack and tighten the allen screws of the
terminals firmly using the supplied drum key. Then stabilise the unit with a crossbar (see figure).
Assembly
MPS-100
7

thomann EPS-100 Specifications

General

Brand	thomann
Model	EPS-100
Category	Drums
Language	English
