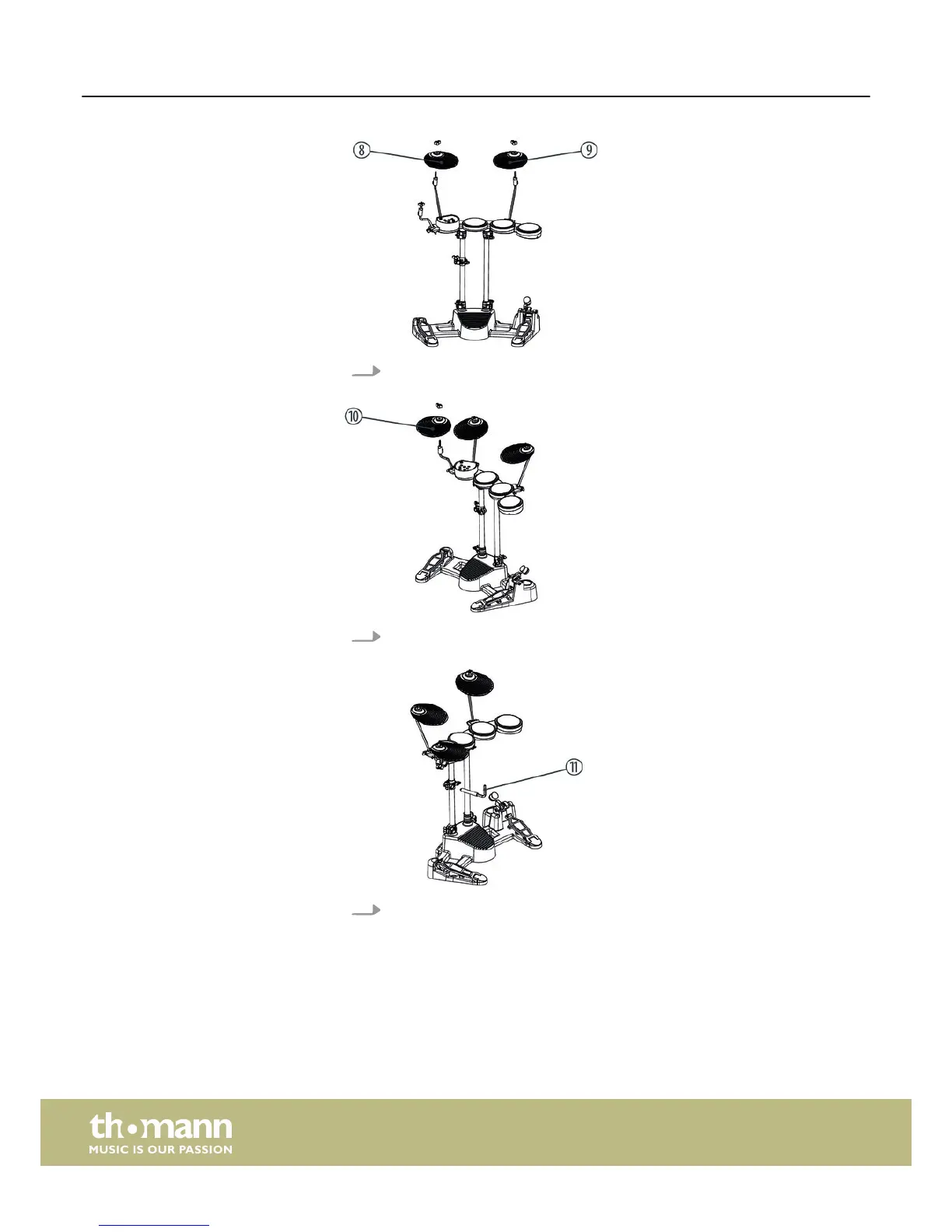

4. Place the two ride and crash cymbals (8) and (9) onto the cymbal holders (5)
and (6) as shown in the illustration and tighten the corresponding wing nuts.
5. Place the hi-hat cymbal (10) onto the holder (7) as shown in the illustration and
tighten the corresponding wing nut.
6. Insert the longer end of the L-piece snare drum support (11) into the holder
clamp provided on the left-hand stand tube (2) and tighten the wing nut on
the holder clamp.
Assembly
e-drum set
10
