8 [SONG] button
Controls the selection and playback of songs.
9 [–] / [+] buttons
Buttons to navigate through the ten drum kits, select parameters, sounds, etc.
10 CONNECT TO BASE
6-pole input for connecting the bass-drum pedal and hi-hat controller to the drum module using the included
cable.
11 Trigger input jacks for RIDE, CRASH, HI-HAT and SNARE
Input jacks for connecting the pads using the included cables.
12 USB
USB port for connecting a PC with USB-MIDI interface.
13 AUX IN
Input jack (3.5-mm stereo mini jack) for connecting audio devices, such as CD, MP3 players, etc.
14 PHONES
Headphones (3.5-mm stereo mini jack)

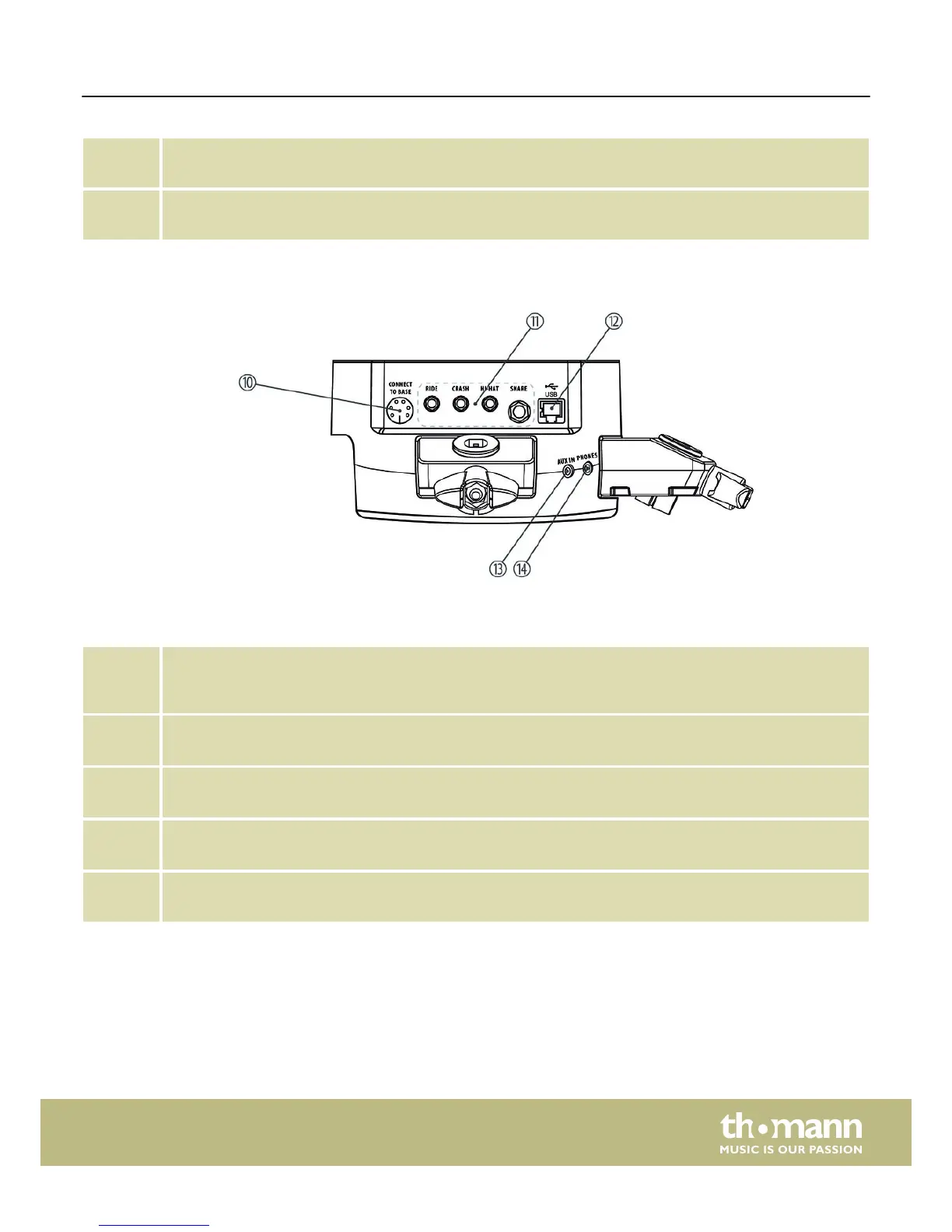

Rear of the drum module
Connections and controls
HD-50
