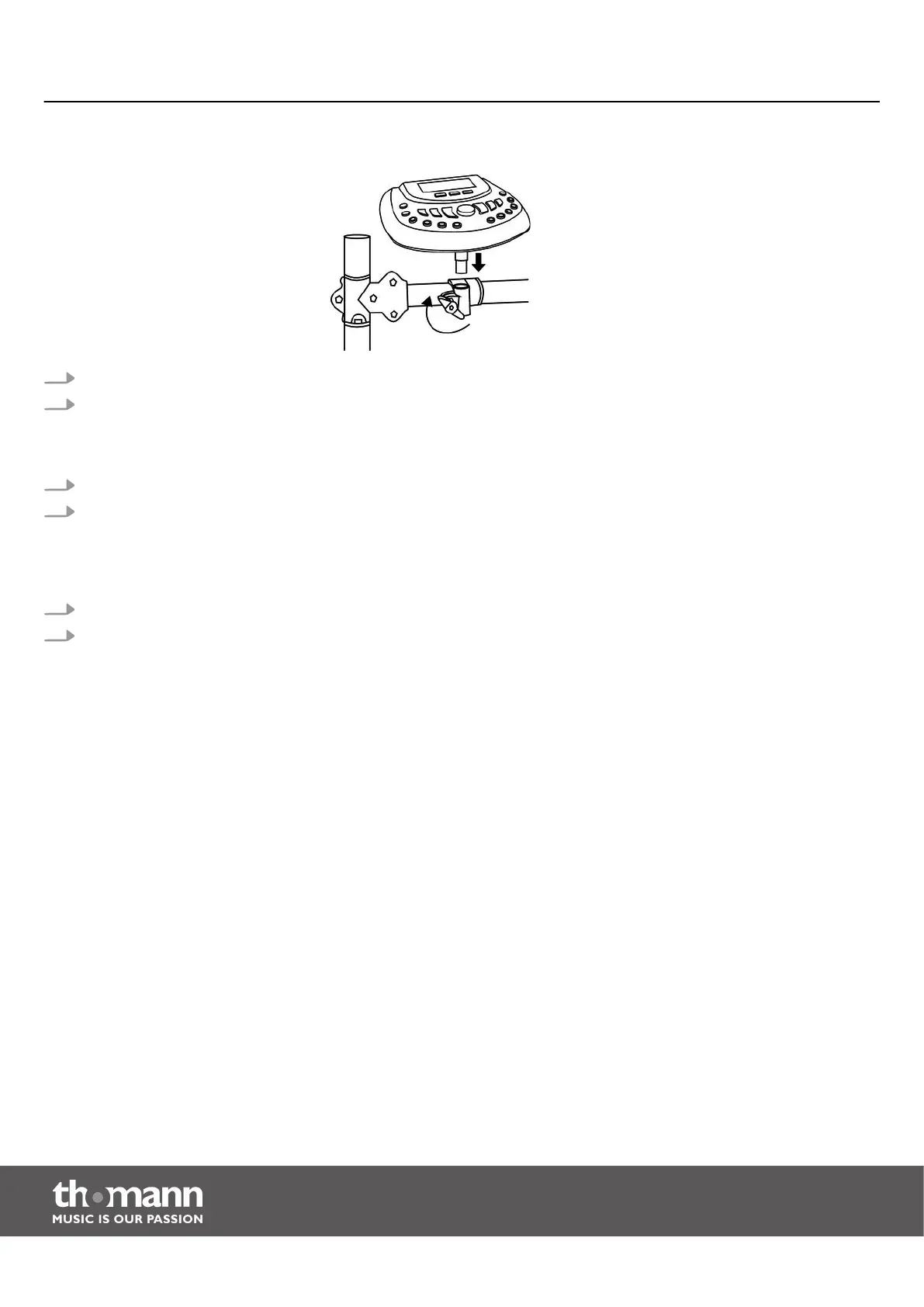

Mounting the drum module on the rack
1. Put the drum module up to the stop into the empty terminal of the left side arm.
2. Align the module and tighten the wing nut of the terminal.
Mounting the bass pedal
1. Snap the two metal rods into the holes provided on the frame of the pedal.
2. Place the beater into the hole provided on the rotary head of the kick drum pedal and tighten the clamp with the drum key
firmly.
Bass drum and hi-hat
1. Position the bass drum pad centred under the rack. Position the bass drum pedal centred in front of the pad.
2. Place the hi-hat pedal to the left of the bass drum pedal.
Setting up and wiring
Set up the rack, the pads and the cymbals according to your needs. As a final step, all triggers need to be wired to the drum
module. Note the labelling on the drum module and the colour markings of each cable.
Assembly
e-drum set
10
