Mounting cymbals on the rack

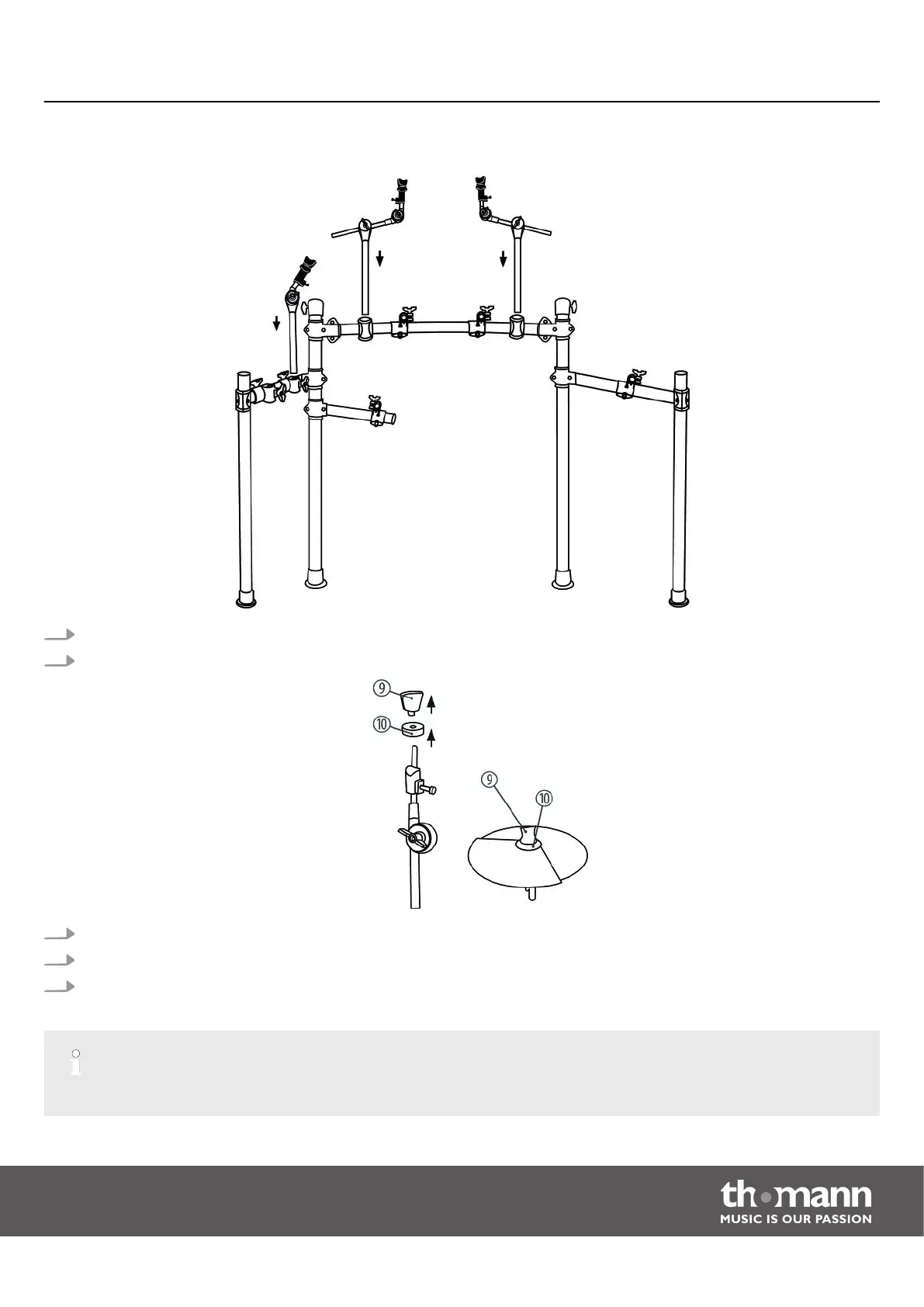

1. Put the three cymbal holders as shown into the designated terminals on the rack.
2. Tighten the screws of the terminals firmly and evenly.
3. Unscrew the wing nuts (9) from the cymbal holders and take the felt washers (10) off the holders.
4. Place the four cymbals as shown in the figure on the holders
5. Then place the felt washers (10) on the cymbals and fix the cymbals with the associated wing nuts (9) on the holders.
Make sure that the connector block on the underside of the cymbals is not stuck to the cylinder bolt of the counter-holder.
