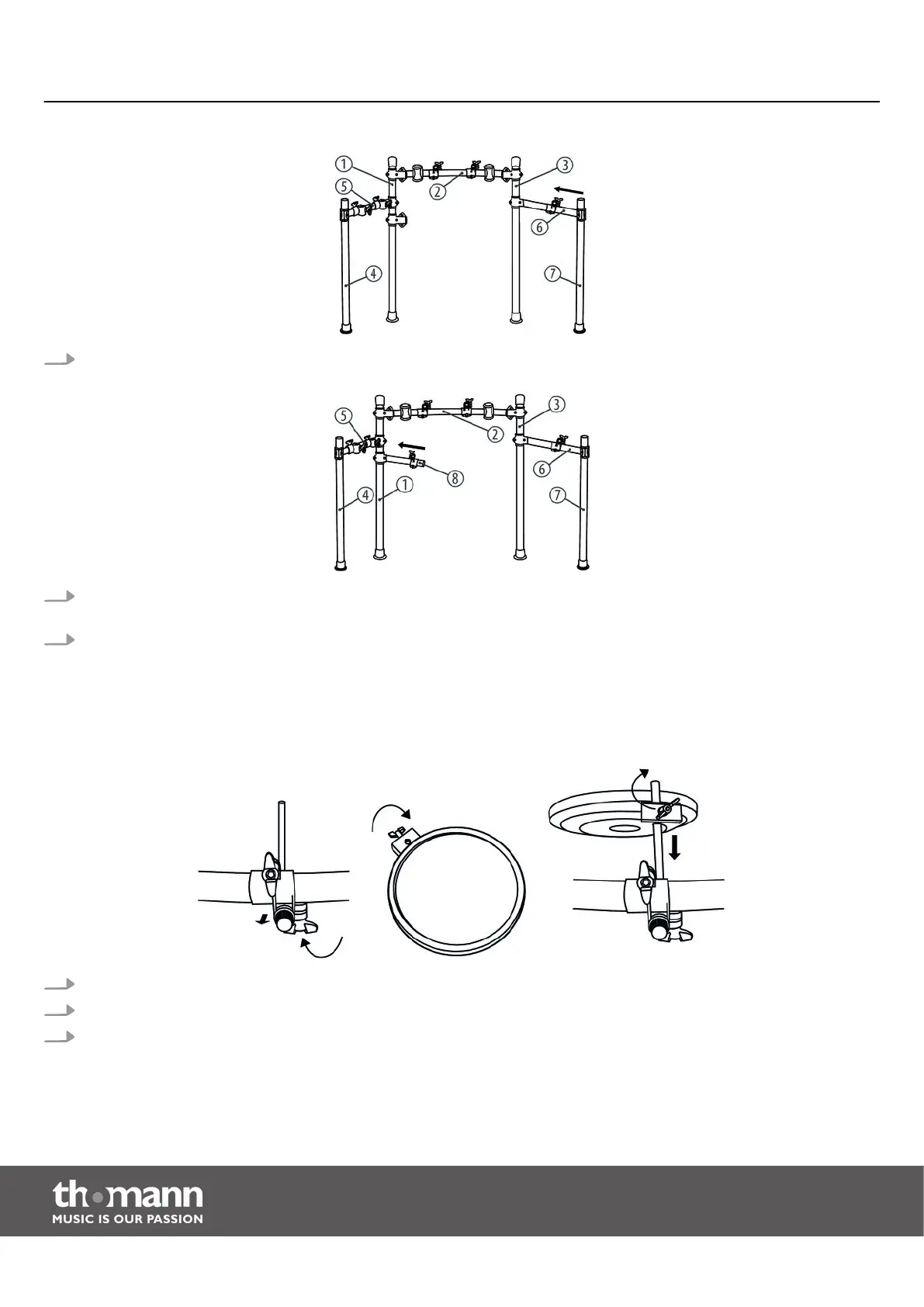

5. Connect the right side arm (pre-mounted pipes 6 and 7) to the lower terminal of pipe (3) and tighten the screws of the
terminals with the drum key evenly hand-tight.
6. Connect the short side arm (8) to the lower terminal of pipe (1) and tighten the screws of the terminals with the drum key
evenly hand-tight.
7. Position the rack horizontally and vertically to suit your needs and tighten all terminal screws with the drum key firmly and
evenly.
Mounting pads on the rack
1. Attach the supplied L-pieces to the pads. First, tighten the wing nuts on the pads hand-tight.
2. Then slide the plastic ends of the L-pieces up to the stop into the designated terminals on the rack.
3. Align the pads on the rack to meet your needs, then tighten the wing nuts of the pad brackets and the bolts of the pad
terminals on the rack evenly.
Assembly
e-drum set
8
