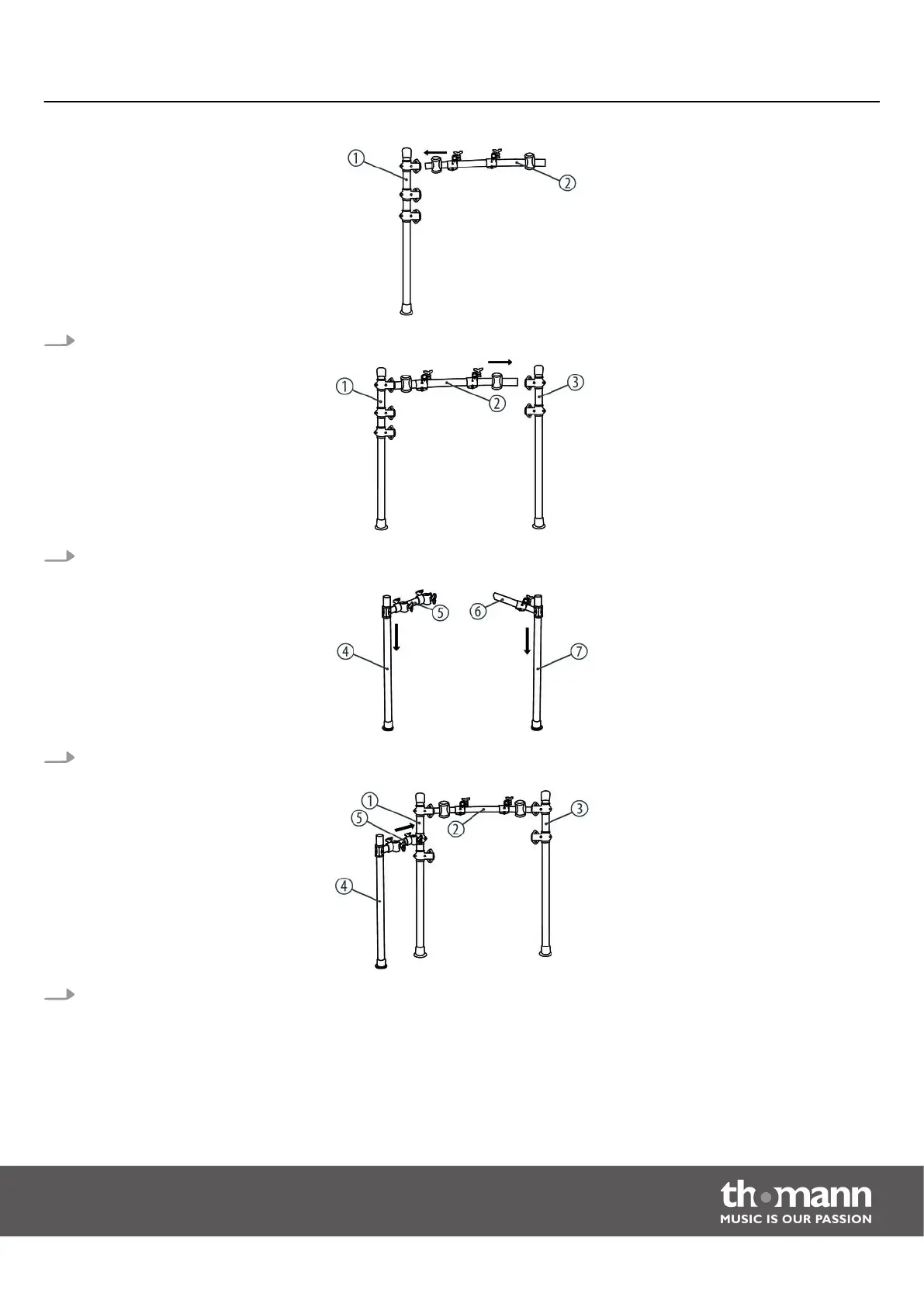

1. Connect the pipe (2) to the upper terminal of pipe (1).
2. Roughly align the height of the terminal on pipe (3) according to the height of their counter-terminal on pipe (1) vor. Con‐
nect pipe (2) to the upper terminal of pipe (3) and tighten the screws of the terminals with the drum key evenly hand-tight.
3. Connect the side arms (5) and (6) to the terminals of the pipes (4) and (7) and tighten the screws of the terminals with the
drum key evenly hand-tight.
4. Connect the left side arm (pre-mounted pipes 4 and 5) to the middle terminal of pipe (1) and tighten the screws of the
terminals with the drum key evenly hand-tight.
Assembly
MPS-500
7
