5. Place the assembled unit with the cover plate facing down on a suitable mounting surface. Use a soft padding to prevent
damage to the mounting or housing surface.

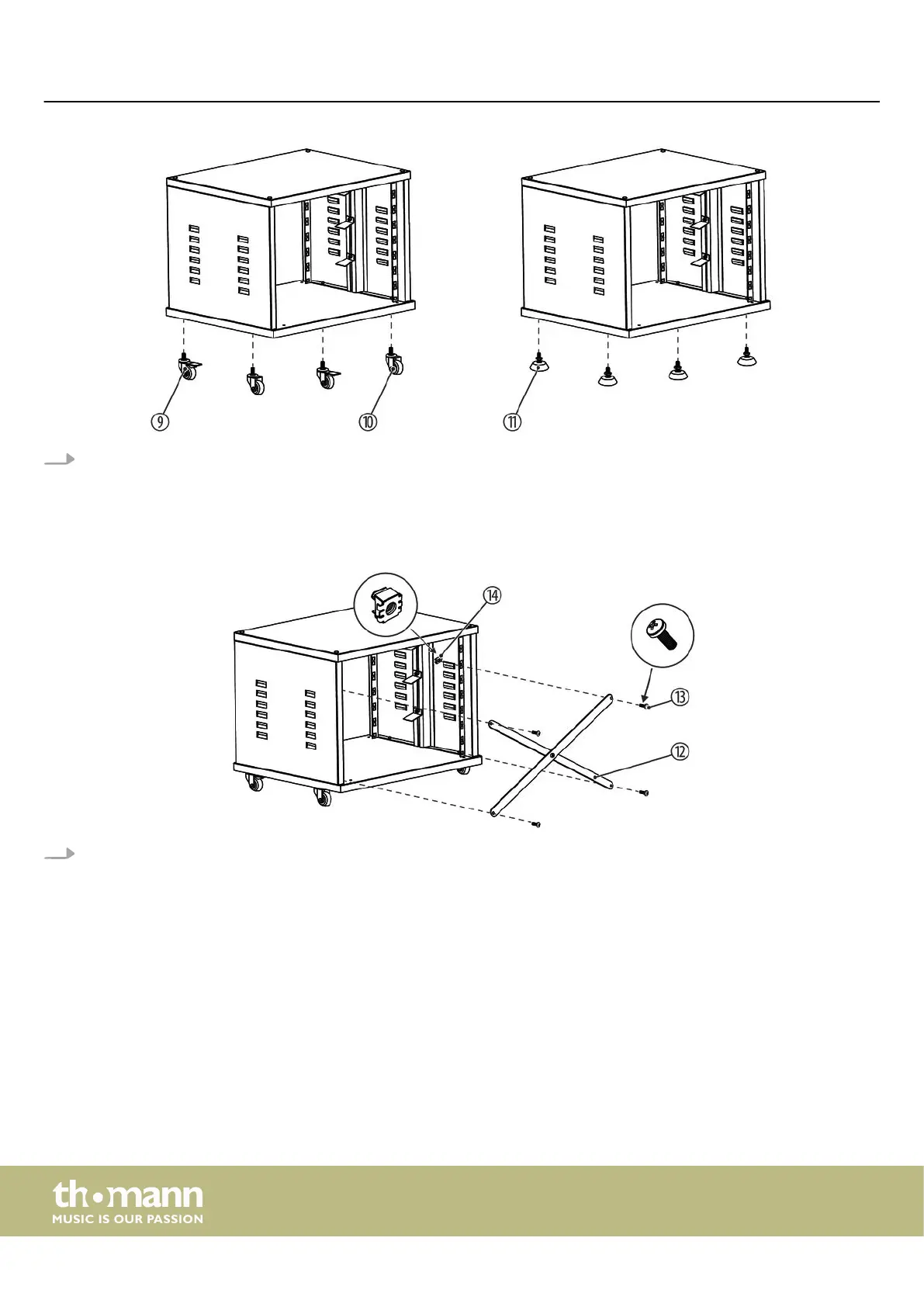

Mount the two casters (10) and the two locking casters (9) or alternatively the four height-adjustable feet (11) to the base
plate.
Only valid for item no. 351448 Millenium SR-2008
6. Position the assembled unit with the rollers / height-adjustable feet facing down.
Mount the crossbar (12) with four Phillips screws M6 × 20 (13) and four cage nuts M6 (14) with a Phillips screwdriver in the
rack rails of the side panels as shown.
Installation
studio rack
10
