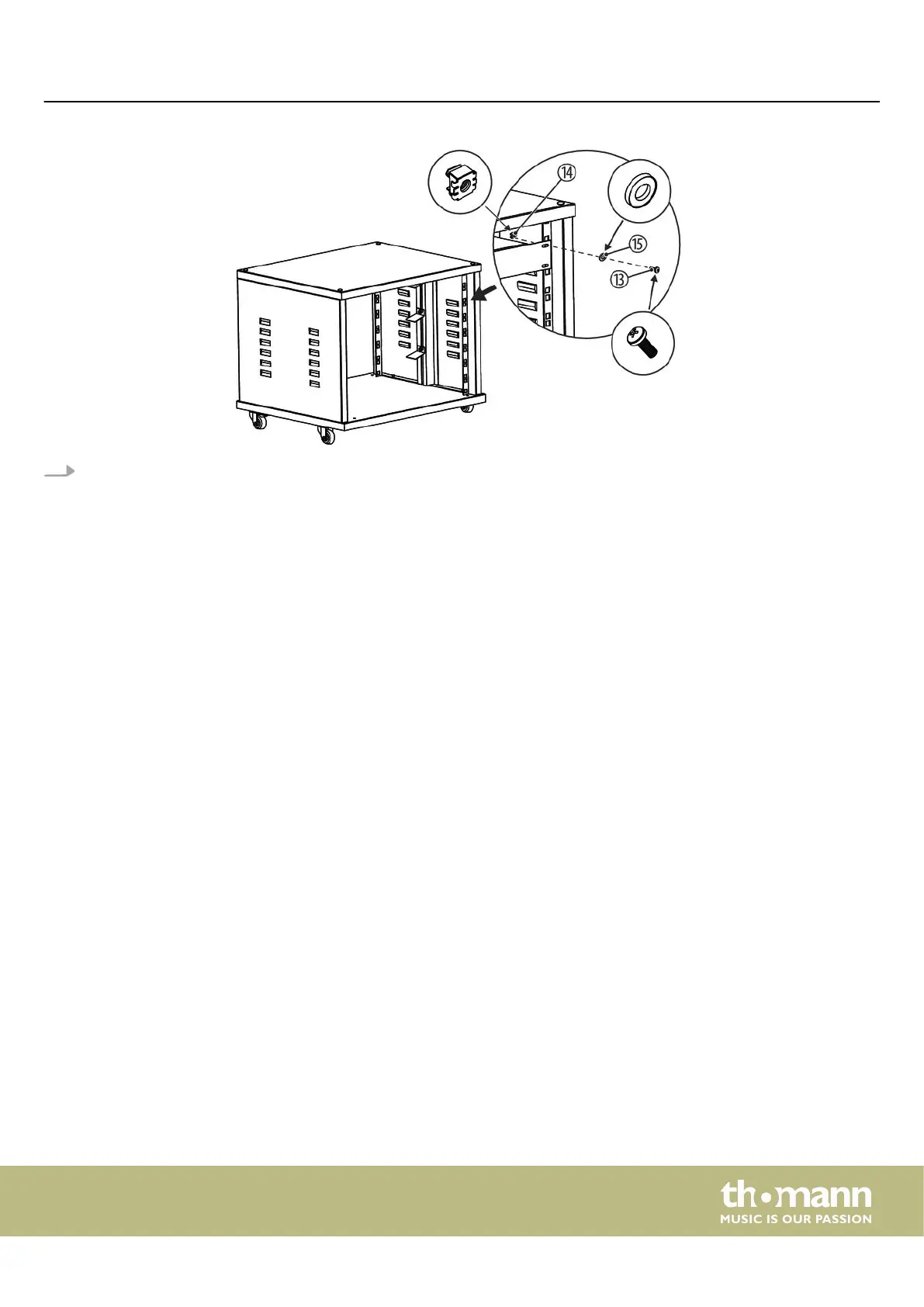

7. To install the equipment into the studio rack, screw it in the rack rails with a Phillips screwdriver using the Phillips screws
M6 × 20 (13), M6 cage nuts (14), and plastic washers (15) as illustrated.
Installation
SR-2012, SR-2018, SR-2024, SR-2008
11
