Hi-hat controller Millenium MINE
The Millenium Hi-hat controller MINE set consists of a hi-hat machine and a hi-hat controller MINE.

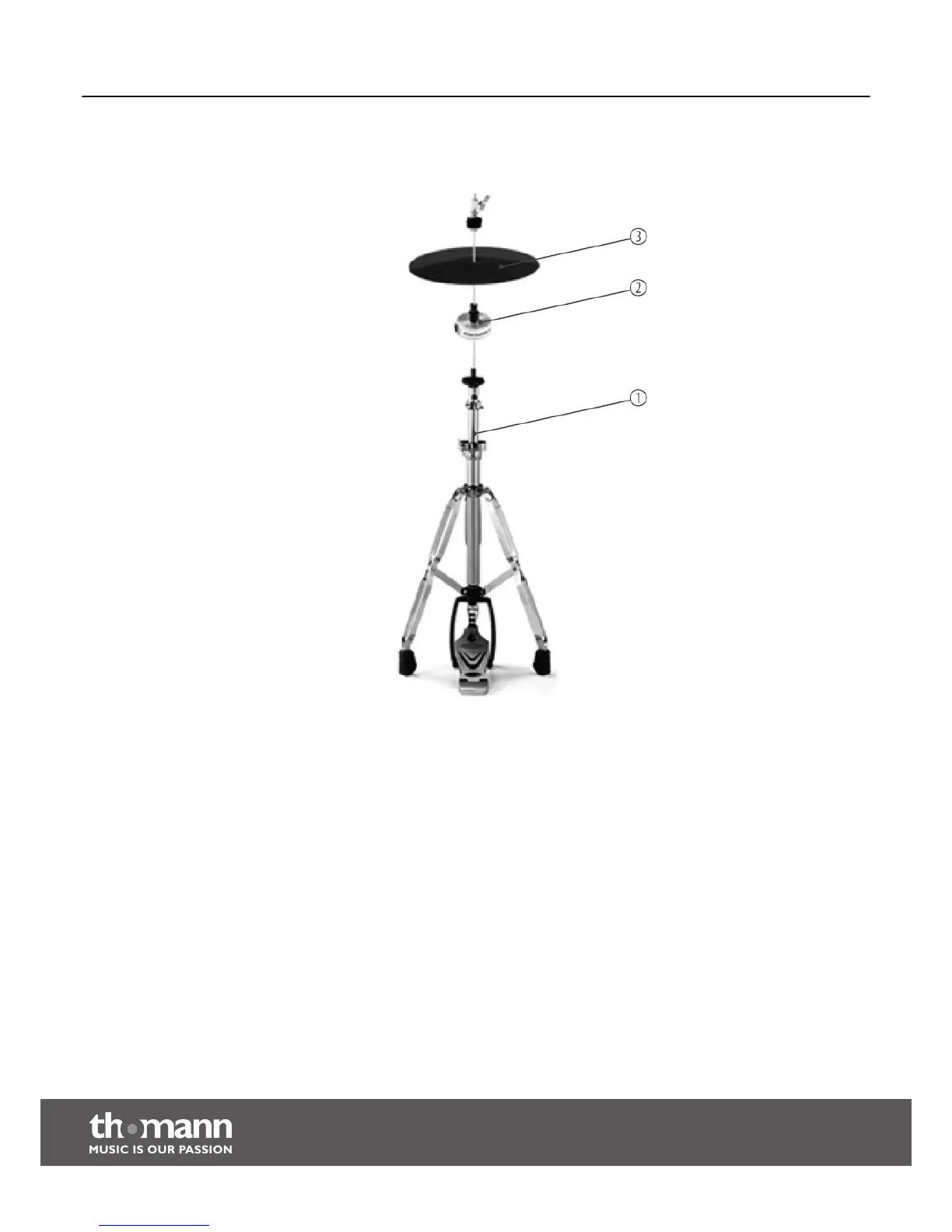

Install the Hi-hat controller MINE (2) and the top cymbal (3) as shown between the felts on the included hi-hat machine (1).
Setting up and wiring
Set up the rack, the pads and the cymbals according to your needs. As a final step, all triggers need to be wired to the drum
module. Note the labelling on the drum module and the colour markings of each cable.
Assembly
e-drum set
