page 6
PLEASE WATCH THE INSTALLATION DVD AND READ
THE INSTALLATION MANUAL BEFORE ASSEMBLY

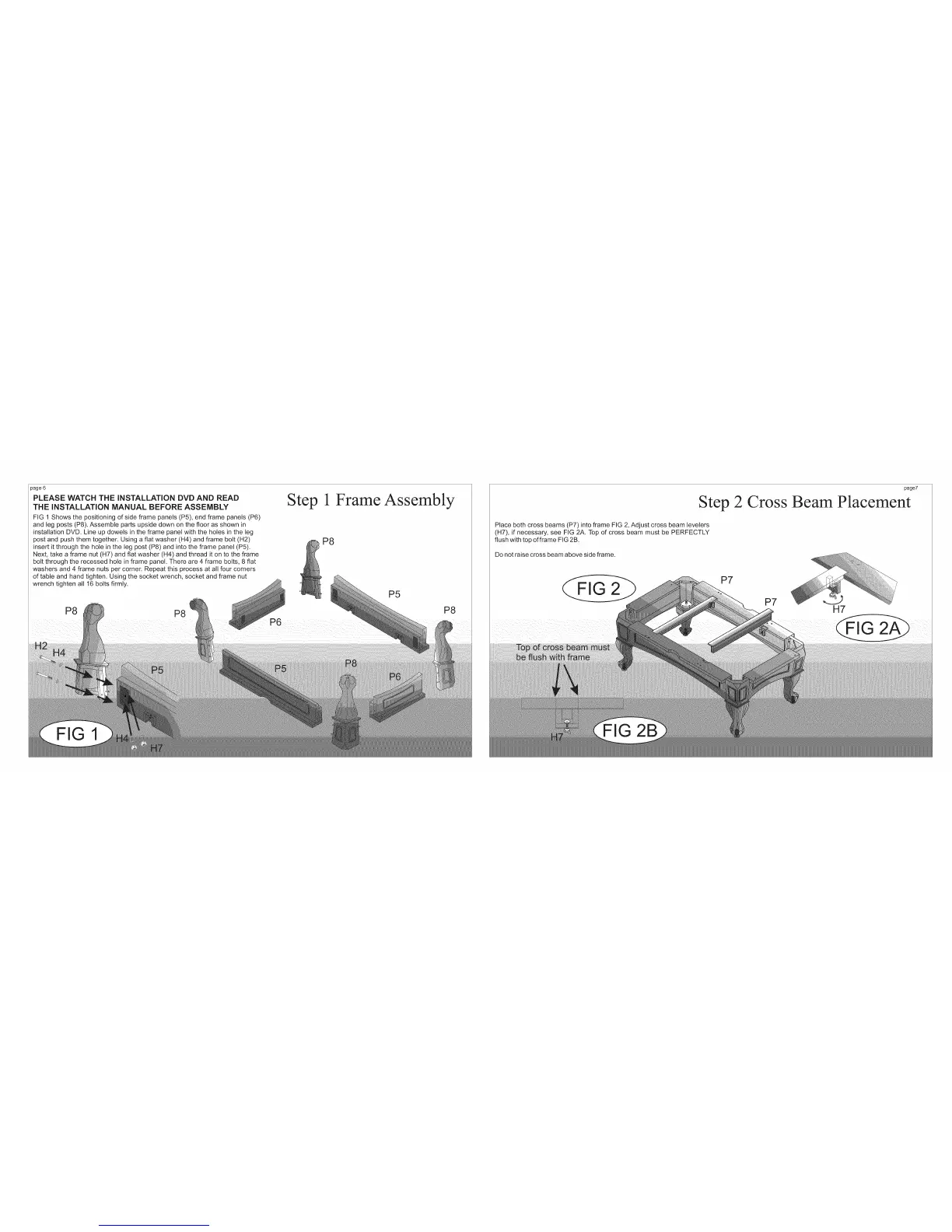

FIG 1 Shows the positioning of side frame panels (P5), end frame panels (P6)
and leg posts (P8). Assemble parts upside down on the floor as shown in
installation DVD. Line up dowels in the frame panel with the holes in the leg
post and push them together. Using a flat washer (H4) and frame bolt (H2)
insert it through the hole in the leg post (P8) and into the frame panel (P5).
Next, take a frame nut (H7) and flat washer (H4) and thread it on to the frame
bolt through the recessed hole in frame panel. There are 4 frame bolts, 8 flat
washers and 4 frame nuts per corner. Repeat this process at all four corners
of table and hand tighten. Using the socket wrench, socket and frame nut
wrench tighten all 16 bolts firmly.
P8
P8
Step
1 Frame Assembly
P8
P5
P8
Step
Place both cross beams (P7) into frame FIG 2, Adjust cross beam levelers
(H7), if necessary, see FIG 2A. Top of cross beam must be PERFECTLY
flush with top of frame FIG 2B.
Do not raise cross beam above side frame.
2 Cross
P7
P7
page7
Beam Placement
H7
