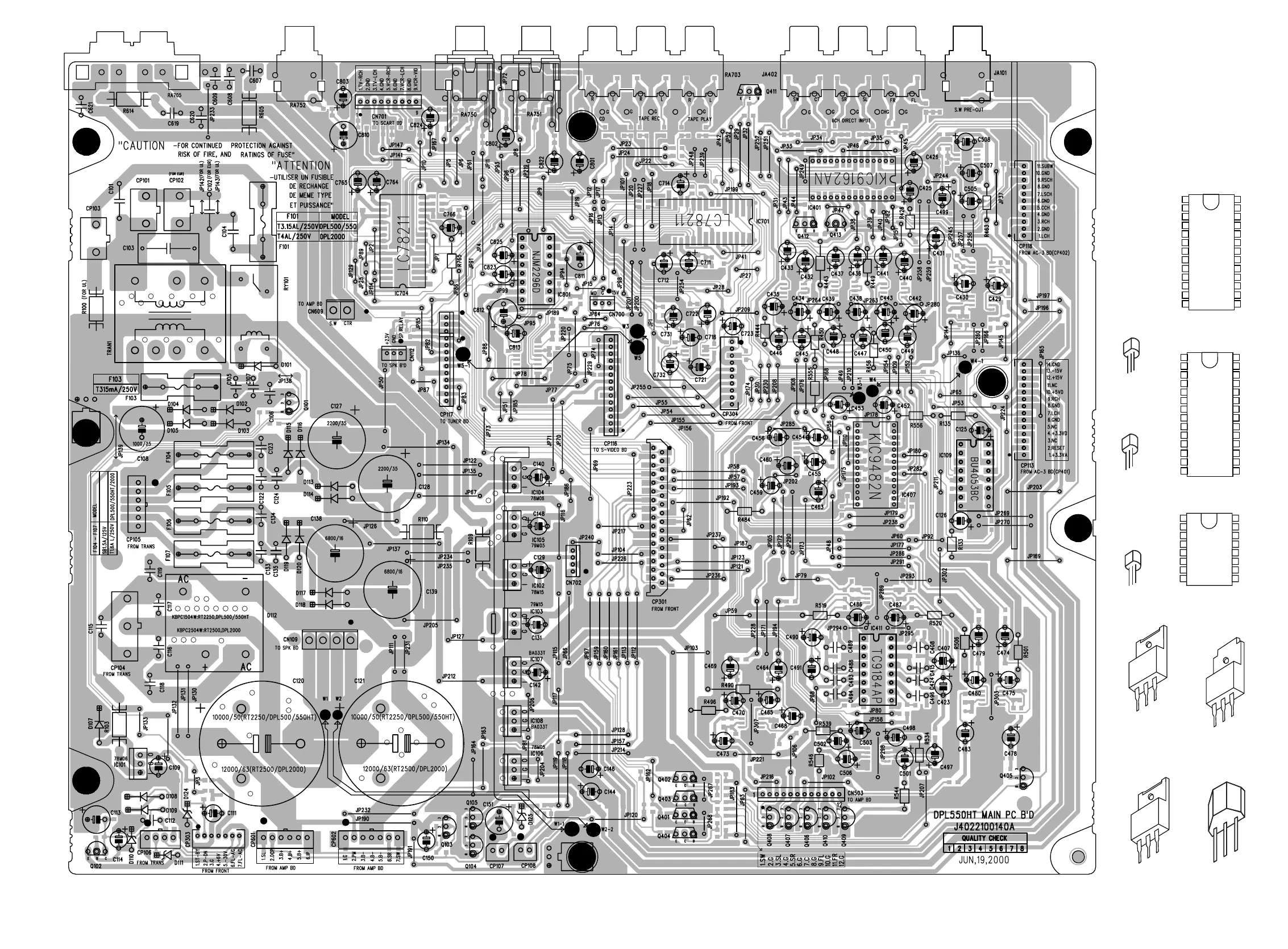

THOMSON DPL 500 - Main P.C.B.; Component Side

PAV 5005R/5005
First issue 08 / 00 11
12
Main P.C.B.
Platine principale
Grundplatte
Piastra principale
Platina principal
DPL 550HT
Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
1
15 16
30
1
14 15
28
1
16
8
9
G
I
O
G
I
O
G
I
O
E
C
B
E
C
B
E
C
B
D
S
G
LC78211
KIC9162AN
KIC9482N
NJM2296D
BU4053BC
TC9184AP
78M15
78M05
78M06
KIA7805A
79M05
79M15
BA033T
DTA114YS
DTC114TS
MPSA56
2SC1740S
BKTA1266
KTD1302
2SK117Y
