3

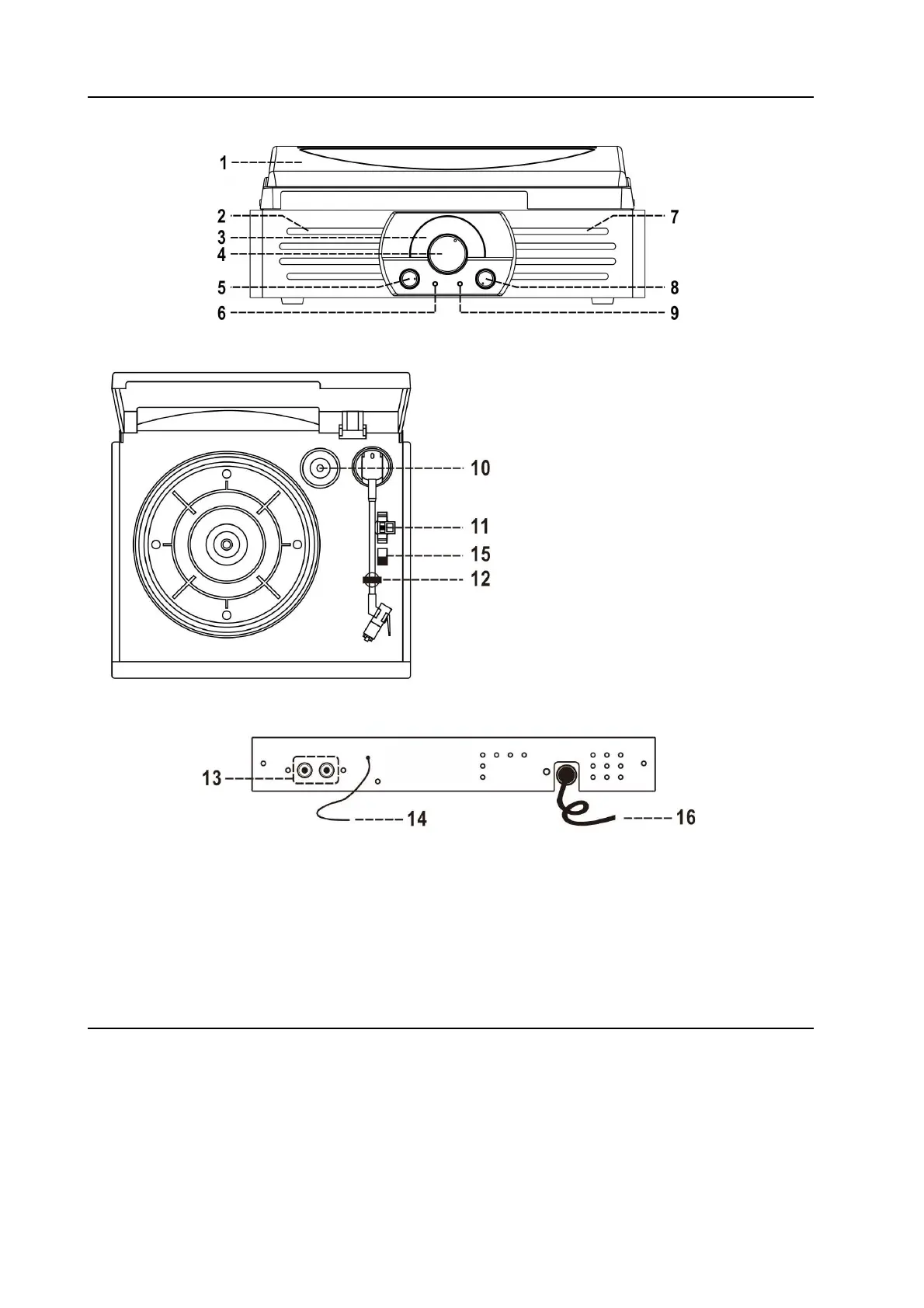

LOCATION OF CONTROLS
1) DUST COVER
2) LEFT SPEAKER
3) DIAL POINTER
4) TUNING KNOB
5) FUNCTION SELECTOR
6) FM STEREO INDICATOR
7) RIGHT SPEAKER
8) POWER ON/OFF AND VOLUME
CONTROL KNOB
9) POWER LED INDICATOR
10) SPINDLE ADAPTOR
11) TURNTABLE SPEED SELECTOR
12) PICK-UP HOLDER
13) LINE OUT SOCKET
14) FM ANTENNA
15) AUTO STOP SWITCH
16) AC CORD
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULTE IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
PRECAUTIONS FOR USE
INSTALLATION
• UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.
• DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND
BEFORE ALL OTHER CONNECTIONS HAVE BEEN MADE.
• DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL
CENTIMETERS AROUND THE UNIT FOR VENTILATION.
