Water System
When the water supply pipe is connected with the main water supply, water will fill the water
trough through the floater valve till enough water inside water trough makes floater valve close.
During ice-making stage, water is pumped from the water trough to the water distribution tube. The
distributed water flow the surface of evaporator. Most parts of water go back water trough. Some
water is frozen on the evaporator step by step. The floater valve will open and fresh water is
recruited at any moment.

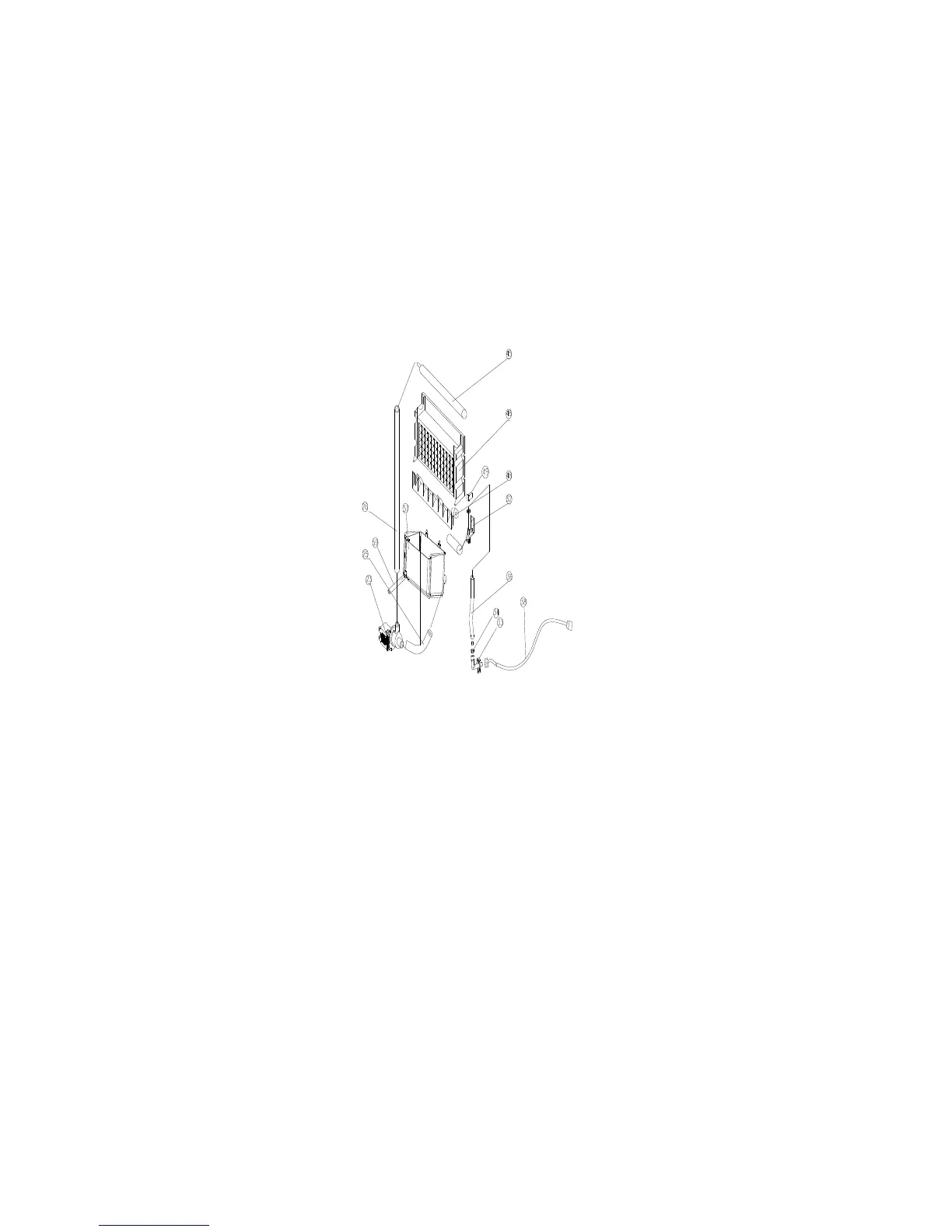

NUMBER DESCRIPTION NUMBER DESCRIPTION
23 Water pump 25 Water pump inlet tube
26 Water pump outlet tube 32 Floater valve
33 Water inlet 34 Nut of water inlet tube 36 Water inlet
tube 38 Water supply pipe
45 Water distribution tube 46 Evaporator
48 Ice slideway 49 Ice full probe
57 Water trough 59 Water trough drain tub
