1. Electrify Status For The First Run
As the icemaker is properly installed. Turn on the water tap, fill the water trough (reach on the level),
then Press the ICE/OFF/WASH switch to the ICE position. The icemaker will start working
automatically. In this status, the time is fixed about 3 minutes. This function is also helpful to protect
the compressor avoiding restart within 3 minutes.
At this status, the Red, Green, Yellow LEDs are flashing together.
2. Ice-making Status
The compressor, motor fan and pump are powered on. The hot gas solenoid valve is closed.
When this green LED is lit, the unit is working in the ice making mode controlled by temperature
sensor. When the green LED start flashing, the unit is working in the ice making mode controlled by
a fixed timer. The fan motor is also controlled by a temperature sensor. And if the ambient
temperature is too low, the motor fan turns off.
3. Ice Harvest Status
The pump is turned off. The hot gas solenoid valve, compressor and motor fan is powered on. The
fan motor is also controlled by temperature sensor. And if the ambient temperature is too low, the
motor fan turned off. The Yellow LED indicates the ice harvest status.
4. Cleaning Status
Press the “WASH”, Unit switch to Cleaning Status. At this status, only pump is turned on.
Compressor, motor fan and hot solenoid valve are powered off. To stop the cleaning mode, Switch to
“OFF”.

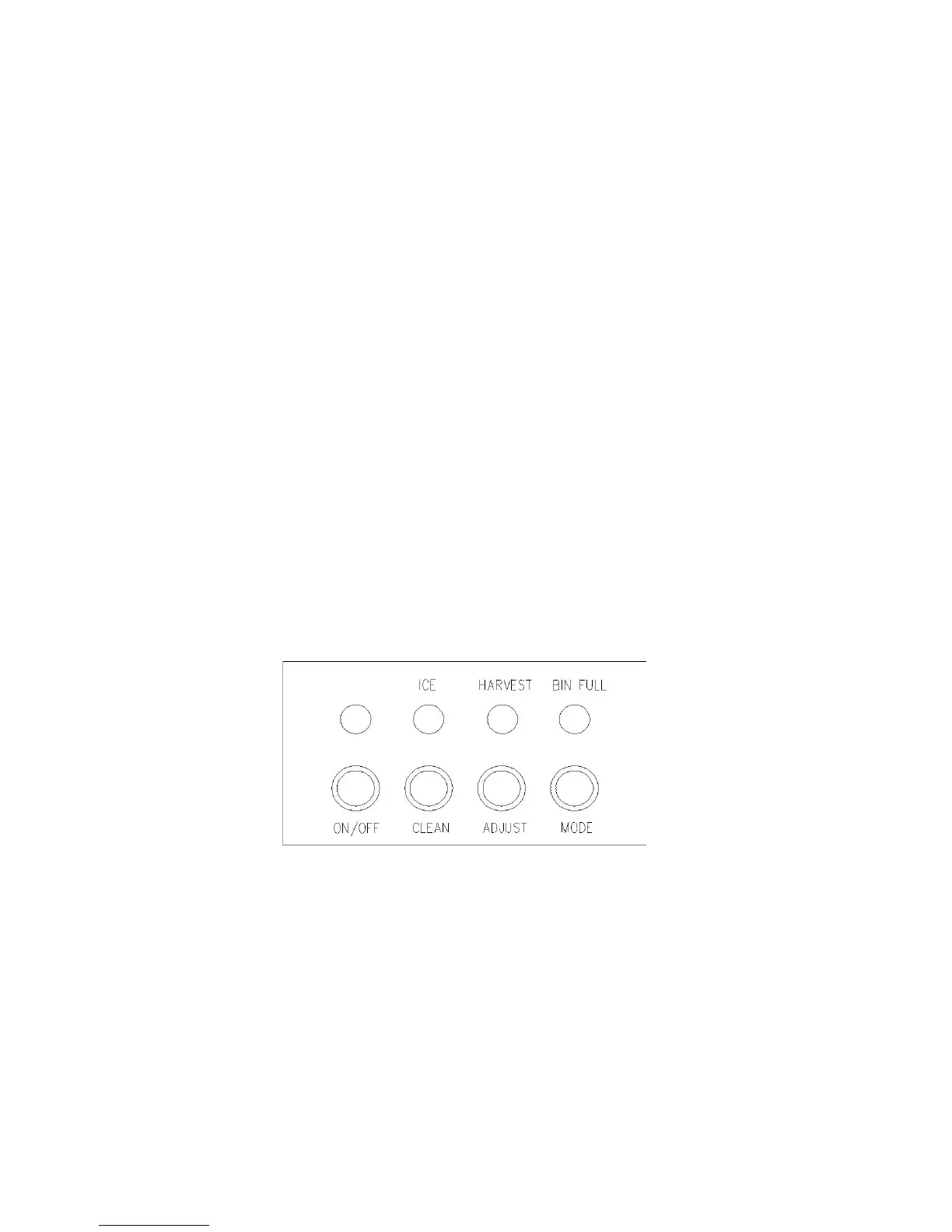

Control Panel
Descriptions of LEDs and buttons:
1. Red LED: Ice Full indicator light.
When this LED is lit, the ice storage bin is full of ice or there is something between the two
arms of the ice-full sensor in the ice storage bin. The unit will stop working. When ice cubes
are taken out of the ice storage bin, clearing the sensor, the red LED will keep flashing for 3
minutes. Then the unit will restart and return to the ice making mode.
2. Green LED: Ice Making indicator light.
