Electrical Connection
Four Conductor Wire Connection to Range
1. Remove the screws at the lower end of the rear access cover and take it down to expose range terminal
connection block.
2. Remove the screws to loosen the cable clamp and pass through the four-conductor wire from the
bottom of the range.
3. Loose the screws on the terminal block and connect the wire to terminals, after then, tighten the screws
of cable clamp and terminal block, please make sure that match the wire and terminals by color.
4. Put back the terminal cover and tighten the screws.

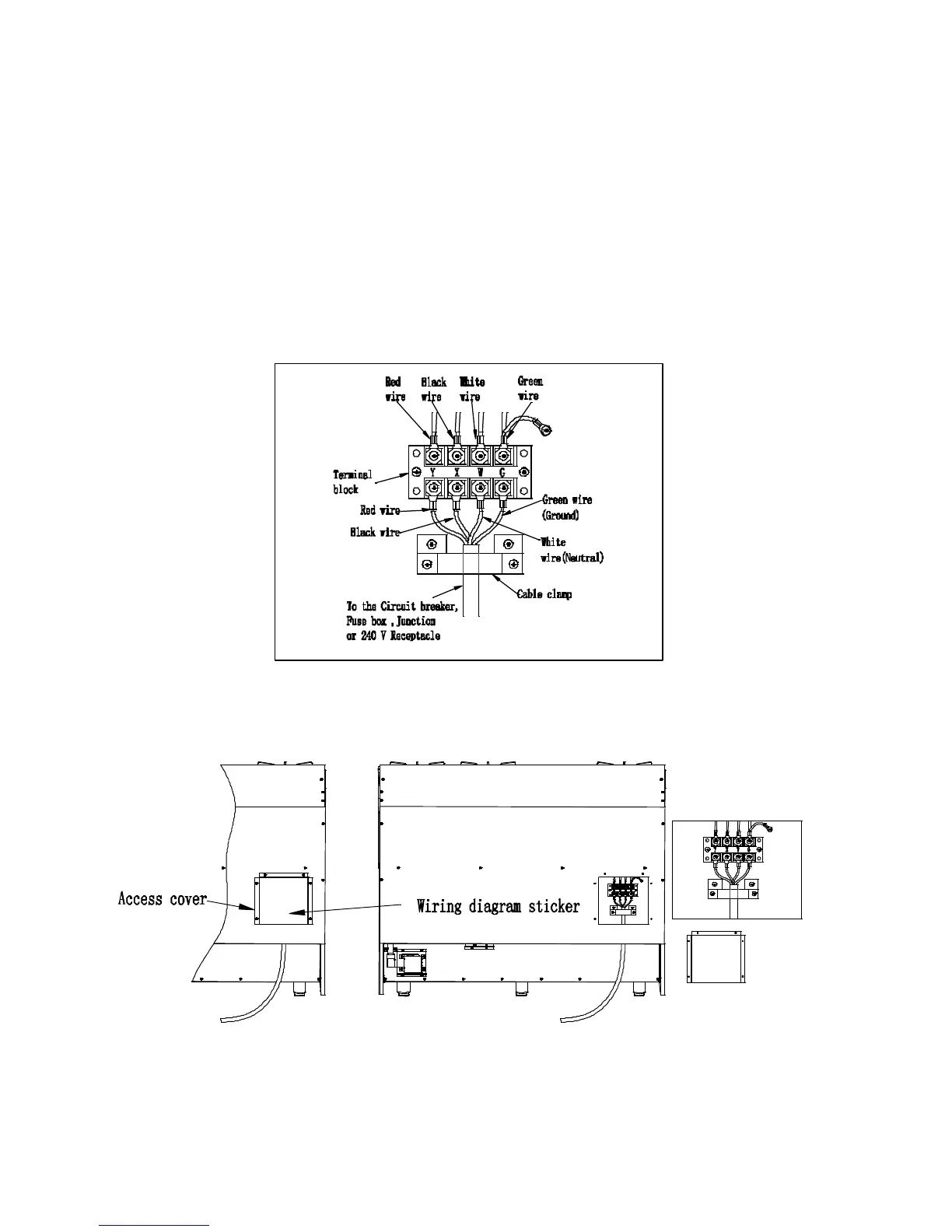

The wiring diagram for the terminal connection block stick on the access cover .
