THOR MOTOR COACH
CONTROLS AND OPERATIONS
42
InWall Slide Out
Keep people and obstructions clear of room when operating.
Manual Override
In the event that the InWall Slide Unit fails to operate and manual operation is necessary, proceed as follows:

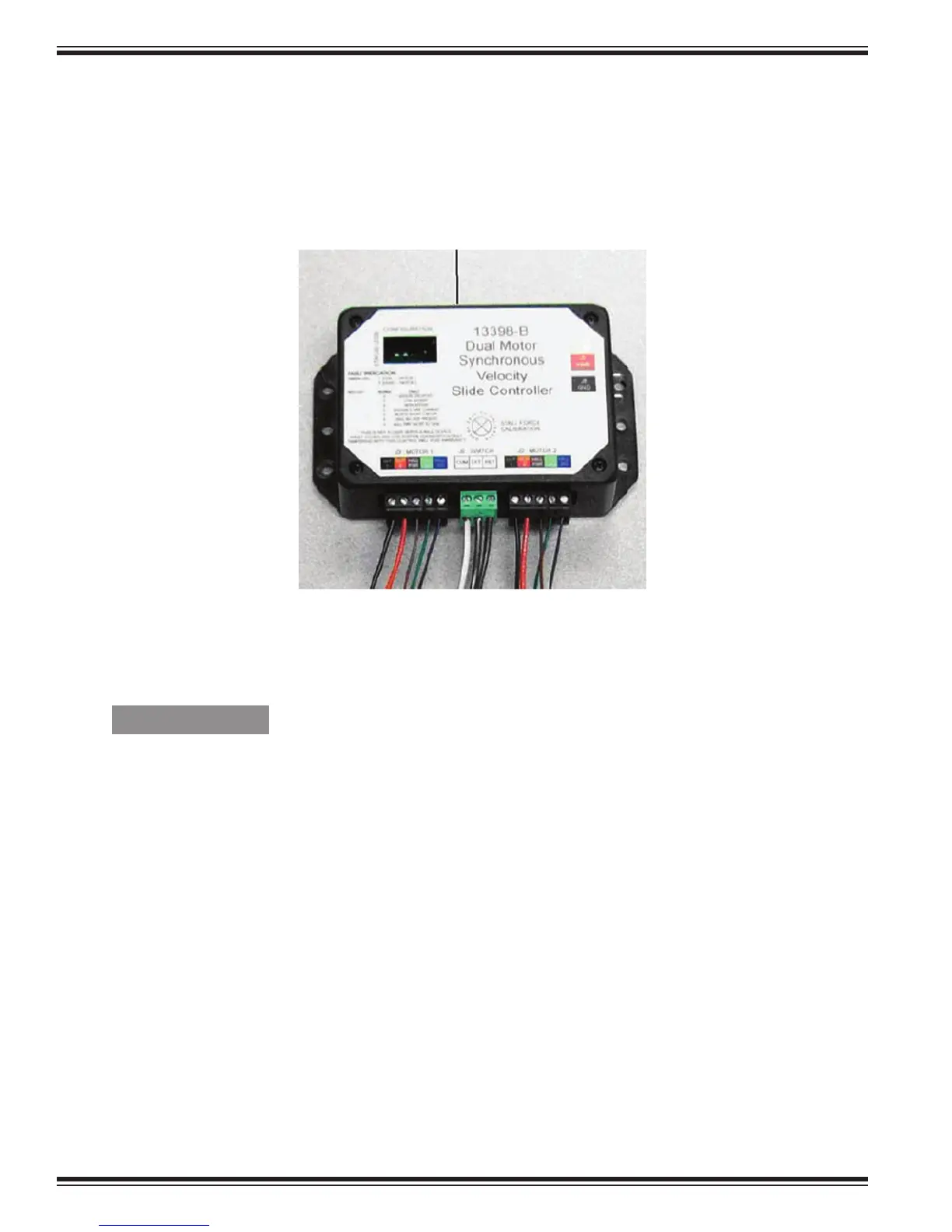

1. Locate the control board.
2. Unplug both motors.
3. The room may now be pushed in or out as desired. Larger rooms may need several people
to push. Try to keep both sides of the room even. When the room is completely in, plug both
motors back in to the controller, this applies a brake to the motors and keeps the room locked
in position.
DO NOT MOVE THE MOTOR HOME UNLESS THE MOTORS ARE PLUGGED IN.
If you are unable to move the room after following the above procedure, then both
motors will need to be disengaged.
NOTICE
