how to use the cam lock system
1.
2.
3.
4.
5.
1.
2.
3.

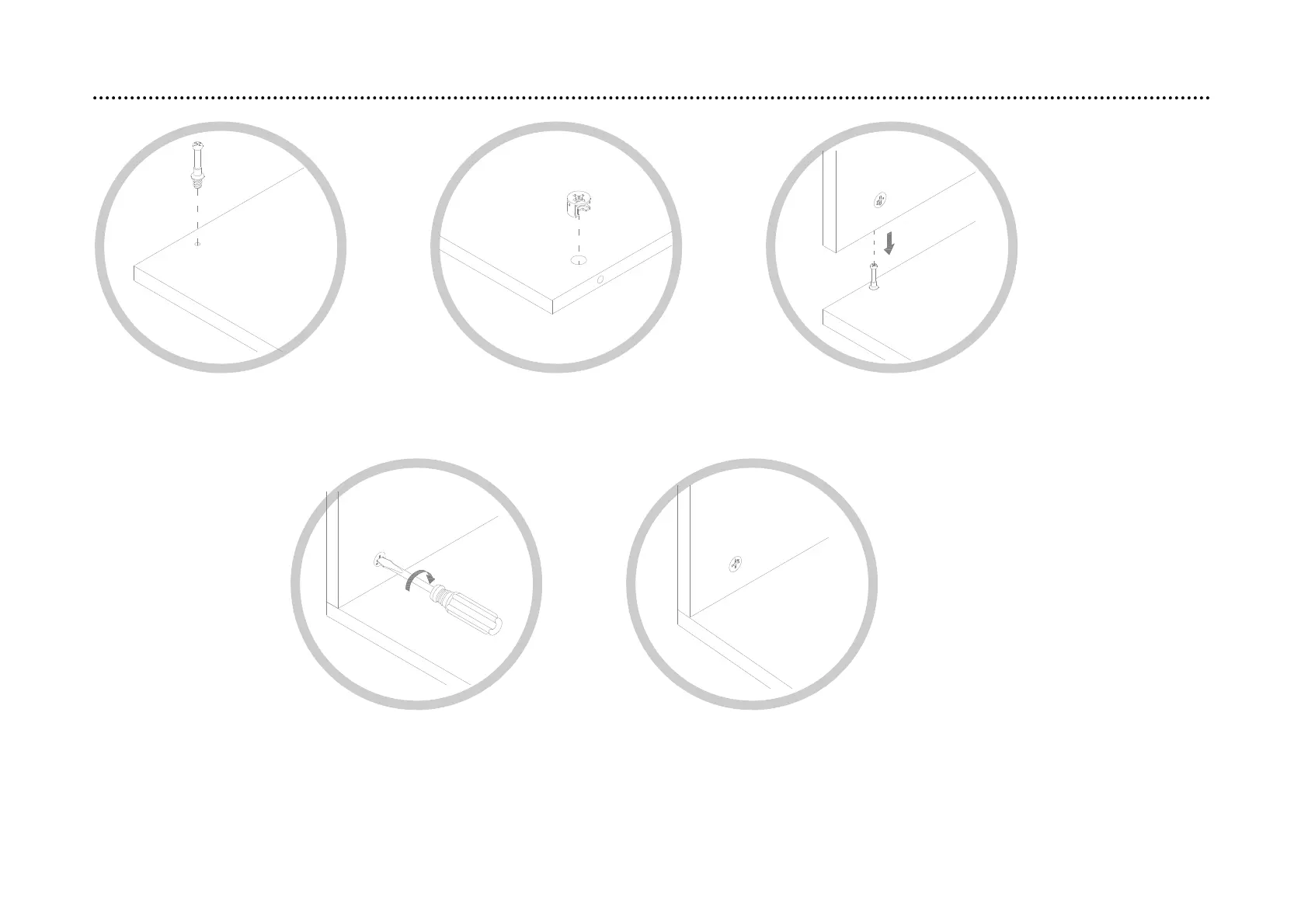

Screw cam bolt into panel
Push cam into panel - arrow
feature on cam top points to
panel edge
Align cam bolt(s) with cam(s)
and insert all the way into
cross-bored hole(s)
Rotate cam(s) clockwise
190°-230° to lock panels
together
Panels should be tight against
each other and connection
should be rigid
190°-230°
7
