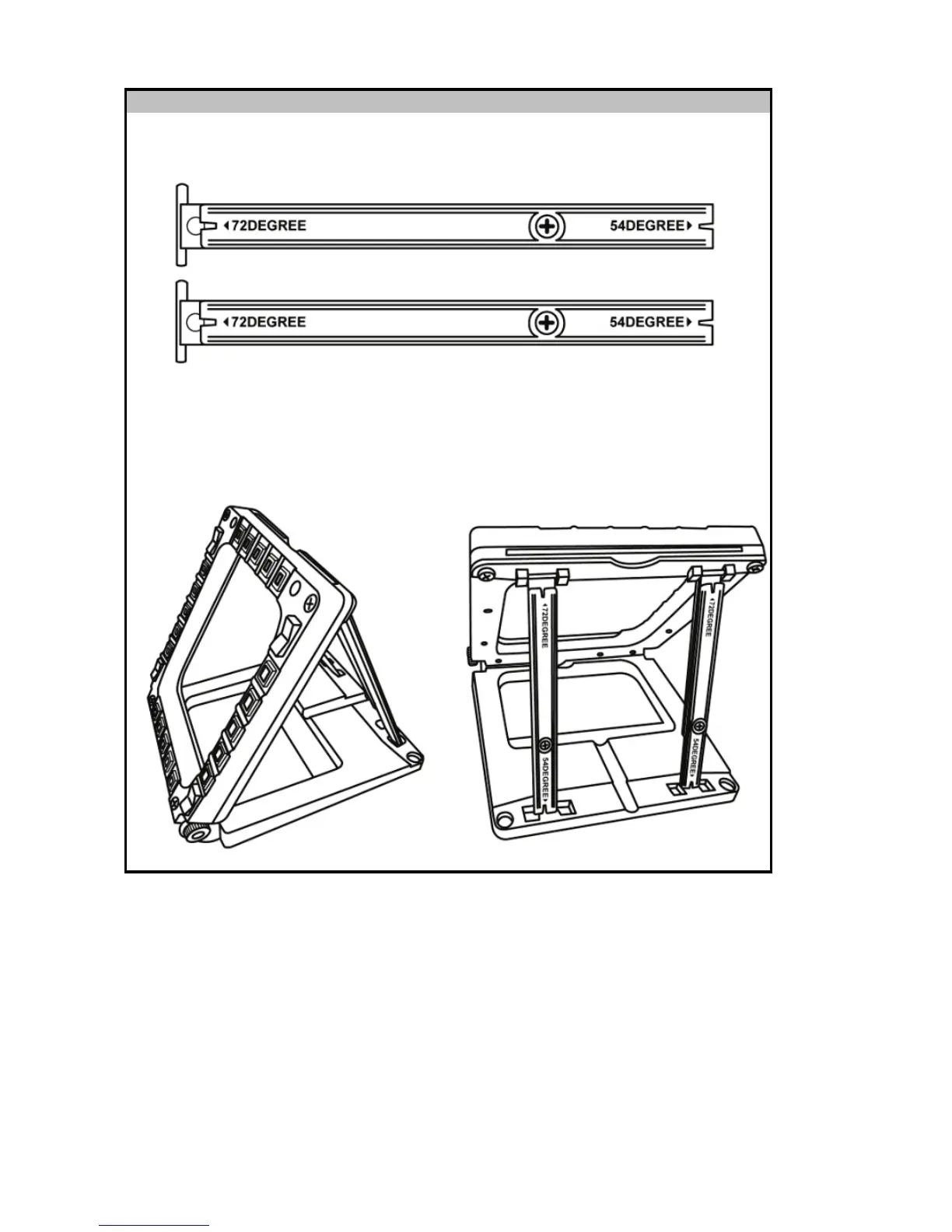

ADJUSTING THE ANGLE TO 54 DEGREES
- Place the 2 attachment rods, with the 54DEGREE indication facing down (if required,
slightly loosen the centre screw to facilitate angle adjustment).
- Insert the upper end of the rods in the attachment system (9) located at the back of the
MFD, on the device's upper side.
- Attach the lower end of the rods to the back of the base, then tighten the 2 attachment
thumbscrews (6).
