Thule 9031XT User Manual

506-7079
1
CARRIER AS
SEMBLY

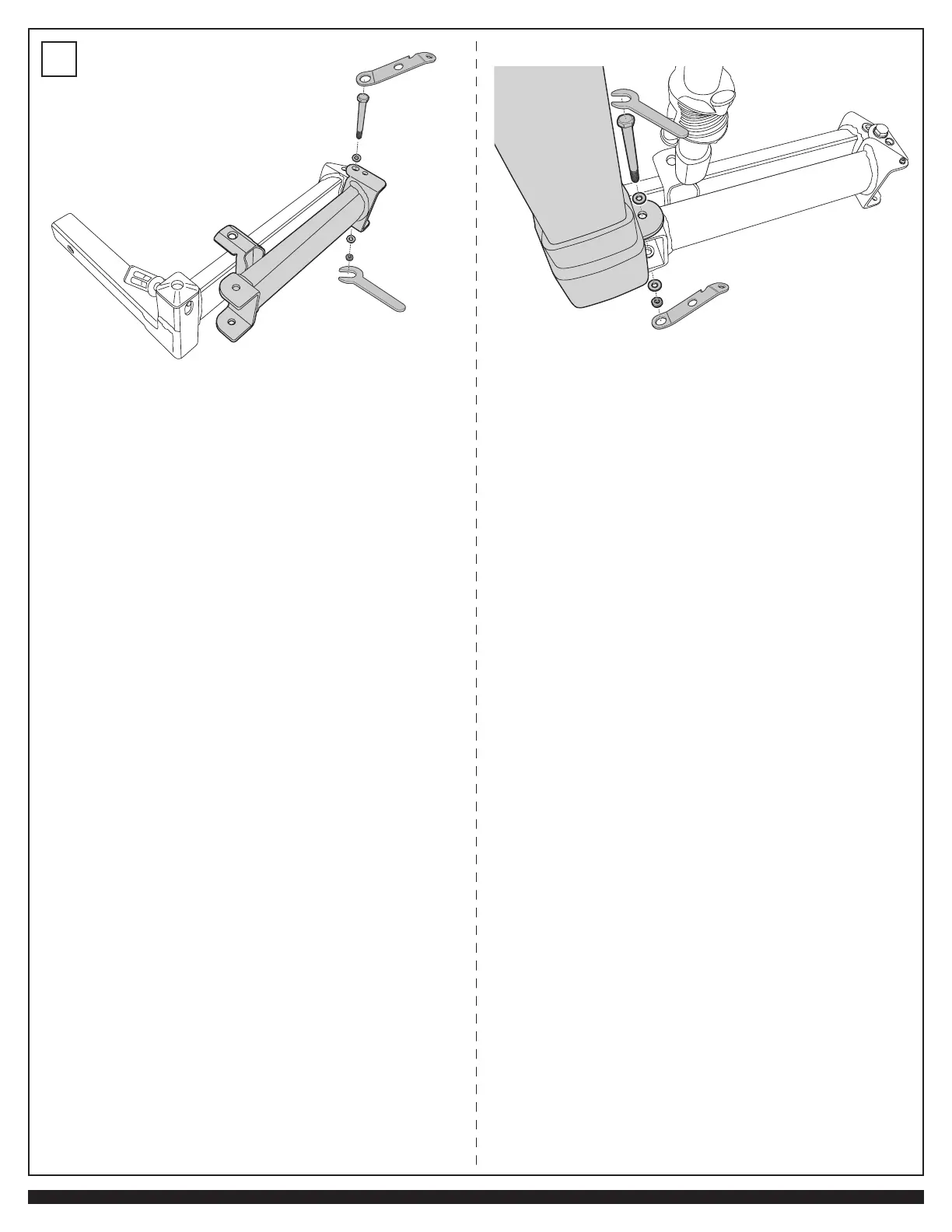

- A. Position s
tinger assembly in bracket of swing arm assembly as
illustr
ated.
- Install 1/
2 – 13 x 5.5” bolt, flat washer and lock nut as illustrated.
- Tight
en firmly using Thule tools provided.
CARRIER AS
SEMBLY
- B. Position upright as
sembly in swing arm assembly bracket as
illustr
ated.
- Engage lock-up pin and loosely thr
ead lower locking handle.
- Install 1/
2 – 13 x 5.5” bolt, flat washer and lock nut as illustrated.
- Tight
en firmly using Thule tools provided.
A B
