Thule Parkway 957 - Step 3: Mounting to Vehicle Receiver; Step 4: Attaching Bike Arm Assembly

501550902_02
3

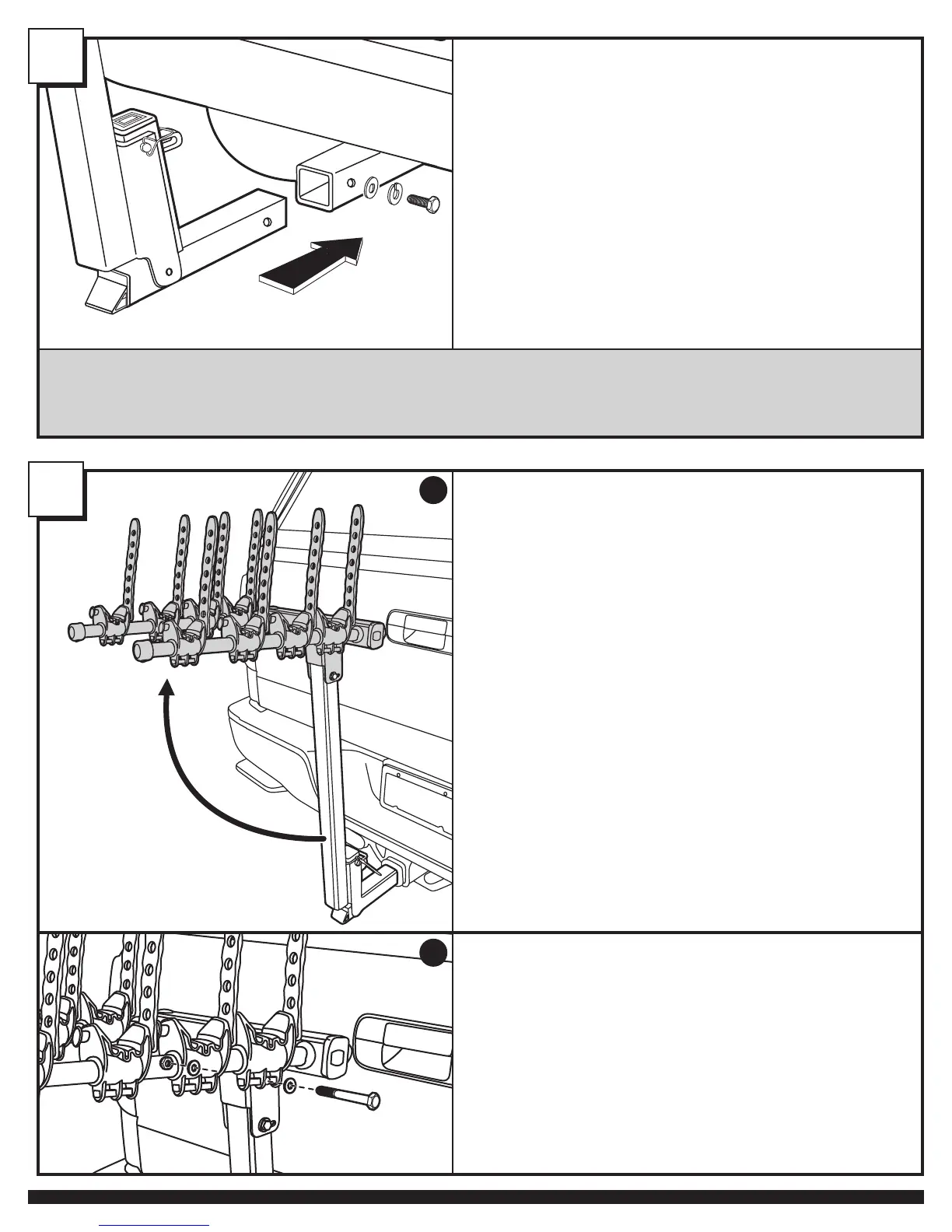

• Slide hitch into hitch receiver until hole in horizontal tube aligns with receiver hole.
Secure in position with M12 x 40 receiver bolt (G), M12 lock washer (F), and
M12 washer (H) as illustrated. Tighten firmly with 19mm or (3/4") socket wrench.
4
NOTE: Illustrations show 956 / 957 (2" receiver) application. Follow the same instructions for 958 (1 1/4" receiver).
•
Position
bike arm assembly in upright position as illustrated.
• Assemble 3/8" hex screw (E), M10 washers (C), and 3/8" lock (D) nut as illustrated.
• Tighten firmly.
A
B
