Appendix B: Connections
XLR Connectors
XLR connectors are used to make balanced input
and through connections to the TH-15A. They are
wired as follows, according to standards specified by
the AES (Audio Engineering Society).

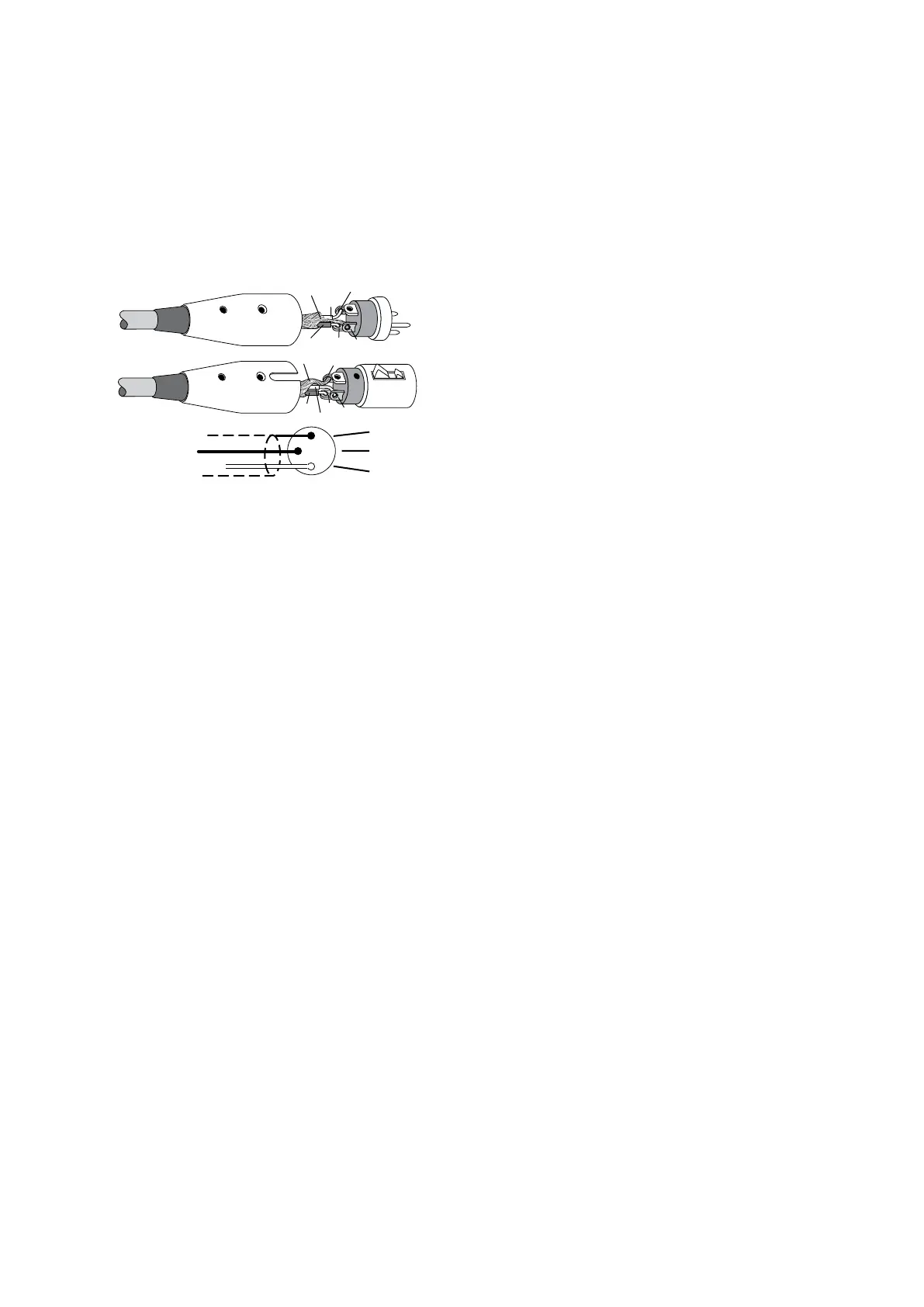

XLR Balanced Wiring
Pin 1 = Shield
Pin 2 = Hot (+)
Pin 3 = Cold (–)
2
2
3
1
1
SHIELD
COLD
HOT
SHIELD
COLD
HOT
3
SHIELD
COLD
HOT
3
2
1
