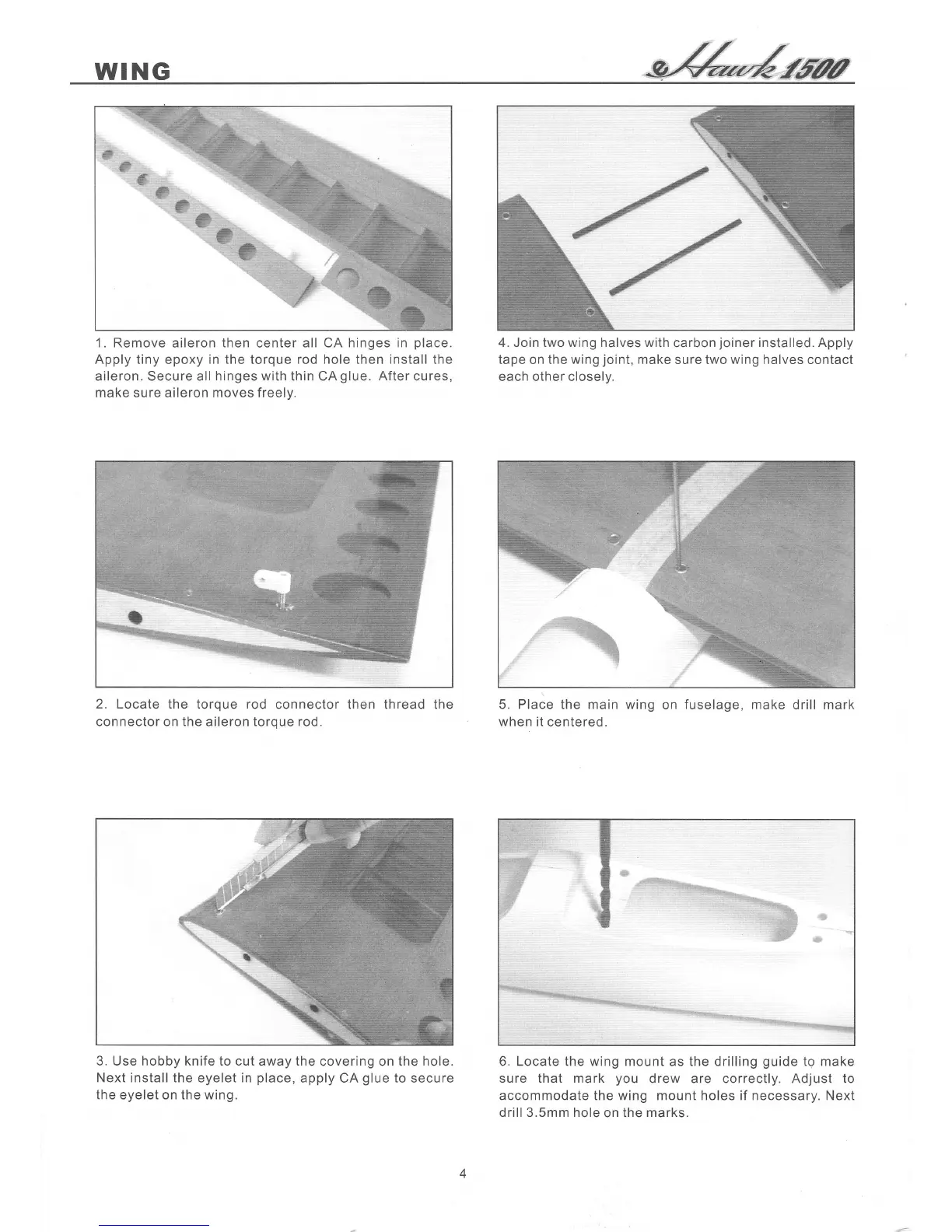

1. Remove
aileron
then
center
all CA hinges in
place.
Apply
tiny epoxy
in the torque rod hole then install the
aileron. Secure all
hinges with
thin CA
glue.
After
cures,
make sure aileron moves freelv.
2. Locate the torque rod
connector then thread the
connector on the aileron torque rod.
3. Use hobby knife to cut
away
the
covering on the
hole.
Next install the eyelet in
place,
apply CA
glue
to secure
the eyelet on the wing.
4.
Join
two wing halves with
carbon
joiner
installed. Apply
tape
on the
wing
joint,
make sure two
wing
halves contact
each other closelv.
5. Place the main
when it
centered.
wing
on
fuselage,
make drill mark
6. Locate the wing mount as the drilling
guide
tg make
sure that mark
you
drew are correctly. Adjust to
accommodate the wing mount holes if necessary. Next
drill
3.5mm hole
on the
marks.
