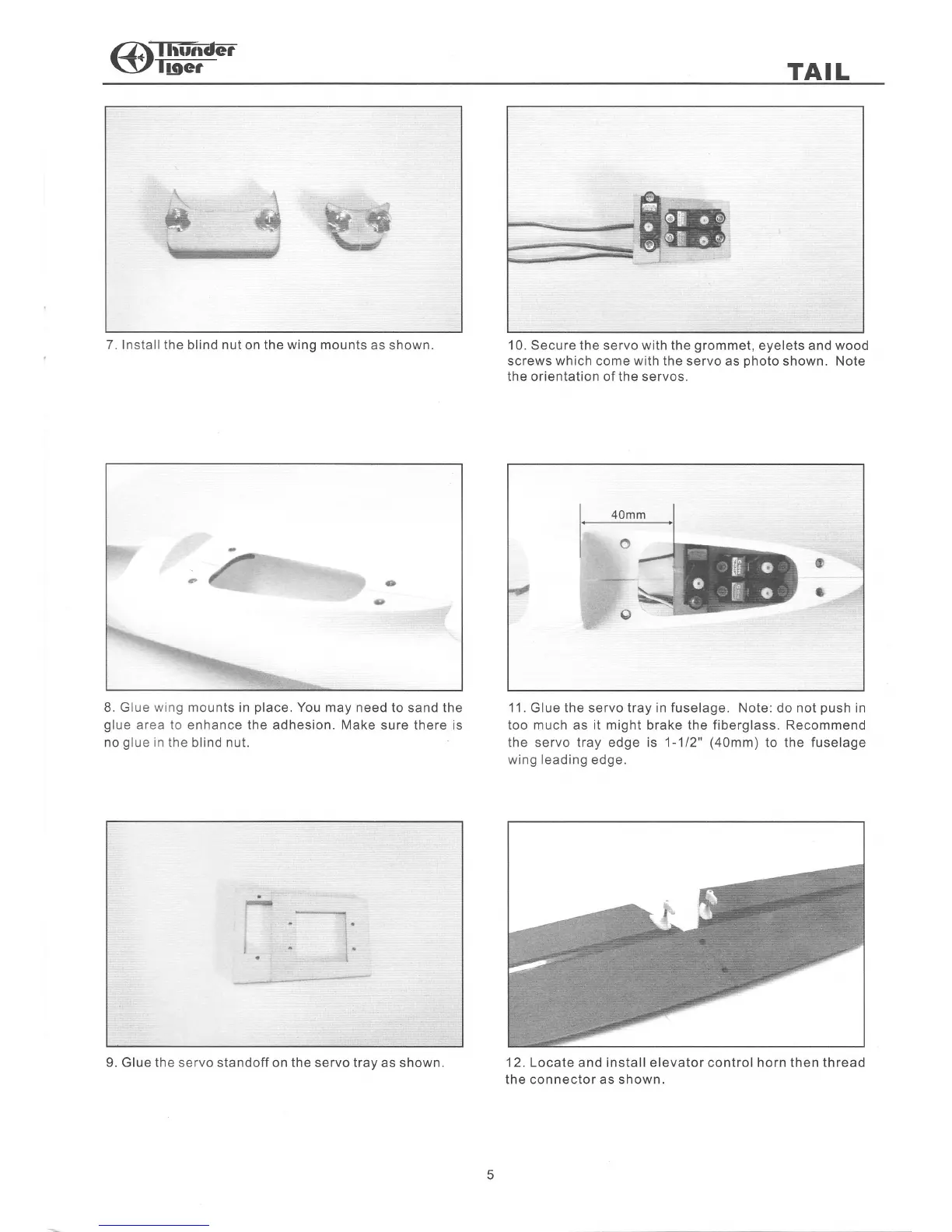

THUNDER TIGER eHawk 1500 User Manual

@lPr..-
TAIL
rt
.1
,,.
r.
.i
gl
',s{
'E
G
a_ ts
I'f:l
brd
:ffi
'
t..
7.
Installthe
blind nut on the wing mounts
as shown.
8. Glue
wing
mounts in
place.
You may need to sand the
glue
area to enhance the
adhesion.
Make
sure there is
no
glue
in the blind nut.
i.irf
I
il
I
"
1"
.l
10. Secure the
servo
with the
grommet,
eyelets and wood
screws
which
come
with
the servo as
shown. Note
the orientation of the servos.
a
j
11.
Glue the servo tray in
fuselage.
Note: do not
push
in
too much as it might brake the fiberglass. Recommend
the servo tray edge is 1-112"
(40mm)
to the fuselage
wing leading edge.
12. Locate
and
install
elevator control
horn then thread
the connector as shown.
9. Glue the servo
standoff on
the
servo tray as shown.
