THUNDER TIGER eHawk 1500 User Manual

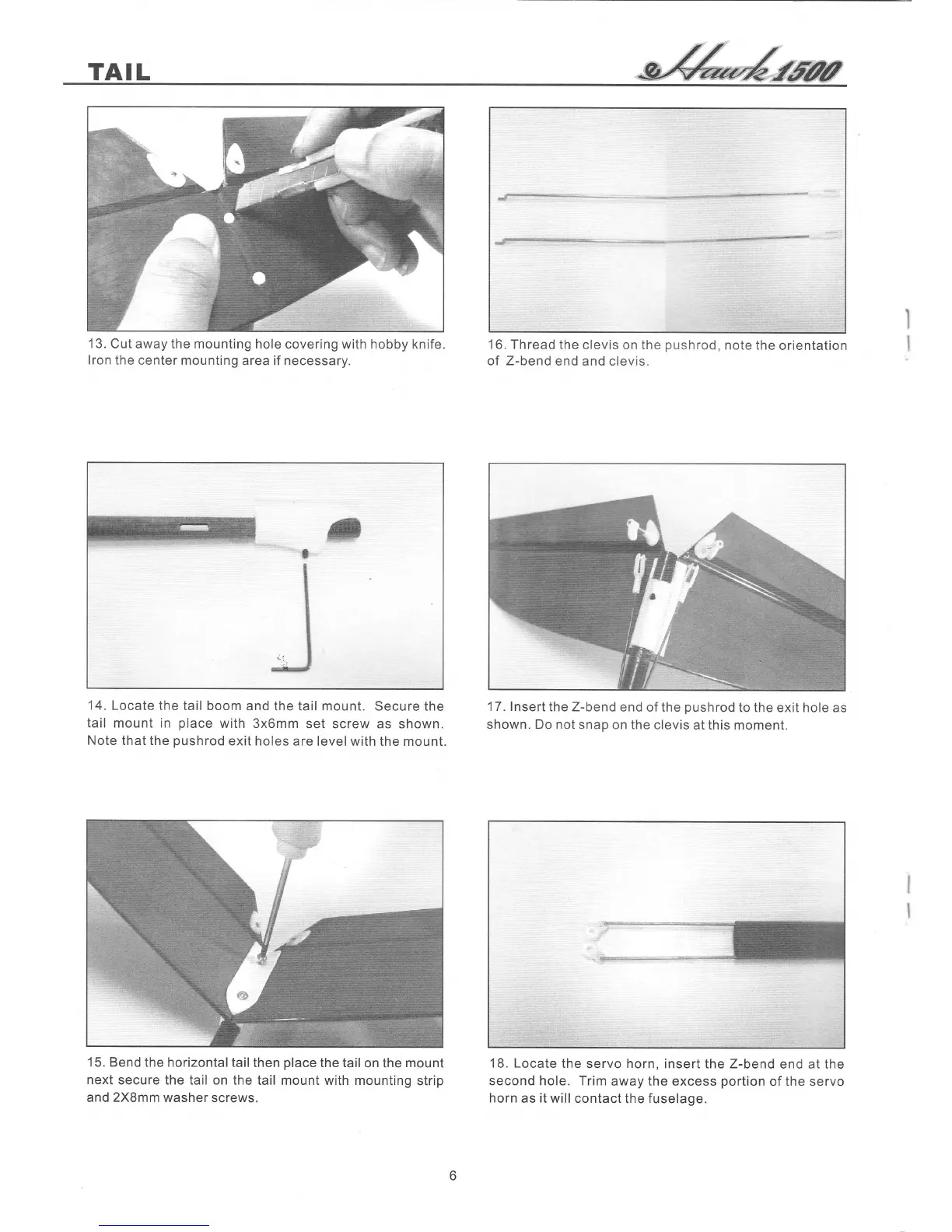

TAI L
I
13.
Cut away the mounting
hole covering with hobby knife.
lron
the center mounting
area if necessary.
14. Locate the
tail boom and
the tail mount.
Secure the
tail mount in
olace
with
3x6mm set screw as shown.
Note that the
pushrod
exit holes are
level with the mount
16. Thread the
clevis on the
pushrod,
note the
orientation
of Z-bend
end and clevis.
17. Insert
the Z-bend
end of the
pushrod
to the exit hole as
shown. Do not
snap on the clevis
at this moment.
18. Locate
the
servo
horn,
insert the Z-bend
end at the
second hole. Trim
away the excess
portion
of the servo
horn
as
it
will contact
the fuselage.
15. Bend
the horizontal tail
then
next
secure the tail on the
tail
and 2X8mm washer screws.
olace
the tail
on the
mount
mount with mounting
strip
