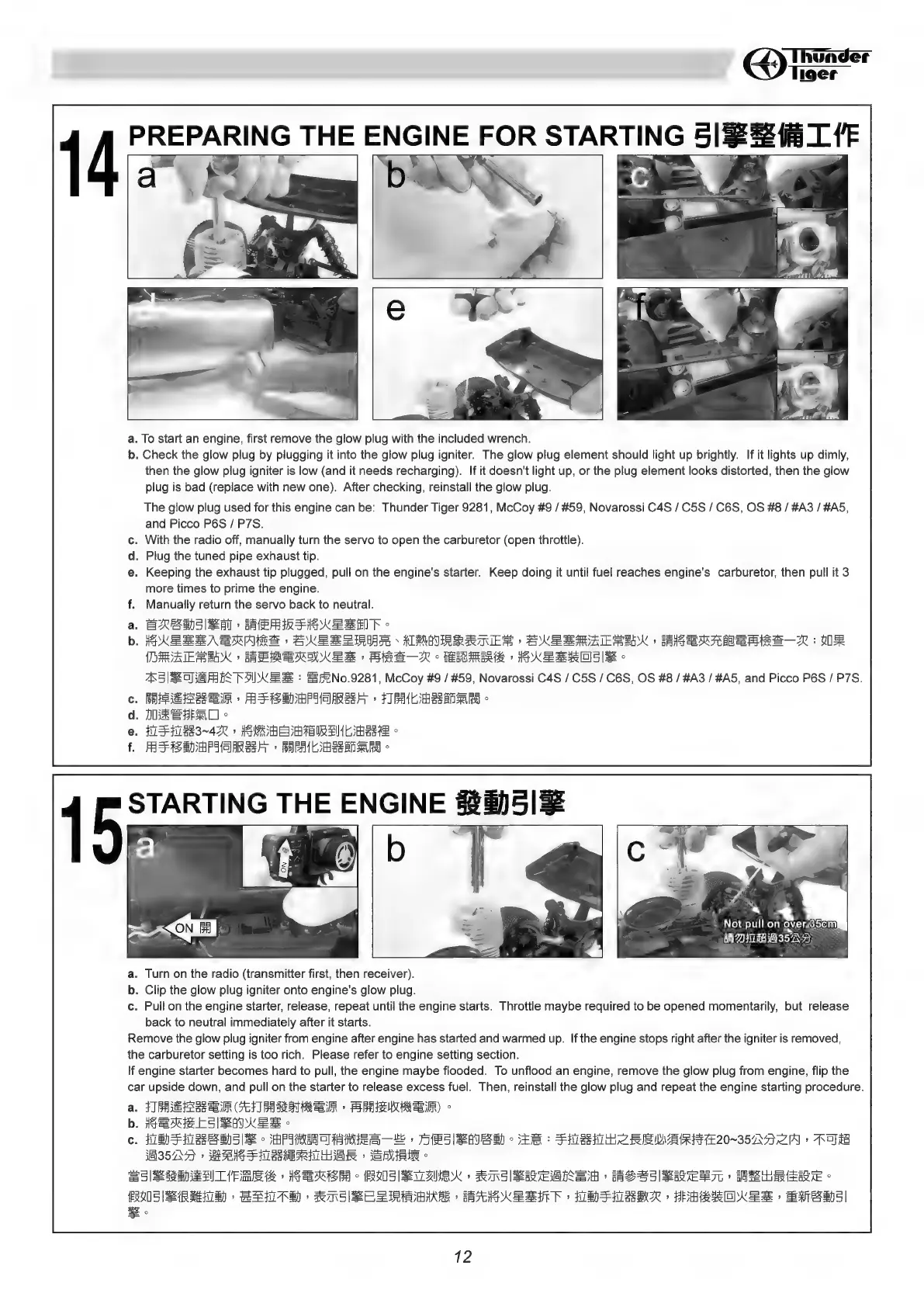

PREPARING THE ENGINE FOR STARTING SIS ESTE
. To start an engine, first remove the glow plug with the included wrench.
. Check the glow plug by plugging it into the glow plug igniter. The glow plug element should light up brightly. If it lights up dimly,
then the glow plug igniter is low (and it needs recharging). If it doesn't light up, or the plug element looks distorted, then the glow
plug is bad (replace with new one). After checking, reinstall the glow plug.
The glow plug used for this engine can be: Thunder Tiger 9281, McCoy #9 / #59, Novarossi C4S / C5S / C68, OS #8 / #A3 / #A5,
and Picco P6S / P78S.
. With the radio off, manually turn the servo to open the carburetor (open throttle).
. Plug the tuned pipe exhaust tip.
. Keeping the exhaust tip plugged, pull on the engine's starter. Keep doing it until fuel reaches engine's carburetor, then pull it 3
more times to prime the engine.
Manually return the servo back to neutral.
. EXCESS] [SEBI » PRR ENERET °
. EEEESESEAGE ERARE » EAERFERPA - ARR RRTER o EDACESERUATERE RD. ^ PIEKABES : UR
DAER ^ SBEBIREEZCEN C EE3E PEAN o ERRER C IDACRBEEXSUISIE o
ASZT ARS FINER : ETENO.9281, McCoy #9 / #59, Novarossi C4S / C5S / C6S, OS #8 / #A3 | #A5, and Picco P6S / P7S.
. HRED” FHzRESSUBPHSH TIBSGBSSBDSRES ^
. DU EEBESRLI °
. HIS BISS3-420 ^ ANS BRENGE o
Füzrse SPIKE SSH» ARO baia ^
STARTING THE ENGINE 8$8/5|Z
* Not puli on Over
5827 ju E838 KEYA
a. Turn on the radio (transmitter first, then receiver).
b. Clip the glow plug igniter onto engine's glow plug.
c. Pull on the engine starter, release, repeat until the engine starts. Throttle maybe required to be opened momentarily, but release
back to neutral immediately after it starts.
Remove the glow plug igniter from engine after engine has started and warmed up. If the engine stops right after the igniter is removed,
the carburetor setting is too rich. Please refer to engine setting section.
If engine starter becomes hard to pull, the engine maybe flooded. To unflood an engine, remove the glow plug from engine, flip the
car upside down, and pull on the starter to release excess fuel. Then, reinstall the glow plug and repeat the engine starting procedure.
a. TIBEETSESEER HARRE BER) *
b. FERE [LS [SERJ WW EE o
c. HEFE BPO Tode E o JEBS[SEBUERSD » IE: FRA RIEDUBURRHE20-3573 2:2 VJ : pE
18352373 : SEESEUET MERALAR o SPIRI °
sS [SEES SIT ERIS GS ^ AERA ^ TEXGUS ISEVLZUSM. ^ xS SERE XS EEDEL ^ aS ISEBVGERBTL ^a
BRAUSERIS » EZB UASU » RTRC ^ ERST URECACEETT P o BISISRIUSSEIXC ^ HEB
BE.
