4

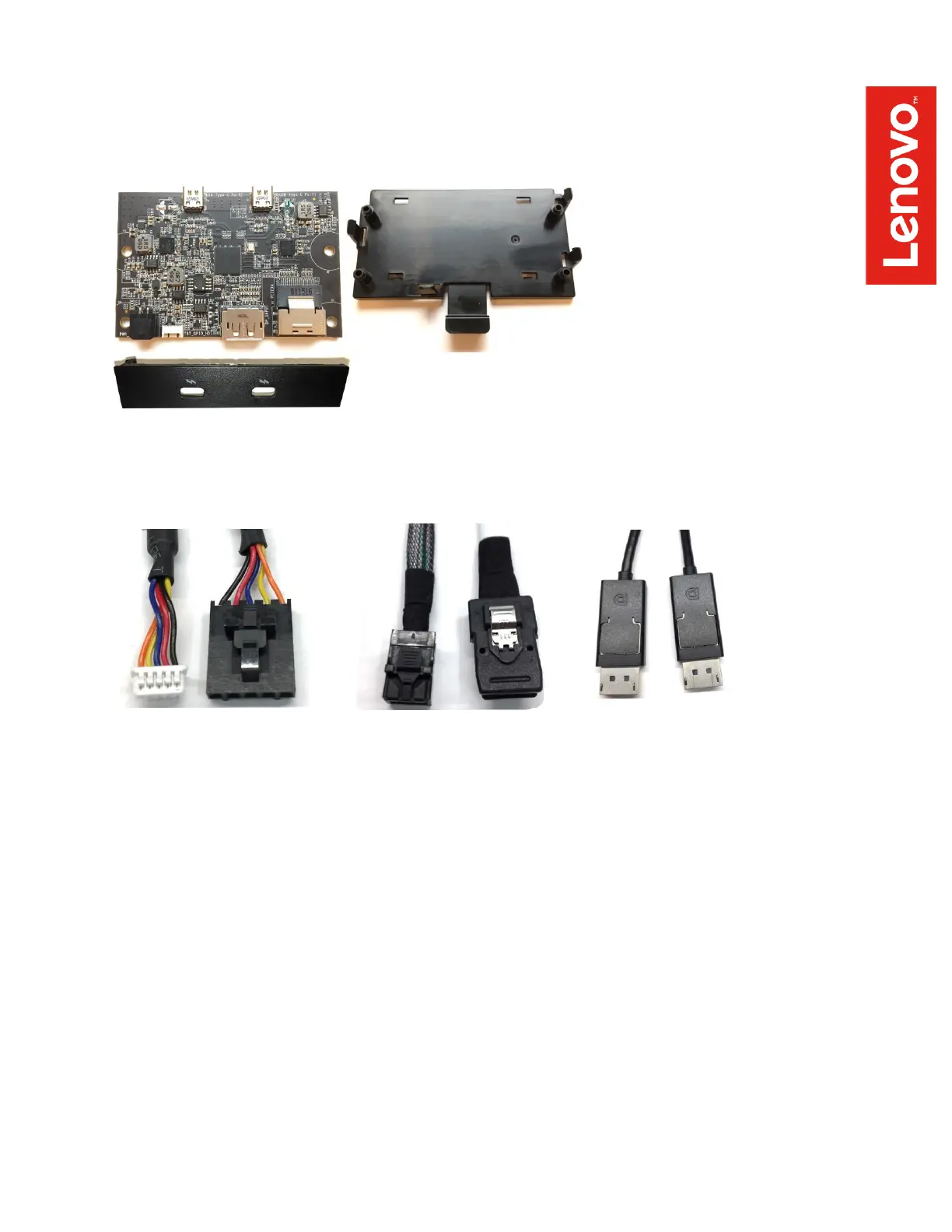

Front panel IO circuit board, bracket, and bezel
Cable connector details (total cable length)
GPIO (600mm)
Mini-SAS (650mm)
Internal DP to DP (650mm)
