Programming Remote to work with the EZ Flow
Trap System

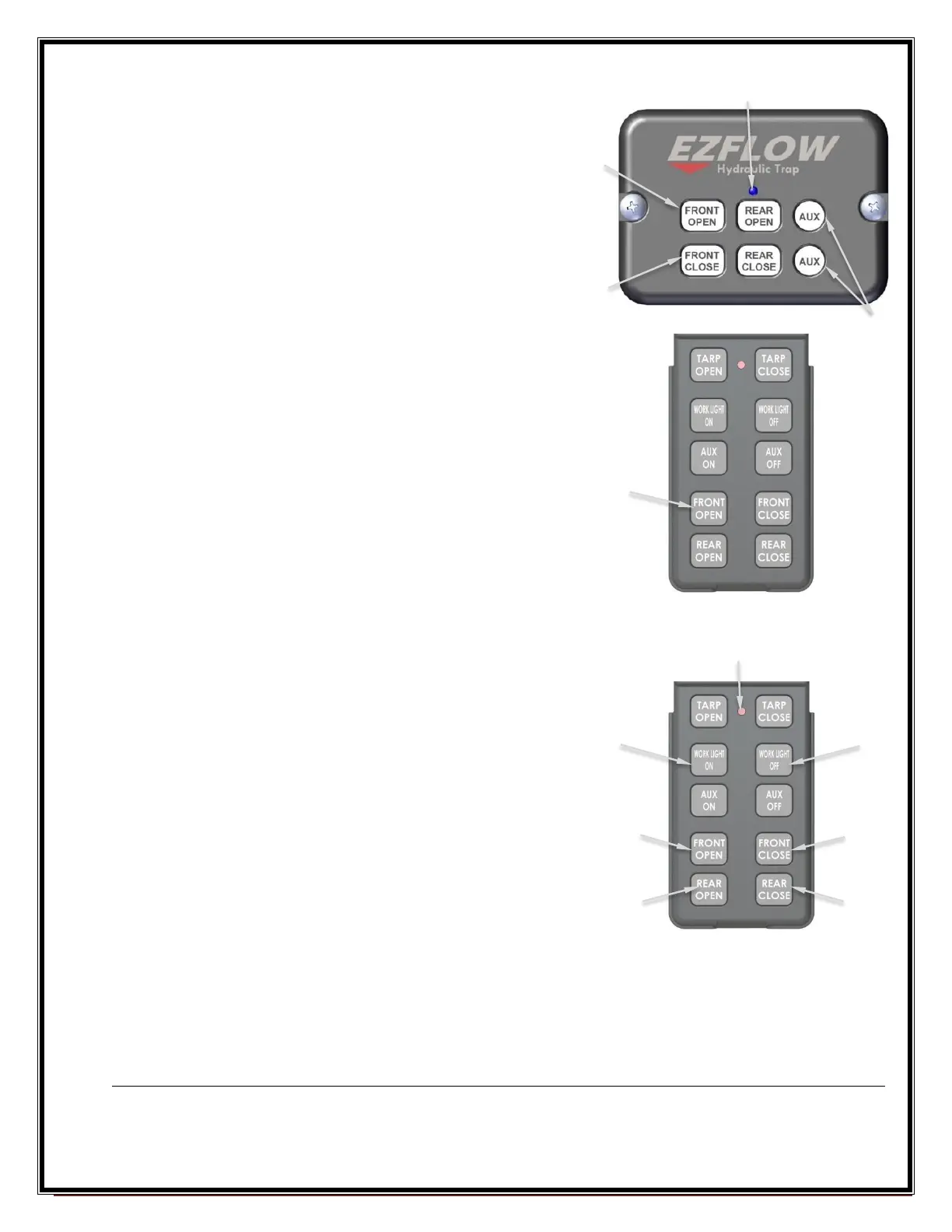

1. Power on the keypad controller on the trailer by holding the
“FRONT OPEN” and “FRONT CLOSE” buttons on the
keypad simultaneously for 3-5 seconds or until the blue
light illuminates to indicate the system is activated.
2. Open the flip lid on the remote and observe the
illuminated buttons to indicate the remote is active.
3. Repeat step 2 for each remote to be programmed. Up to four
remotes can be programmed. Have all remotes ready for
steps 4 & 5. Ignore if only one remote is to be
programmed.
4. Press and hold the two “AUX” buttons on the keypad
controller simultaneously for 10 seconds until the blue
flashing light stays solid then release. The light on the keypad controller
should start flashing violet.
5. Press and hold the “FRONT OPEN” button on the remote for 2 seconds
or until the blue flashing light on the keypad turns white then
release the button. The keypad light on the trailer should then
continue blinking violet.
6. Repeat step 5 for up to four remotes to be programmed. Ignore if
only one remote is being programmed.
7. Once all remotes are programmed press the top “AUX” button to exit
programming or let the system timeout after 10 seconds. The keypad
controller light will flash twice red indicating the remotes have been
saved.
Operating Remote with the EZ Flow
Trap System
Powering up or down the system
Open the remote flip lid and observe the buttons illuminate
indicating the remote is active.
Press and hold the “FRONT OPEN” and “FRONT CLOSE”
buttons on the remote simultaneously for 3-5 seconds or until
the blue light on the keypad controller illuminates to indicate the
system is activated.
Repeat the above steps to turn off the EZ Flow Trap System.
To use the front hopper doors
Press and hold the desired directional button to open or close the front
doors. The hopper door will travel in that directuion until the button is
released.
To use the rear hopper doors
Press and hold the desired directional button to open or close the
rear doors. The hopper door will travel in that direction until the
button is released.
To control work lights (optional) Automatically configured – no programming necessary.
On the trailer keypad press and release the top “AUX” button to turn on or off the worklights.
On the remote press the “WORKLIGHT ON/OFF” button to turn on or off the worklights.
If worklight & AUX buttons are reversed, unplug worklight from dual plug harness and plug into secondary plug.
When any button on the remote is pressed, the status LED will flash rapidly indicating it is transmitting a signal.
The status LED on the remote will flash continuously when the remote batteries have 25% charge left.
Always close the remote lid when not in use to prevent accidental button presses that can cause unwanted operation
of the tarp or trap systems. When flip lid is in the closed position the remote is deactivated.
