Programming Remote to work with the EZ Flow Trap & Hatch System
1. Power on the keypad controller on the trailer by holding
the “HOPPER OPEN” and “HOPPER CLOSE” buttons on
the keypad simultaneously for 3-5 seconds or until the
blue light illuminates to indicate the system is activated.
2. Open the flip lid on the remote and observe the
illuminated buttons to indicate the remote is active.
3. Repeat step 2 for each remote to be programmed. Up
to four remotes can be programmed. Have all remotes
ready for steps 4 & 5. Ignore if only one remote is to be
programmed.
4. Press and hold the “WORK LIGHT” & “AUX” buttons on
the keypad controller simultaneously for 10 seconds
until the blue flashing light stays solid then release.
The light on the keypad controller should start flashing violet.
5. Press and hold the “HOPPER OPEN” button on the remote for 2 seconds
or until the blue flashing light on the keypad turns white, then release
the button. The keypad light on the trailer should then continue
blinking violet.
6. Repeat step 5 for up to four remotes to be programmed. Ignore if
only one remote is being programmed.
7. Once all remotes are programmed press the top “WORK LIGHT” button
to exit programming or let the system timeout after 10 seconds. The
keypad controller light should flash twice red indicating the remotes
have been saved.
Operating Remote with the EZ Flow Trap & Hatch System
 Powering up or down the system
 Open the remote flip lid and observe the buttons illuminate
indicating the remote is active.
 Press and hold the “HOPPER OPEN” and “HOPPER CLOSE”
buttons on the remote simultaneously for 3-5 seconds or until the
blue light on the keypad controller illuminates to indicate
the system is activated.
 Repeat the above steps to turn off the EZ Flow Trap &
Hatch System.
 To use the hopper doors
 Press and hold the desired directional button to open or
close the hopper doors. The hopper door will travel in that
directuion until the button is released.
 To use the top hatch door
 Press and hold the desired directional button to open or close the top hatch
door. The hatch door will travel in that direction until the button is released.
 To control work lights (optional) Automatically configured – no programming necessary.
 On the trailer keypad press and release the top “WORKLIGHT” button to turn on or off the worklights.
 On the remote press the “WORKLIGHT ON/OFF” button to turn on or off the worklights.
If worklight & AUX buttons are reversed, unplug worklight from dual plug harness and plug into secondary plug.
 When any button on the remote is pressed, the status LED will flash rapidly indicating it is transmitting a signal.
 The status LED on the remote will flash continuously when the remote batteries have 25% charge left.
 Always close the remote lid when not in use to prevent accidental button presses that can cause unwanted operation
of the tarp or trap systems. When flip lid is in the closed position the remote is deactivated.

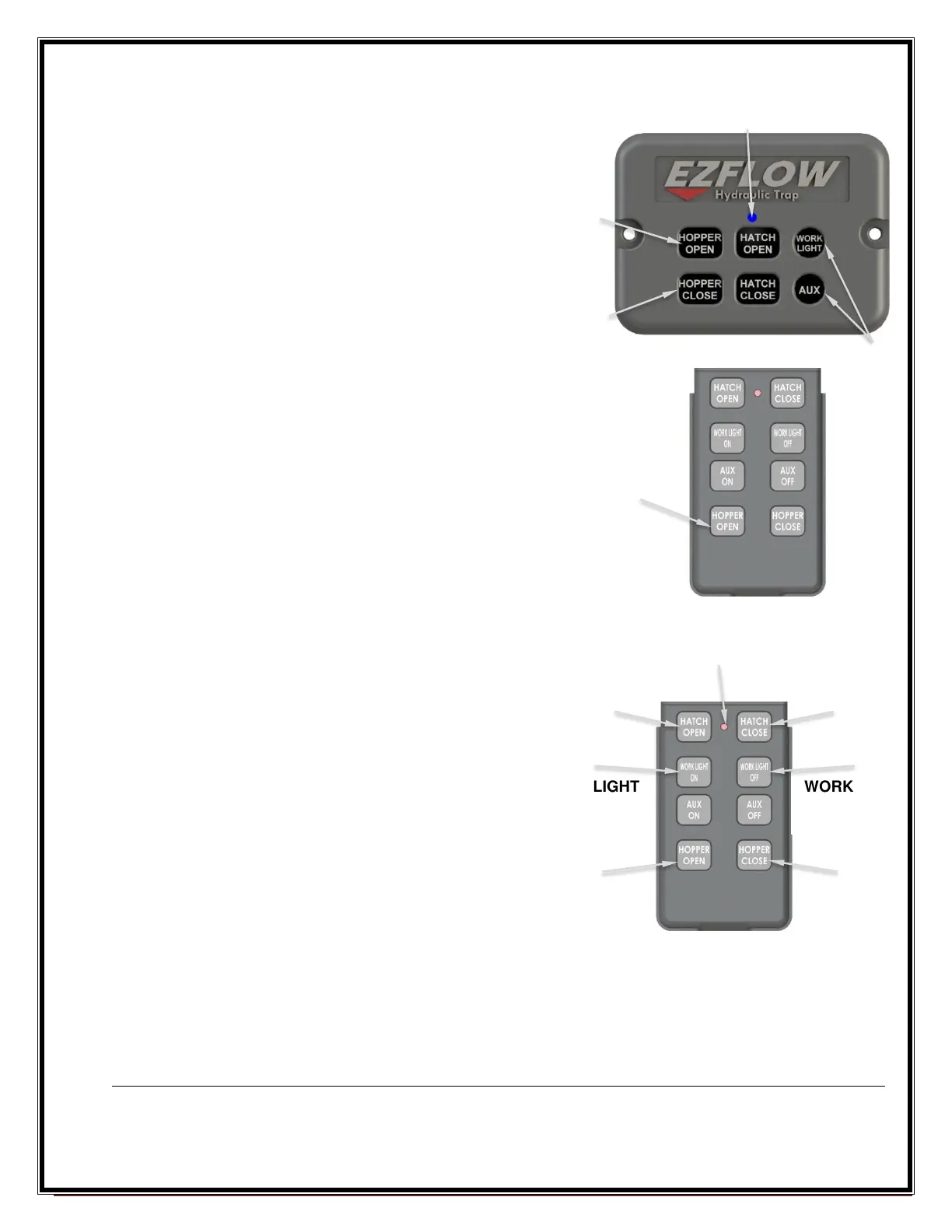

Status
