01/09/2014 Orion Optional Installation Manual
10
4.1. Connections
Ensure that the jumper JP8 (see Fig.17) is in position 1-2 or
towards the outside (manufacturer's settings).

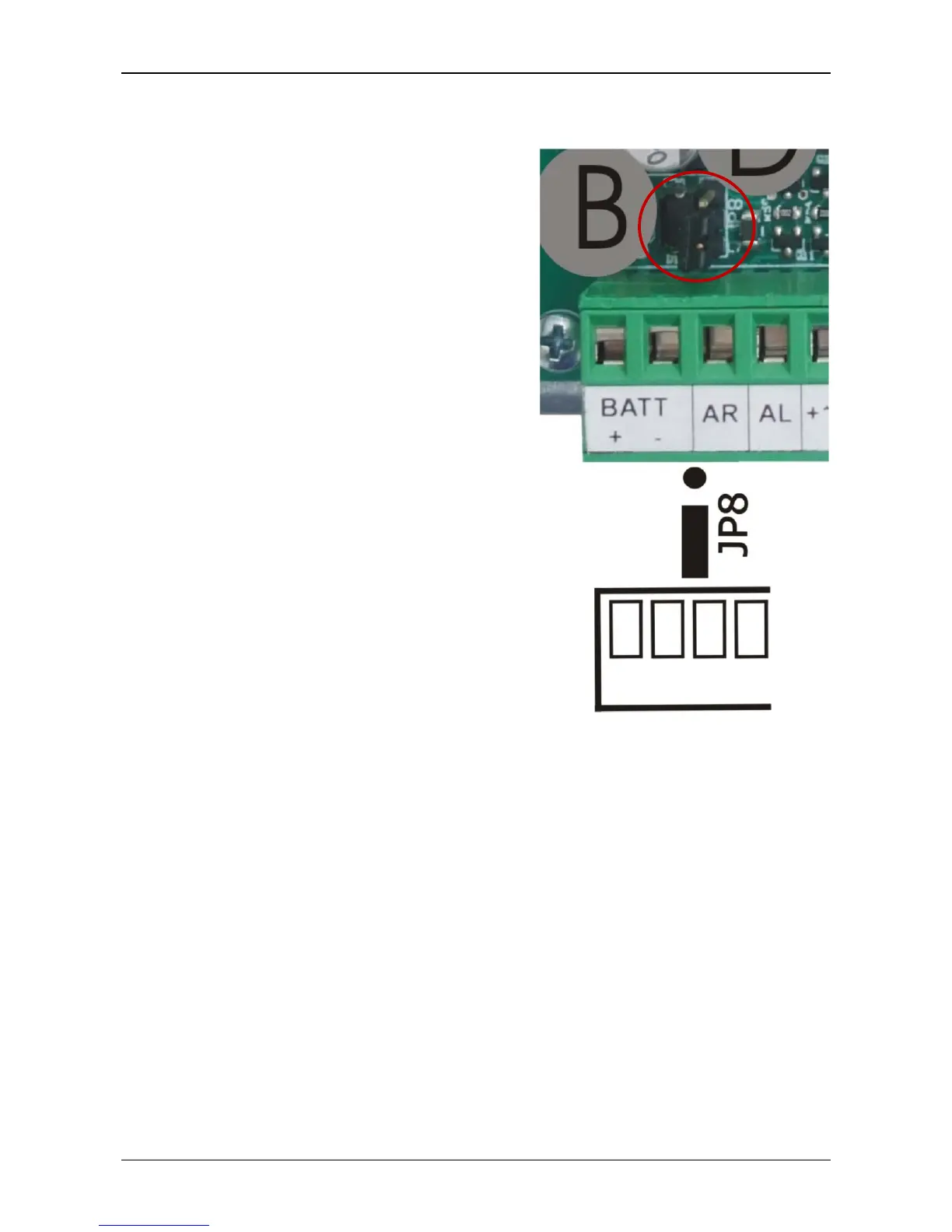

Figure 17 – Jumper JP8 position
Connect the telephone line to the LTI terminal board on the
optional board (See Fig.16 detail N).
Connect the telephone supplied (to be used for programming
of the Helpy Star module and as an entry phone) to the RG11
terminals (local telephone) (see fig 16 detail G).
Connect the power cable plug to the Schuko outlet inside the
electrical panel or cut the plug and connect it to the R N
terminal board block.
In addition, connect the battery cable inside the combiner
(red cable). Upon turning on, check that the 'Helpy Activity'
LED (see fig.16 detail P) stays on for approximately 5
seconds, before starting to flash.
