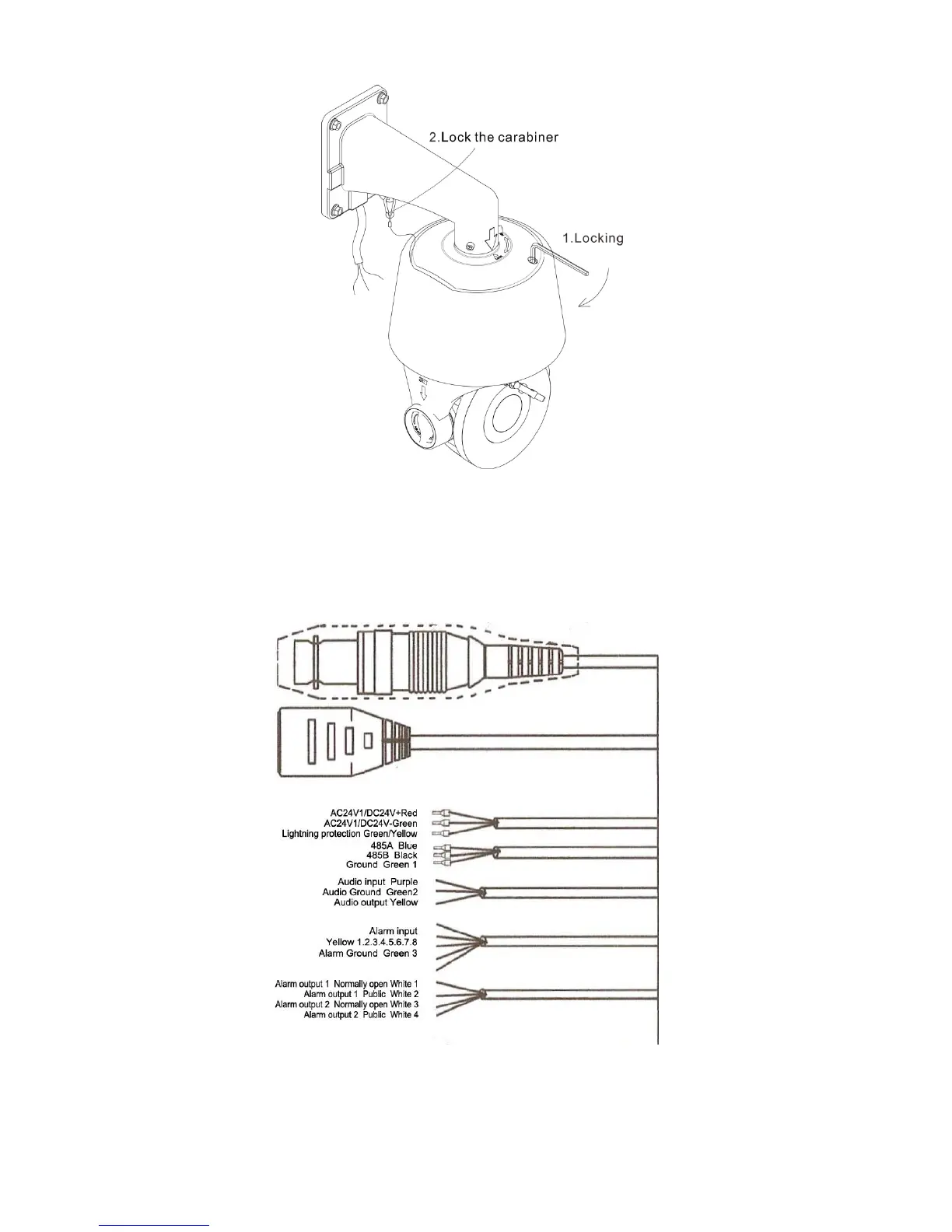

4.5 External Cable Connection Instruction
The speed dome adopted 800mm lead wire, including: power, control (Internet), audio
input, audio output, video, alarm input, alarm output and RS485 cables, and RS485 is
reversed cable. Connection interface and cable colors are as following:
Video Cable： BNC video cable can connect with monitor or other analog video devices;
Control Cable：Connect computer or other devices;
