TiCad LIBERTY - Setting Up Your TiCad Liberty Trolley; Attaching the Wheels

2
YOUR TICAD LIBERTY IN DETAIL
1 Twist-grip control
2 Drawbar leather handle
3 Single button (concealed)
4 Umbrella adapter
5 Score nuts
6 Drawbar
7 Drawbar adjuster
8 Top bag holder
9 Fastening straps
10 Centre bar
11 Motor bar
12 Sliding sleeve
13 Drive wheel made of titanium
14 Battery holder
15 Battery connection
16 Bottom bar
17 Bottom bag holder
18 Knurled sleeve
19 Front shaft
20 Front wheel made of titanium

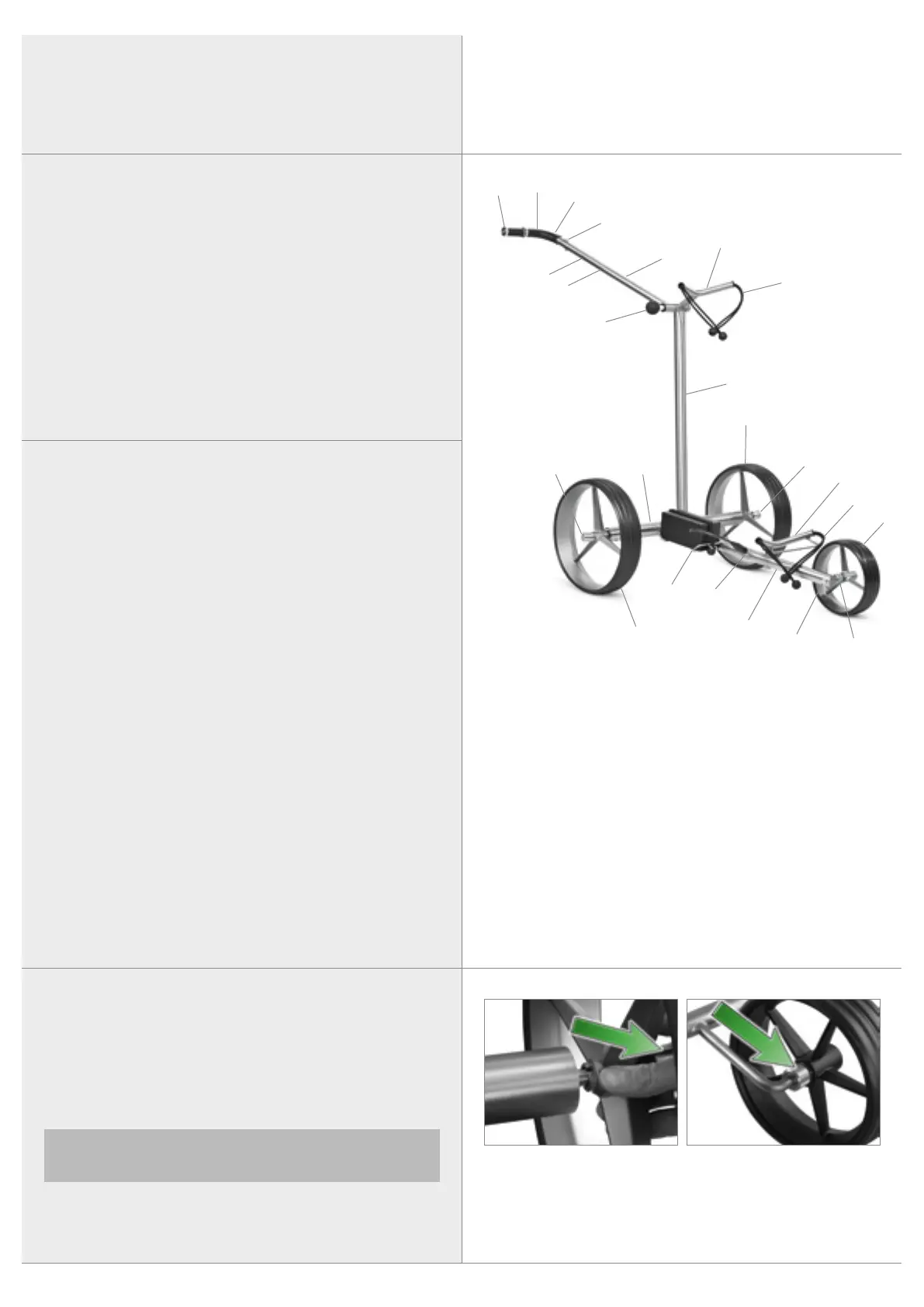

Image:
TiCad Liberty with twist-grip control, also available as
TiCad Liberty with dual button control
READ ME FIRST
TiCad LIBERTY
Congratulations!
You have chosen an excellent product manufactured by TiCad! All
of our high-quality products are carefully handmade at our pro-
duction facility in Altenstadt (Hessen, Germany).
To ensure that you will be able to enjoy your trolley for a very
long time, please take some time to carefully read through these
operating instructions, which contain important information that
will make using your trolley a lot easier.
If you have any further questions regarding the use or care of your
trolley, please contact your specialist dealer.
We would like to wish you many enjoyable games
of golf and a lot of success! Your TiCad team.
Removing and attaching
the drive wheels
Removing and attaching
the front wheel
SETTING UP YOUR TROLLEY
Attaching the wheels:
The drive wheels can be attached and removed with a quick
release fastener by pushing the sliding sleeve at the wheel hub
(see arrow). Make sure the drive wheels are locked to the drive
pins appropriately.
Always make sure that no dirt gets into the hub. The hubs
must not be oiled or greased.
The front wheel can be attached and removed by pulling back the
knurled sleeve (see arrow). When attaching the wheels, slightly
turning the sleeve can make it easier for the wheels to engage.
