CAB PRO-SPOTTER
Inspection
• Clean all parts of dirt and debris.
• Inspect hydraulic hoses, fittings, and clamps for
leaks, holes, cracks, and loose connections. Replace
parts found to be unserviceable.
• Check all threaded components for damaged or
stripped threads. Repair light damage with thread
chasers. Replace parts found to be unserviceable.
• Inspect cab tilt cylinder for damage. Repair or replace
as needed.
Installation
Installation is the reverse of the removal procedure.
• Check cab tilt system fluid level. (See “Cab Tilt
Hydraulic Fluid Filling” on page 13-12.)
CAB TILT HYDRAULIC FLUID
MAINTENANCE
Cab Tilt Hydraulic Fluid Draining
See Figure 13-19.
1. Park and prepare tractor for service. (See “Park
Tractor Safely” on page 1-3.)
2. Lower cab completely and allow it to settle into full
resting position.
3. Remove cab tilt pump cover. (See “LEFT COVERS
AND GUARDS” on page 14-8.)

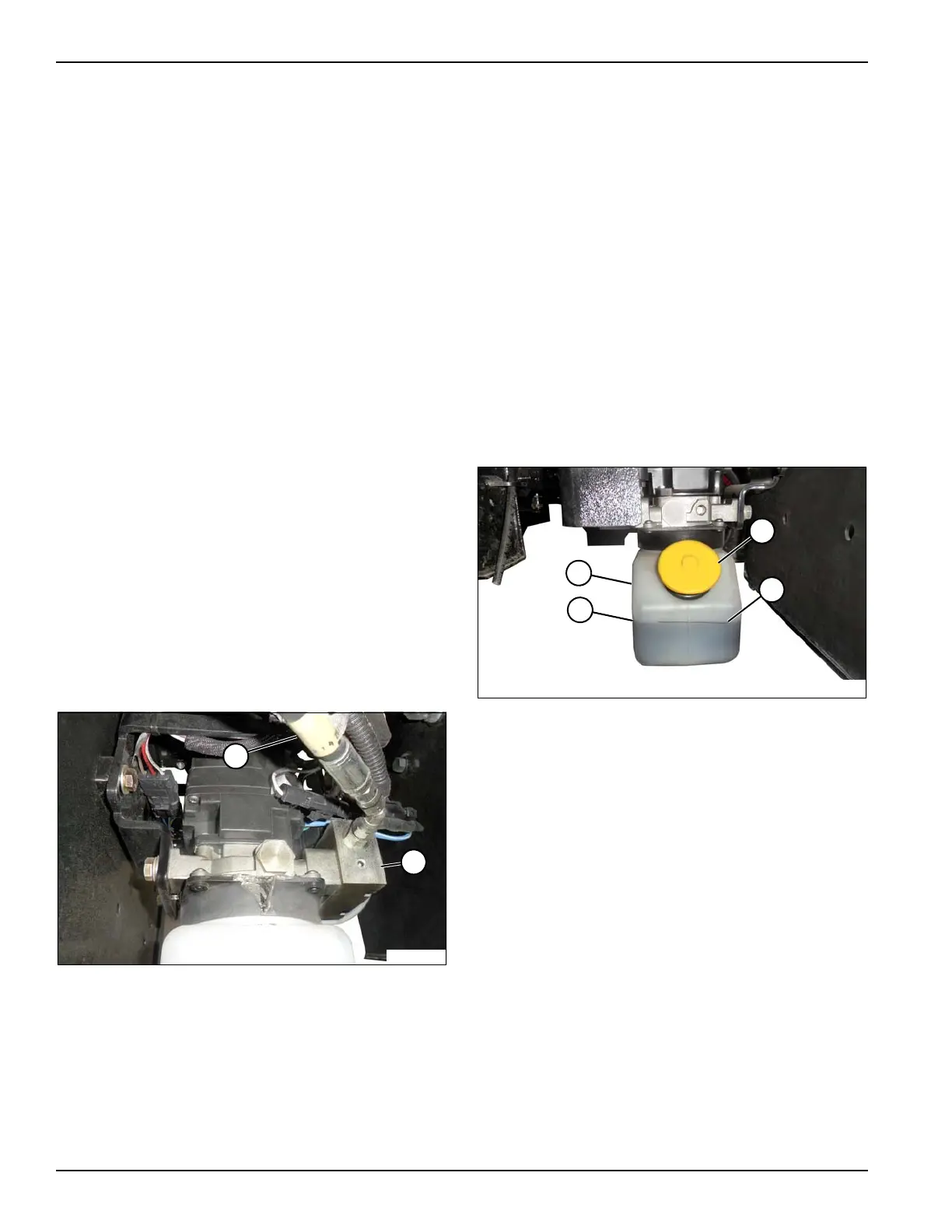

Figure 13-19: Cab Tilt Pump
4. Position a suitable container below the cab tilt
pump-to-cab tilt cylinder hydraulic line (1) at the rear
of the cab tilt pump (1).
5. Install identification tags and disconnect cab tilt
pump-to-cab tilt cylinder hydraulic line.
6. Allow cab tilt hydraulic fluid to drain.
7. Remove cab tilt pump if necessary. (See “CAB TILT
PUMP” on page 13-13.)
8. Drain cab tilt hydraulic fluid from cab tilt pump
reservoir.
9. Install cab tilt pump if necessary. (See “CAB TILT
PUMP” on page 13-13.)
10. Connect cab tilt pump-to-cab tilt cylinder hydraulic
line.
11. Fill cab tilt hydraulic fluid. (See “Cab Tilt Hydraulic
Fluid Filling” on page 13-12.)
Cab Tilt Hydraulic Fluid Filling
See Figure 13-20.
1. Park and prepare tractor for service. (See “Park
Tractor Safely” on page 1-3.)
2. Lower cab to fully down position.
Figure 13-20: Cab Tilt Reservoir
3. Remove reservoir cap (3).
4. Add oil to fill reservoir.
5. Compare actual fluid level (4) to applied level mark
(2) on the cab tilt reservoir (1).
6. Install the reservoir cap.
7. Tilt cab to verify proper operation.
1 Cab Tilt Pump-to-Cab Tilt
Cylinder Hydraulic Line
2Cab Tilt Pump
1 Cab Tilt Reservoir 3 Reservoir Cap
2 Applied Level Mark 4 Actual Fluid Level
