Adjustable Swing Gate
Installation and Use
Part #70910
INSTALLATION
Step 1

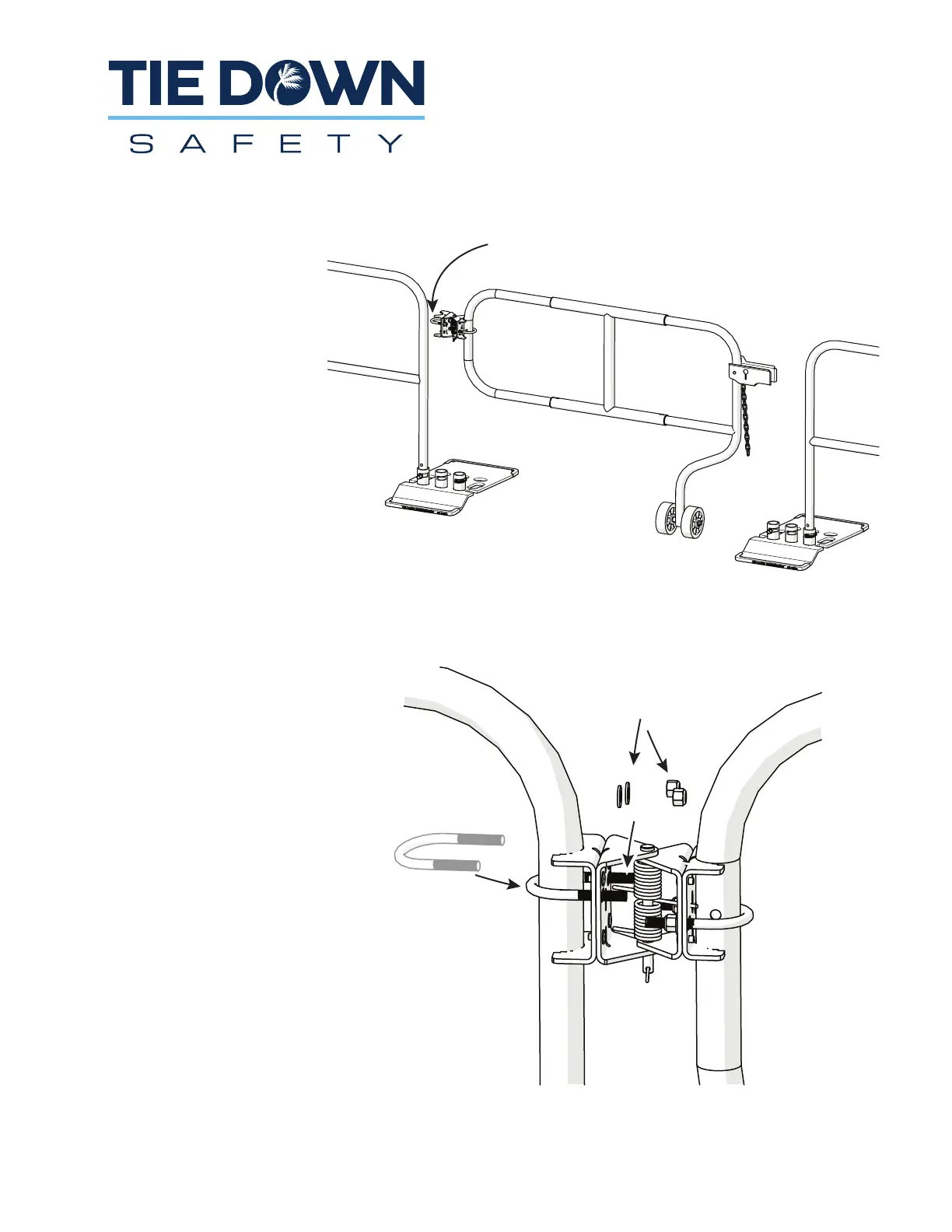

Position the Adjustable Swing Gate
between the desired guardrail opening.
Remove the outer u-bolt, washers, and
nylock nuts.
TIE DOWN Safety Products Division • 800-241-1806 • 404-344-0000 • www.tiedown.com
Step 2
Slide the Adjustable Swing Gate into desired
position. The open end of the swing hinge
should fit flush against the guardrail.
Place the u-bolt through the mounting holes
of the Swing Hinge by placing over the
inside of the guardrail. Secure the u-bolt
with the washers and nylock nuts.
Do not fully tighten the nylock nuts.
U-bolt passes over the inside
guardrail through the hinge.
Secure with washers and nuts
Remove u-bolt, nuts, and washers
