TIE DOWN 70910 - Step 3: Extending Wheeled Gate Section; Step 4: Securing Center Section and Hinge

Page 3 of 4
Adjustable Swing Gate
Installation and Use
Part #70910
TIE DOWN Safety Products Division • 800-241-1806 • 404-344-0000 • www.tiedown.com

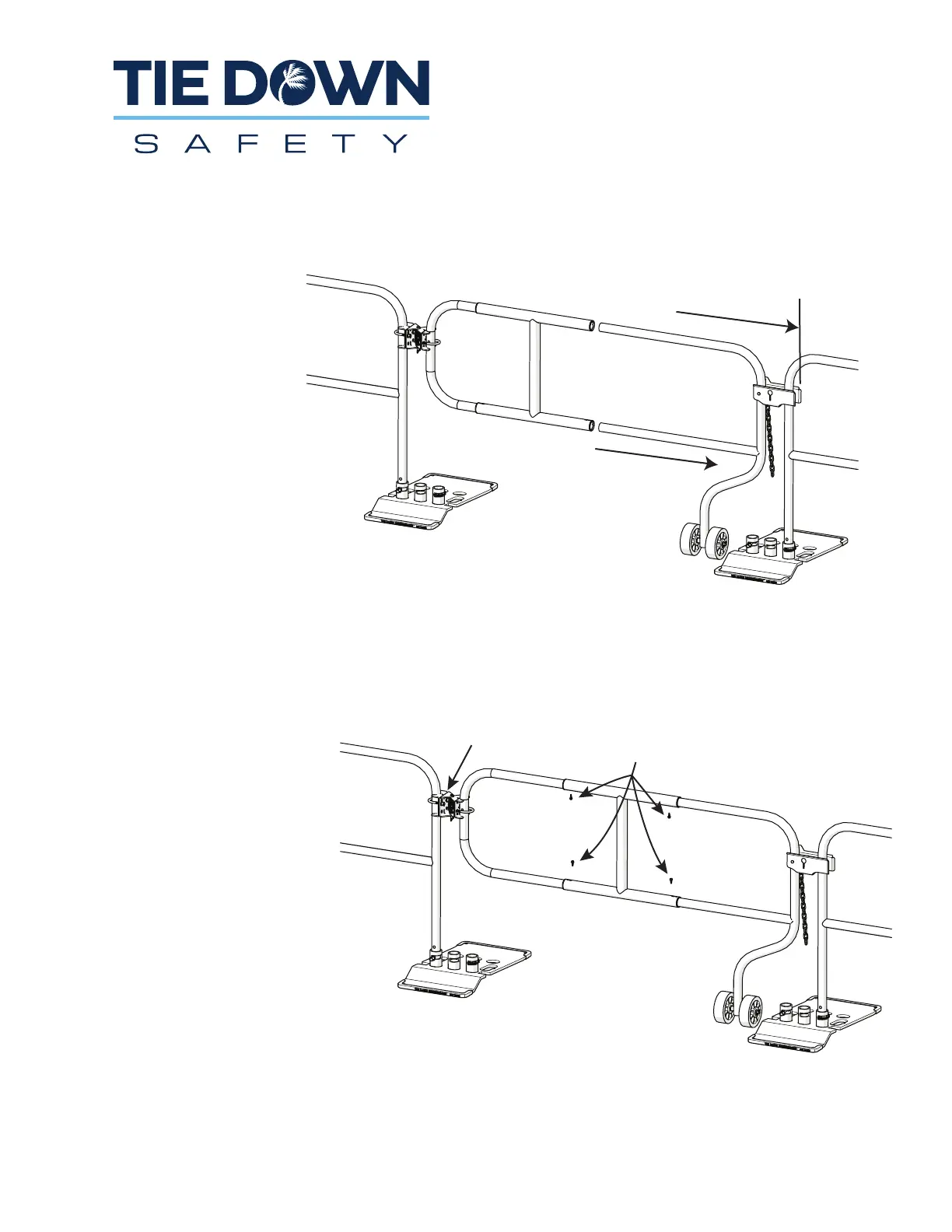

Step 3
Extend the Wheeled Gate Section
until it meets the other guardrail.
The Adjustable Swing Gate can be
adjusted 70” up to 85”.
Step 4
Position and slide the Center Adjustable
Swing Gate Section through the center of
the two guardrail end sections.
Make sure the Adjustable Swing Gate opens
and closes smoothly.
Secure the Center Adjustable Section with 4
self tapping screws, as shown to the right.
Mount the screws using the holes on the
inside of the Center Adjustable Section.
Tighten the nylock nuts on the Swing Gate
Hinge.
Self tapping screws (x4)
Tighten Swing Gate
Hinge with nylock
nuts
Slide outward until the
latch fits around the opposite
guardrail
