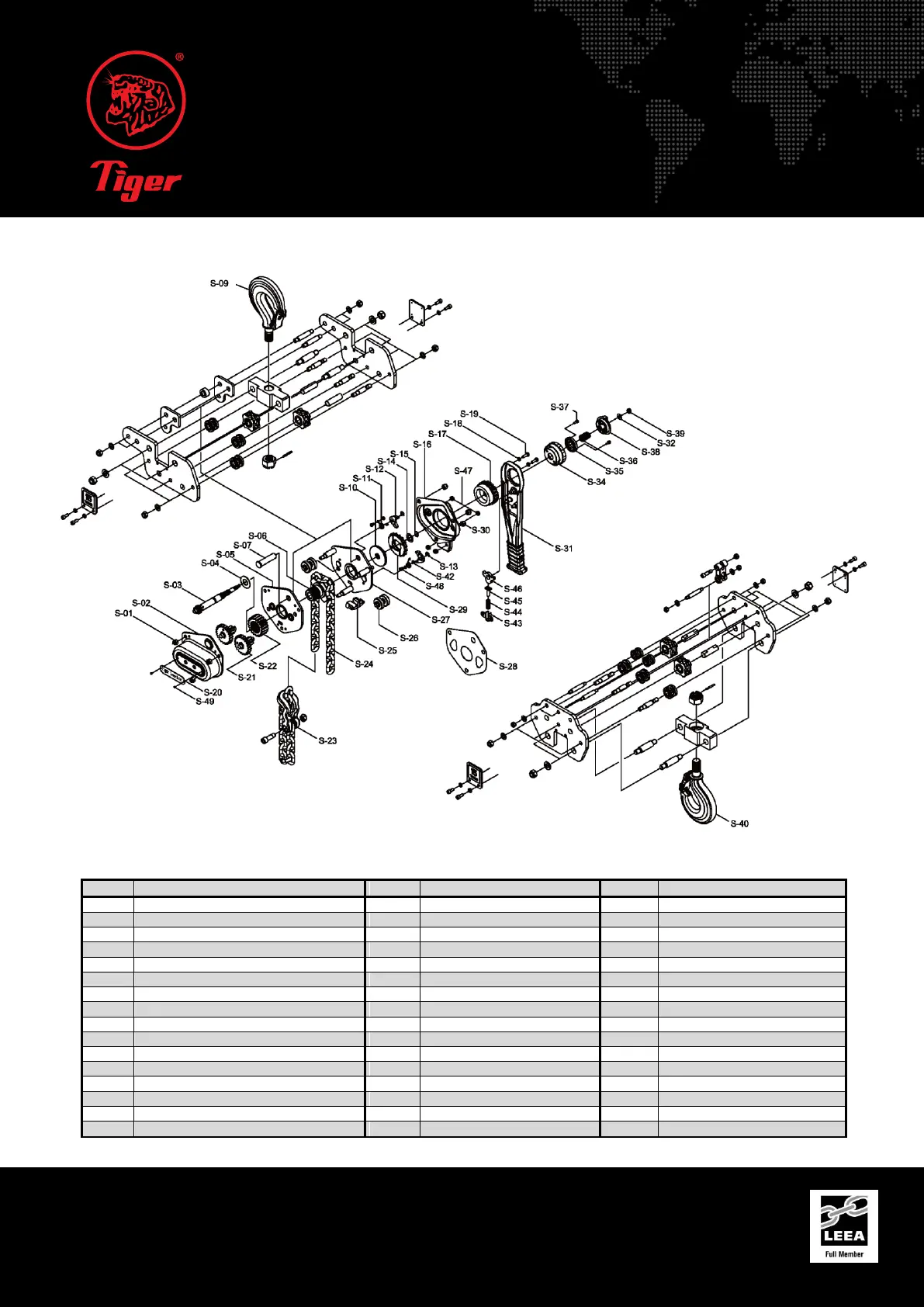

For 15t capacity units:
Part No.
Part Name
Part No.
Part Name
Part No.
Part Name
S-01
Nut for Gear Cover
S-18
Spring Washer
S-36
Retaining Spring
S-02
Gear Cover
S-19
Screw for Handle
S-37
Screw for Guide Plate
S-03
Pinion Shaft
S-20
Label
S-38
Switch Set for Free Wheel
S-04
Pinion Shaft Washer
S-21
Pinion Gear
S-39
Pinion Nut
S-05
Gear-side Plate
S-22
Load Gear
S-40
Bottom Hook Assembly
S-06
New Load Sheave
S-23
Travelling end stop
S-41
Bottom Hook Pin
S-07
Top Hook Pin*
S-25
Chain Stripper
S-42
Nut for Pawl Spring
S-08
Safety Latch Set
S-26
Load Chain Guide
S-43
Spring Stand
S-09
Top Hook Assembly
S-27
Wheel-side Plate Assembly
S-44
Pushing Up Spring
S-10
Disc Hub
S-28
Gasket
S-45
Pushing Up Pin
S-11
Pawl Spring
S-29
Ratchet Gear with Brake Disc
S-46
Change Pawl
S-12
Brake Pawl
S-30
Nut for Handle Cover
S-47
Nut for Brake Pawl Pin
S-14
Spring Disc
S-31
Handle Assembly
S-48
Screw for Pawl Spring
S-15
Snap Ring for Pinion Shaft
S-32
Washer
S-49
Screw for Label
S-16
Brake Cover with Handle Cover
S-34
Grip Ring
S-17
Change Gear
S-35
Guide Plate
