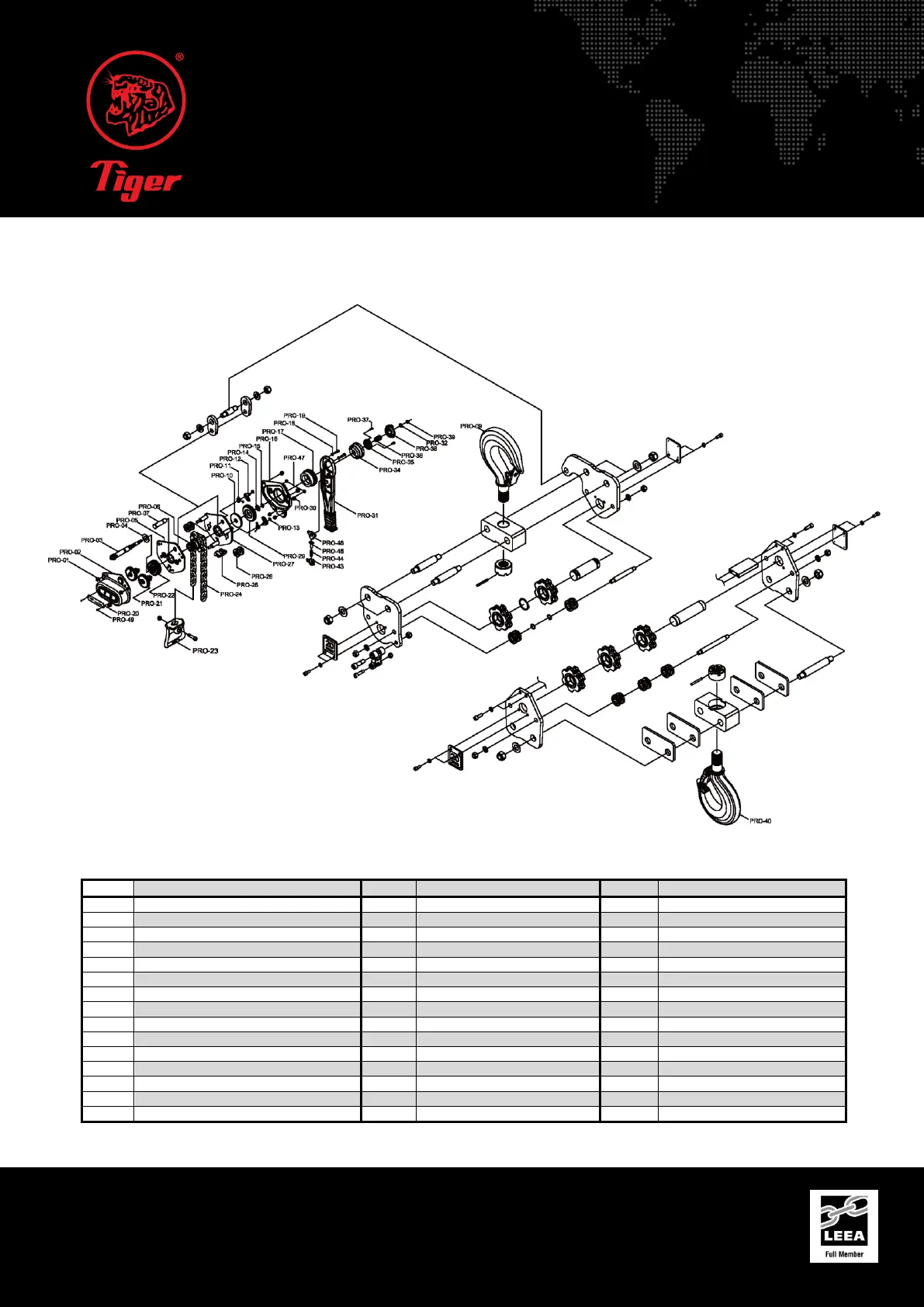

For 20t capacity units:
Part No.
Part Name
Part No.
Part Name
Part No.
Part Name
PRO-01
Nut for Gear Cover
PRO-17
Change Gear
PRO-35
Guide Plate
PRO-02
Gear Cover
PRO-18
Spring Washer
PRO-36
Retaining Spring
PRO-03
Pinion Shaft
PRO-19
Screw for Handle
PRO-37
Screw for Guide Plate
PRO-04
Pinion Shaft Washer
PRO-20
Label
PRO-38
Switch Set for Free Wheel
PRO-05
Gear-side Plate
PRO-21
Pinion Gear
PRO-39
Pinion Nut
PRO-06
New Load Sheave
PRO-22
Load Gear
PRO-40
Bottom Hook Assembly
PRO-07
Top Hook Pin*
PRO-23
End stop
PRO-41
Bottom Hook Pin
PRO-08
Safety Latch Set
PRO-25
New Chain Stripper
PRO-43
Spring Stand
PRO-09
Top Hook Assembly
PRO-26
Load Chain Guide
PRO-44
Pushing Up Spring
PRO-10
Disc Hub
PRO-27
Wheel-side Plate Assembly
PRO-45
Pushing Up Pin
PRO-11
Pawl Spring
PRO-29
Ratchet Gear with Brake Disc
PRO-46
Change Pawl
PRO-12
Brake Pawl
PRO-30
Nut for Handle Cover
PRO-47
Nut for Brake Pawl Pin
PRO-14
Spring Disc
PRO-31
Handle Assembly
PRO-49
Screw for Label
PRO-15
Snap Ring for Pinion Shaft
PRO-32
Washer
PRO-16
Brake Cover with Handle Cover
PRO-34
Grip Ring
