JOGGER/STROLLER ASSEMBLY CONT'D...
THE FOOT PLATE
YOUR FOOT PLATE
COMES WITH:
•
a wrench
•
spin tool
• 4 screws & lock nuts
•
plate fabric cover
(see diagram)

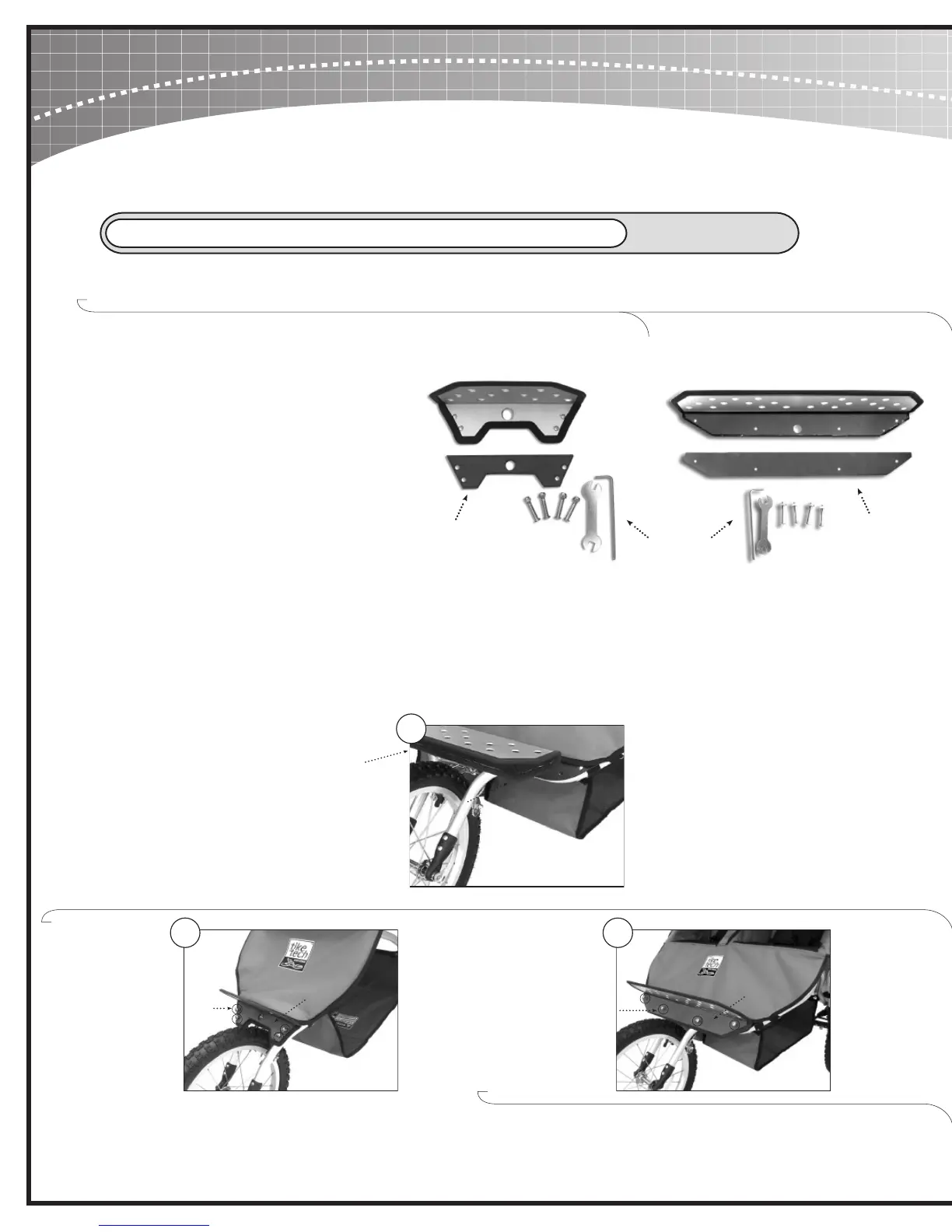

A) To start, lock the back brake (see page 5). Simply place the foot - plate over the front tire so that the four holes match. (see diagram)
B) Add the fabric cover over the foot- plate then place all four screws through the matching holes. (see diagram)
Add the lock nuts to the end of the screws behind the foot- plate. Place the spin tool end into the screw head. Use the wrench to prevent
the nut from spinning & tighten screws so that the foot - plate is now securely fastened.
plate fabric cover
plate fabric cover
spin tool
SINGLE
SINGLE
DOUBLE
DOUBLE
B
A
B
screws
add fabric cover
then screws
screws
add fabric cover
then screws
