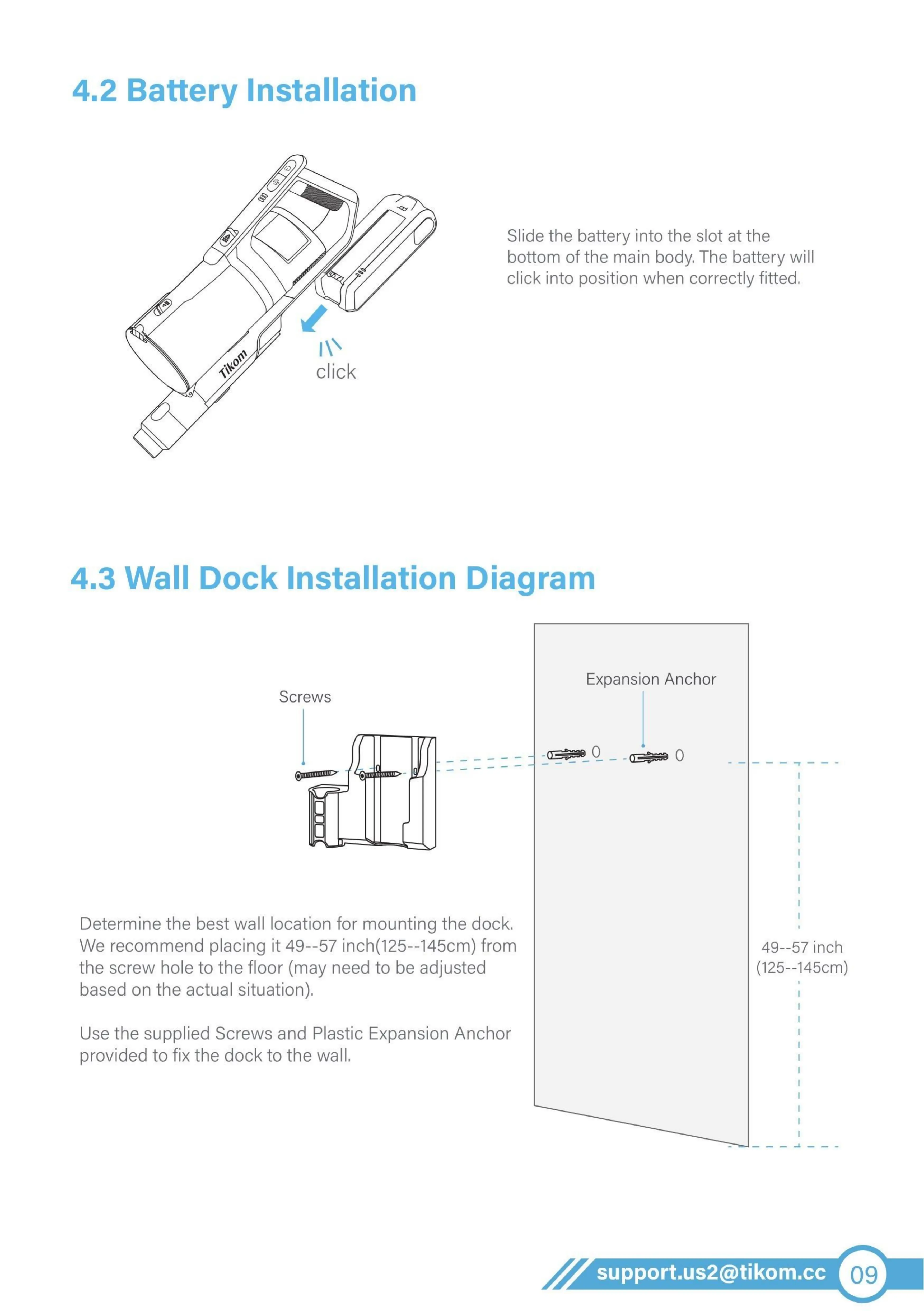

4.2 Battery Installation
click
Slide the battery into the slot at the
bottom of the main body The battery will
click into position when correctly fitted,
4.3 Wall Dock Installation Diagram
Expansion Anchor
Screws
Determine the best wall location for mounting the dock,
We recommend placing it 49--57 inch(125--145cm) from
the hole to the floor (rnay need to be adjusted
based on the actual situation).
Use the supplied Screws and Plastic Expansion Anchor
provided to fix the dock to the wall,
49--57 inch
(125--145cm)
