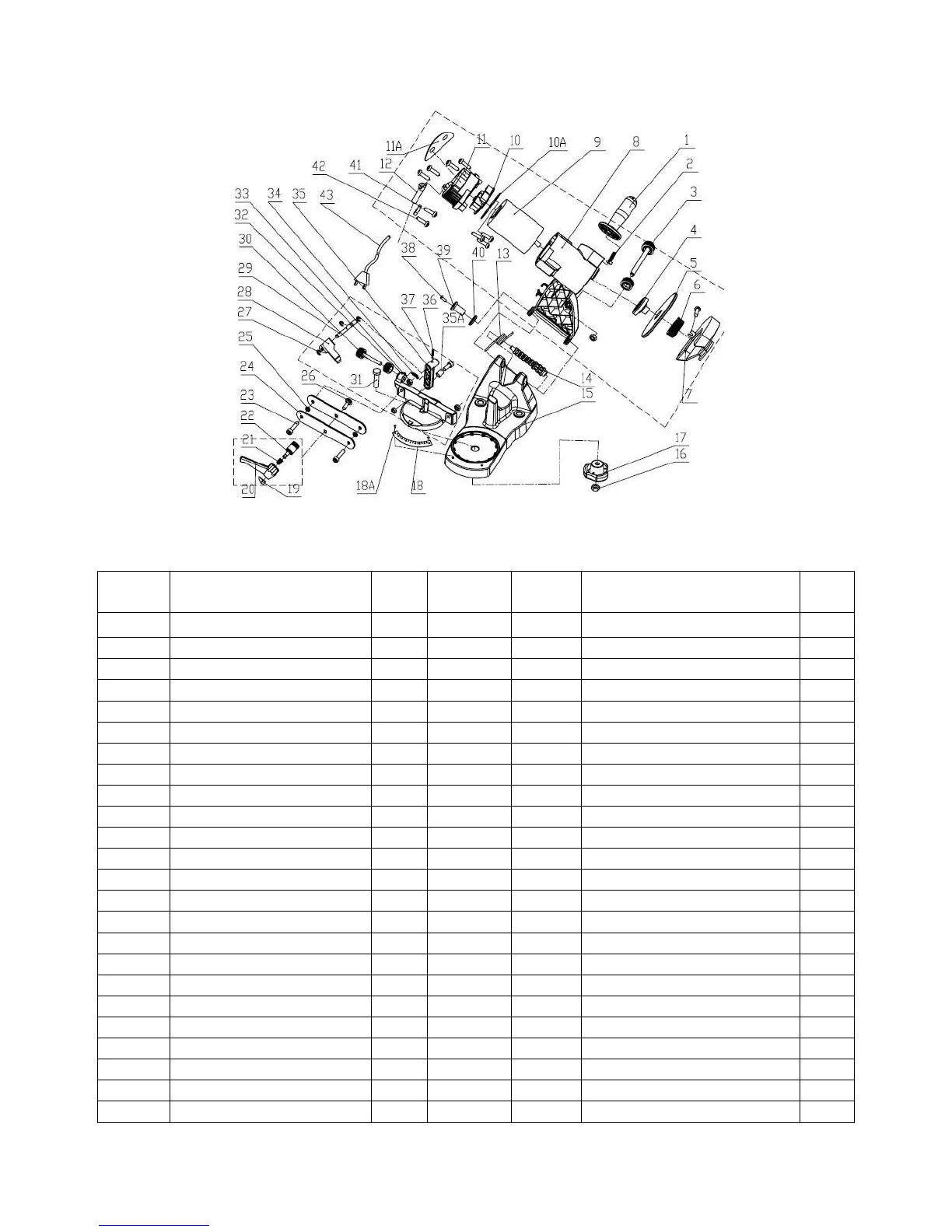

DIAGRAM & PARTS LIST
For replacement parts and technical questions, please call 1-952-938-5222.
Part
No.
Description Qty
Part
No.
Description Qty
1 Handle 1 22 Intermediate shaft 1
2 Coach bolt M6*20 1 23 Screw M6 x 22 3
3 Adjustment screw M8*80 1 24 Clip chain plate 2
4 Arbor flange 1 25 Spacer bush 2
5 Grinding wheel 1 26 Step bolt 1
6 Grinding wheel platen 1 27 Ring M5 3
7 Wheel cover 1 28 Limit board 1
8 Top Bracket 1 29 Limit lever 1
9 120V 80W DC machine 1 30 Adjustment screw M8 x 60 1
10 Circuit Board 1 31 Bolt M8 x 25 1
10A Motor distance piece 1 32 Top turntable 1
11 Switch cover 1 33 Nut M6 3
11A Label 1 34 Limit frame tension spring 11
12 Wire sheath 1 35 Limit frame 1
13 Torsional spring 1 35A Limit frame spacer bush 1
14 Middle bearing 1 36 Limit frame pressure spring 1
15 Bottom base 1 37 Steel ball 1
16 M8 nut 2 38 Screw M4 x 12 1
17 M8 hand wheel 1 39 Middle bearing Long sleeve 1
18 Angle labeling 1 40 Middle bearing short sleeve 1
18A Rivet 2 41 Wire clamp 1
19 Unlock button 1 42 Screw M3 x 10 10
20 Wrench 1 43 Plug 1
21 Compressed spring 1
