6
6. DELIVERY SET
1. Water heater – 1 pc.
2. Anchor bolt – 2 pcs.
3. Pressure safety valve – 1 pc.
4. Discharge pipe – 1 pc.
5. Operation manual – 1 pc.
6. Guarantee card – 1 pc.
7. Packing – 1 pc.
Fig. 4
1 – left composite protective cover
2 – water containing tanks
3 – system of flows between tanks (3 overflows)
4 – the upper part of the hot water intake tube
5 – heating element
6 – right composite protective cover
7 – temperature sensor case
8 – composite pressure safety valve (be sure to install onto the cold water
supply tube) Pos. A
9 – emergency discharge of surplus water pressure (a small water leakage
is possible from the emergency discharge hole when the water heater is
operating. It is normal)
10 – inlet nozzle with a splitter
11 – hot water outlet nozzle
12 – emergency water discharge nozzle (can be used for water discharge
during cleaning of the internal tank surface upon its maintenance and anode
replacement)
13 – protective magnesium anode
14 – urethane foam heat insulation layer
15 – external decorative case
16 – power cable with GFCI*
* Depending on the product batch, GFCI can be located not within the power cable electric plug.

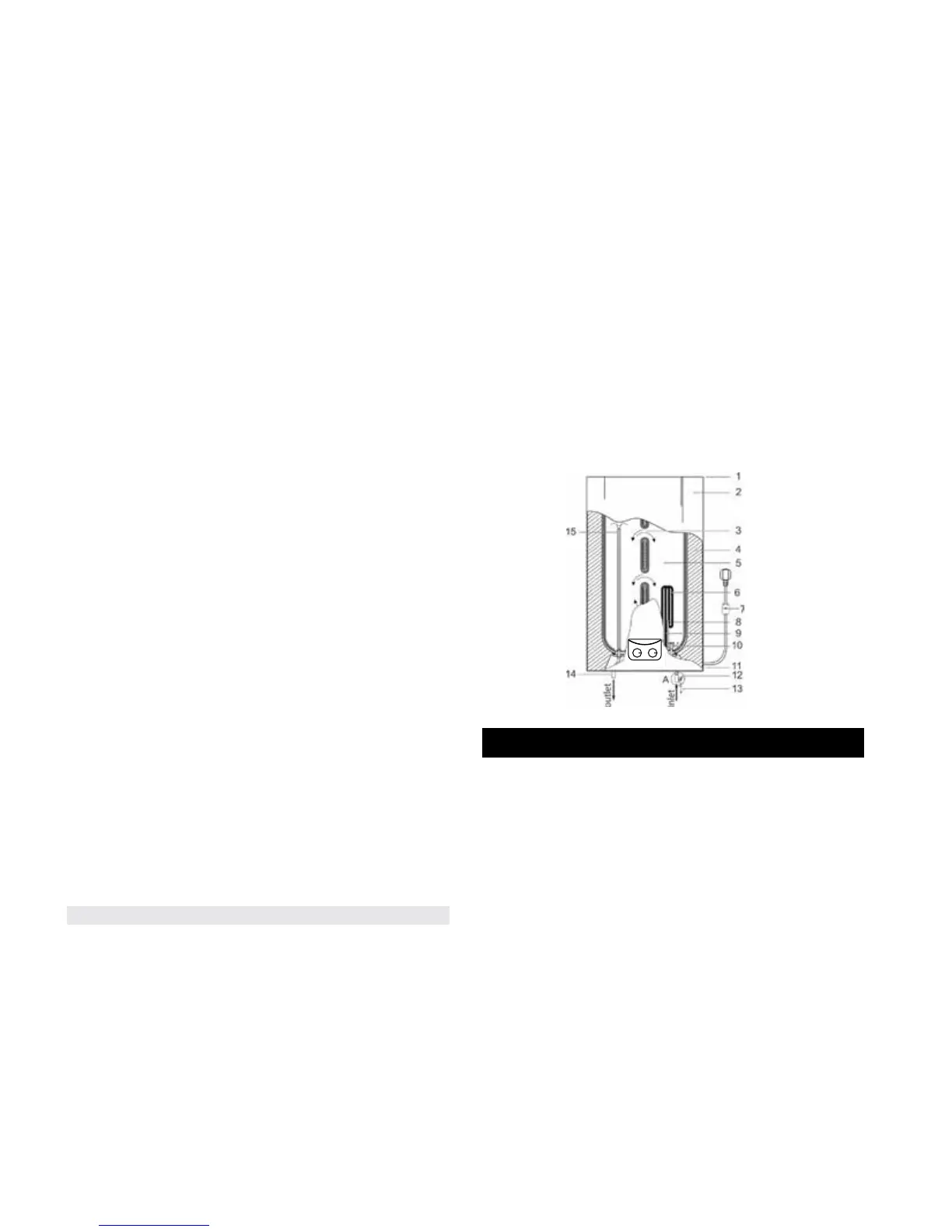

FSM1/FSQ1 series
1 – the upper composite protective cover
2 – external decorative case
3 – system of flows (3 overflows)
4 – urethane foam heat insulation layer
5 – internal tank
6 – heating element
7 – power cable with GFCI*
8 – thermostat sensor pipe
9 – protective magnesium anode
10 – inlet nozzle with a splitter
11 – the lower composite protective cover
12 – composite pressure safety valve (make sure to install onto the cold
water supply tube) Pos. A
13 – emergency discharge of surplus water pressure (a small water leakage
is possible from the emergency discharge hole when the water heater is
operating. It is normal)
14 – hot water outlet nozzle
15 – the upper part of the hot water intake tube
* Depending on the product batch, GFCI can be located not within the power cable electric plug.
